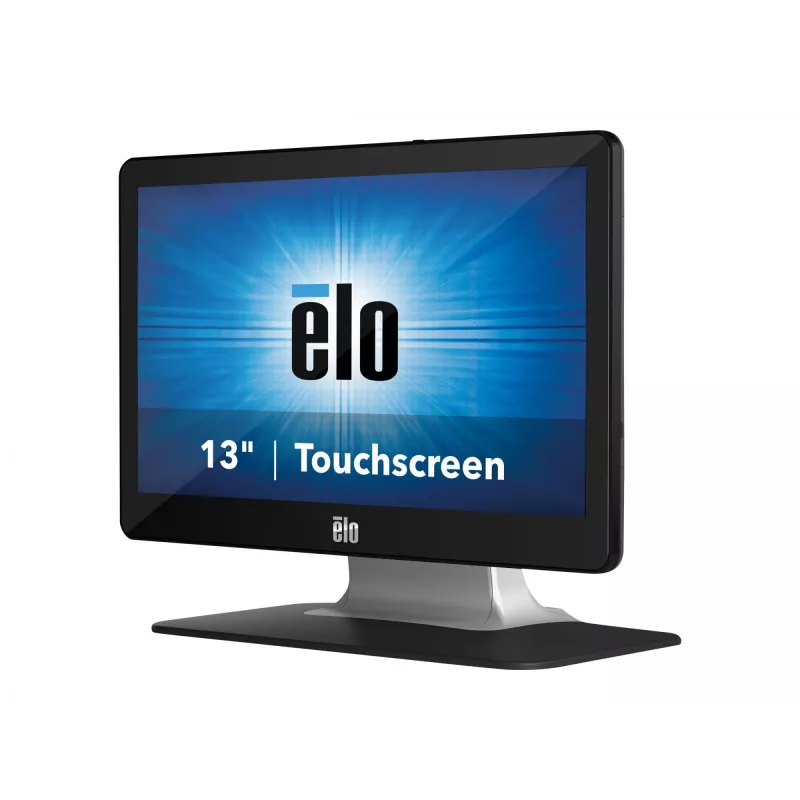

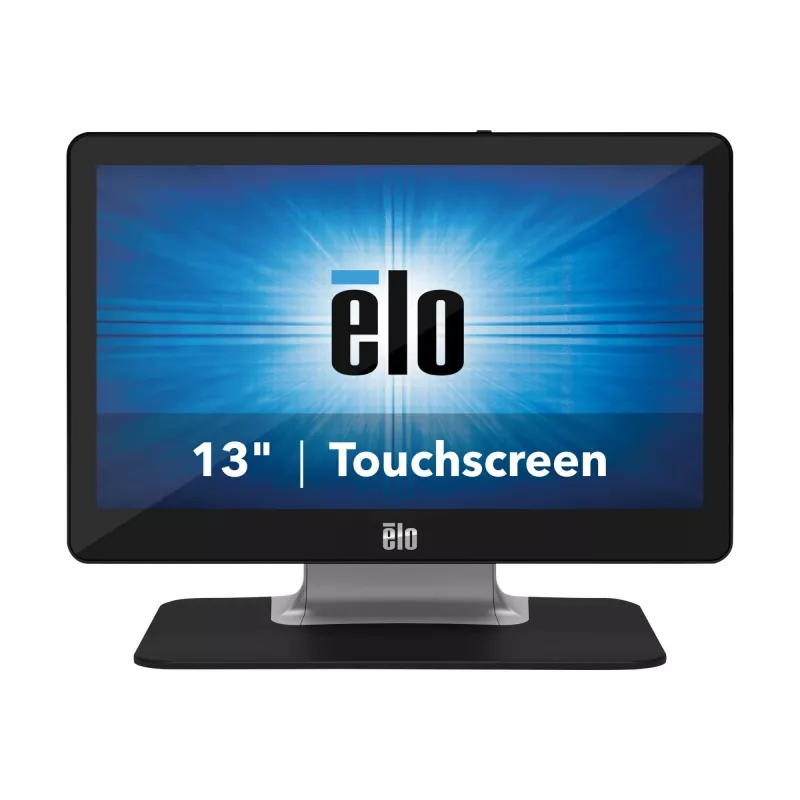

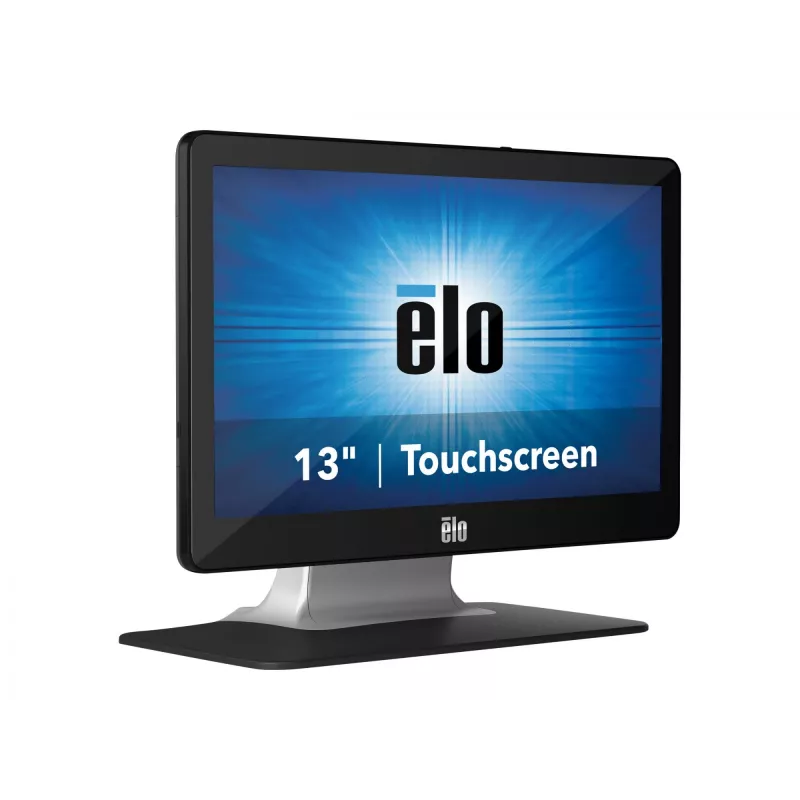

Monitor 1302L 13.3 inch FHD capacitive 10 no glare

The Elo 1302L Touchscreen Monitor is a compact 13.3" Full HD display with a 10-point projected capacitive (PCAP) touchscreen and an anti-glare surface. Designed for integration in retail and hospitality environments, it supports USB-C for single-cable touch, video and power, with alternative HDMI and VGA inputs. The monitor is available in black, offers VESA mounting, built-in speakers and a modern slim profile suitable for point-of-sale, self-service and customer-facing installations.

Advantages

The 1302L reduces installation complexity by offering a USB Type-C connection that delivers touch, video and power through a single cable while retaining HDMI and VGA compatibility for broader system support. Its 13.3" Full HD (1920 x 1080) LCD delivers clear images with an 800:1 contrast ratio and 16:9 aspect ratio, and the Elo TouchPro® PCAP surface supports up to 10 simultaneous touches for responsive interaction. The monitor is built for commercial use with VESA mounting options, integrated speakers and a durable design backed by a standard three-year warranty with optional extension.

Suitable for

• Point-of-sale terminals in retail environments
• Customer-facing displays for transaction review or promotions
• Self-service kiosks and restaurant ordering
• Price-check stations and signage with peripheral attachments

Key specifications

• Display diagonal: 13.3" (33.78 cm)
• Resolution: 1920 x 1080 (Full HD)
• Touch technology: 10-point projected capacitive (PCAP)
• Surface: anti-glare
• Connectivity: USB-C (touch/video/power), HDMI, VGA
• Contrast ratio (typical): 800:1
• Response time: 25 ms
• Aspect ratio: 16:9
• Mounting: VESA compatible
• Colour: Black
• Built-in speakers: Yes

How to use

Connect the monitor to a host device using a USB-C cable to carry touch, video and power through a single connection when supported by the host. If the host lacks USB-C, use the HDMI or VGA input for video and a separate USB connection for touch. Mount the display using the included stand or a compatible VESA mount, then configure display settings in the host operating system. Attach optional peripherals—such as EMV cradles, barcode scanners or MSR devices—to the monitor edge as required for your workflow.

Recommendations

For reliable operation in commercial environments, use USB-C when available to minimize cable clutter and simplify service. Choose a VESA mount or countertop stand based on your point-of-sale layout, and consider adding Elo Edge Connect peripherals (EMV cradle, barcode scanner, MSR) to support payments, scanning and customer interaction without external stands.
