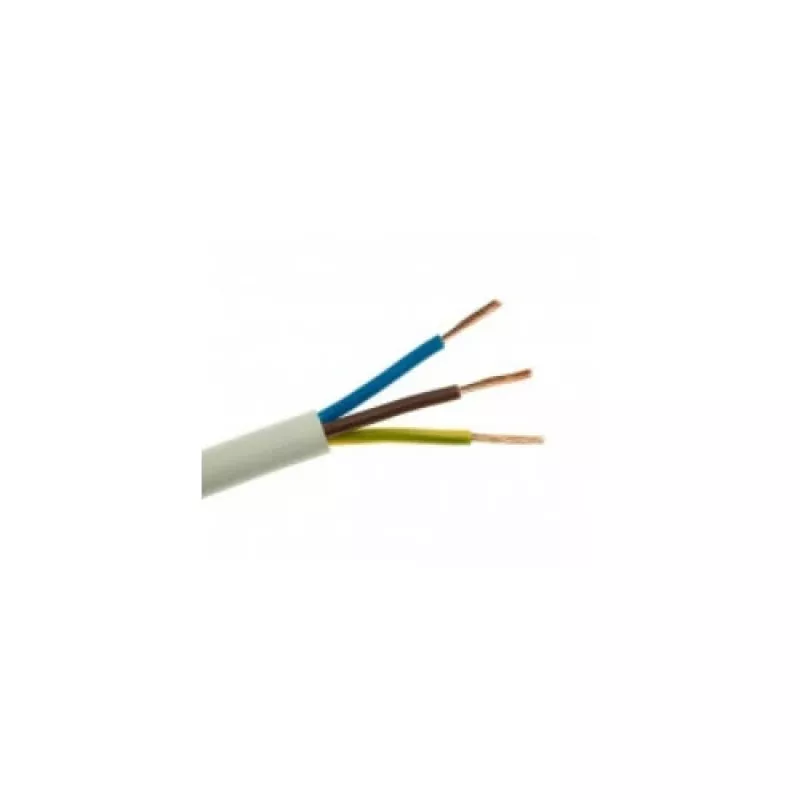

ELEKTROKABEL Stranded Electric Cable OMY 3x1mm2 300V 100m White

The ELEKTROKABEL Stranded Electric Cable OMY 3x1mm2 is a high-quality flexible cord designed for light domestic appliances, portable tools, and household use. With 3 cores of 1 mm² cross-section, it provides reliable power transmission up to 300/300V and a maximum current of 10A. The cable is made with electrolytic copper conductors (Class 5 stranded) and PVC insulation and sheath, ensuring durability and flexibility. It is flame retardant according to IEC 60332-1-2 and complies with PN-EN 50525-2-11. Supplied on a 100m reel, this cable is ideal for various electrical installations.

Advantages

Stranded copper conductors offer excellent flexibility for easy routing and installation. The PVC sheath provides good mechanical protection and resistance to abrasion. Flame retardant properties enhance safety in case of fire. The cable is suitable for indoor use and can withstand operating temperatures up to 70°C.

Suitable for

• Light domestic appliances (e.g., vacuum cleaners, washing machines)
• Portable tools (e.g., drills, saws)
• Household wiring extensions
• General purpose electrical connections

Key specifications

• Cable Type: OMY Flexible Cord (H03VV-F)
• Number of Cores: 3
• Conductor Cross-Section: 1 mm²
• Conductor Material: Electrolytic Copper (Stranded Class 5)
• Insulation: PVC
• Sheath: PVC
• Rated Voltage: 300/300 V
• Max. Operating Temperature: 70°C
• Min. Installation Temperature: -5°C
• Outer Diameter: Approx. 6.5 mm
• Sheath Colour: White
• Core Identification: Brown, Blue, Green/Yellow
• Length: 100 m
• Packaging: Reel
• Standards: PN-EN 50525-2-11
• Flame Retardant: Yes (IEC 60332-1-2)

Recommendations

For optimal performance, ensure the cable is not subjected to mechanical stress beyond its rated capacity. Avoid exposure to direct sunlight or extreme temperatures. Always follow local electrical codes and regulations during installation.
