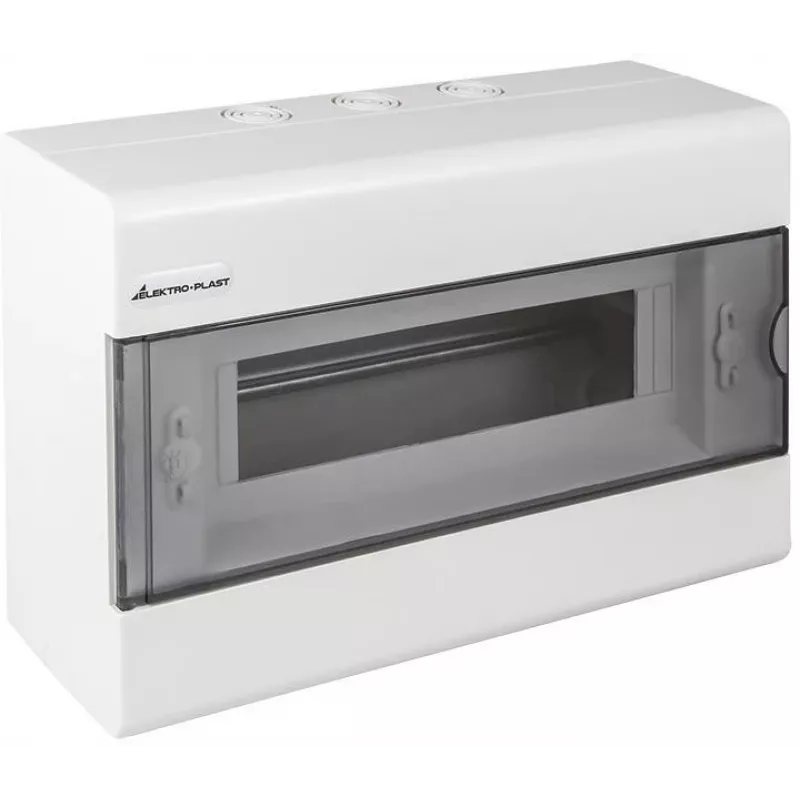

ELEKTRO-PLAST OPATÓWEK SRn-12 Surface-Mounted Distribution Board 12 Modules 1 Row IP40 Transparent Door

The ELEKTRO-PLAST OPATÓWEK SRn-12 is a high-quality surface-mounted distribution board designed for indoor electrical installations. With 12 module spaces in a single row, it provides ample capacity for circuit breakers, RCDs, and other modular devices. The enclosure is made of durable ABS plastic in white (RAL 9003) and features a transparent door for easy status inspection. It includes pre-installed neutral (N) and protective earth (PE) terminals, as well as a TH35 DIN rail. Rated IP40 and IK07, it offers protection against solid objects and mechanical impacts. Compliant with PN-EN 62208, it is suitable for residential and commercial applications.

Advantages

Easy installation with surface-mount design and included DIN rail. Transparent door allows quick visual checks without opening. Compact 12-module layout saves space. High impact resistance (IK07) ensures durability. Glow wire tested at 650°C for safety.

Suitable for

• Residential electrical distribution
• Small commercial installations
• Lighting and power circuits
• Renovation projects requiring surface mounting

Key specifications

• Mounting Type: Surface-mounted
• Number of Modules: 12
• Number of Rows: 1
• IP Protection Rating: IP40
• Material: ABS Plastic
• Colour: White (RAL 9003)
• Terminals: N and PE included
• Door Type: Transparent
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Operational Voltage (Ue): 230/400 V AC
• Glow Wire Test: 650 °C
• Impact Resistance: IK07
• Operating Temperature: -25°C to +60°C
• Standards: PN-EN 62208
• Protection Class: II (double insulation)
• DIN Rail: TH35 included
• Door Opening Angle: 180°

Recommendations

For optimal performance, use with modular devices rated for 230/400 V. Ensure proper earthing and neutral connections. Suitable for indoor use only.
