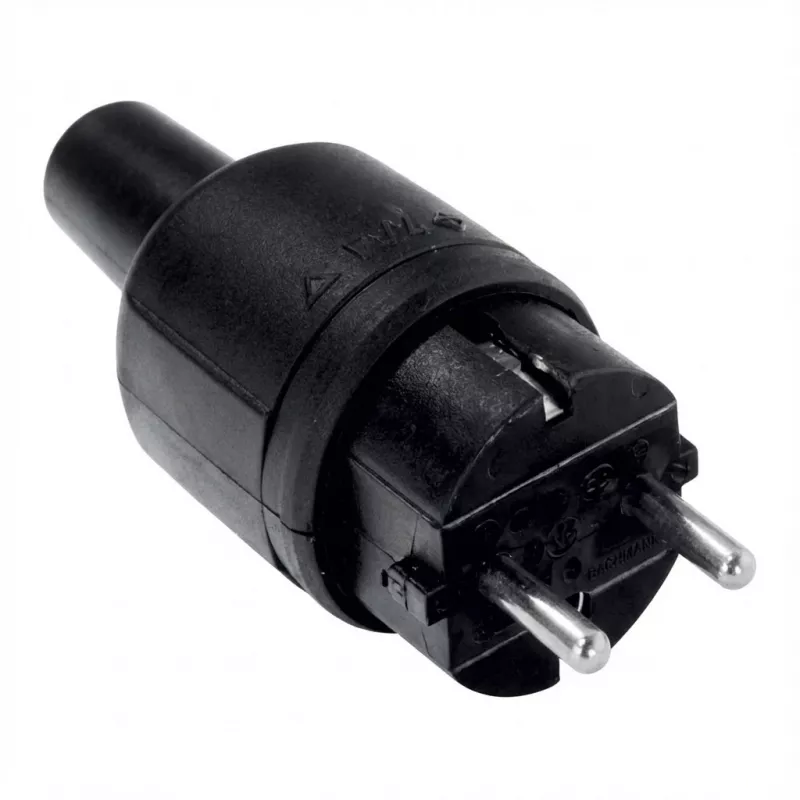

Electrical Power Plug Bachmann 913.171 Black

The Bachmann 913.171 Electrical Power Plug in black is a durable mains connector with a robust rubber housing and thermoplastic insert. It supports up to 250 V AC and 16 A, provides safe dual earthing and is compatible with electrical systems in France and Belgium. The plug includes a revolving strain relief suitable for various cable cross-sections, combining reliability and flexible cable management for general-purpose power connections.

Advantages

The thermoplastic insert with dual earthing increases contact safety and reduces the risk of electrical faults. The robust rubber housing improves mechanical durability and grip during insertion and removal. Revolving strain relief accommodates different cable diameters and reduces stress on the conductor terminations, extending service life.

Suitable for

• Power connections for appliances and equipment requiring 250 V, 16 A
• Installations in France and Belgium where compatible earthing is required
• Replacement or upgrade of standard mains plugs on flexible cables

Key specifications

• Brand: Bachmann
• Model / MPN: 913.171
• EAN: 4016514005574
• Rated voltage: 250 V AC
• Rated current: 16 A
• Housing: black rubber
• Insert: thermoplastic with dual earthing
• Feature: revolving strain relief for various cable cross-sections

How to use

Strip the cable to the recommended conductor lengths, open the housing and insert the conductors into the appropriate terminals following the earthing and phase markings. Secure the strain relief around the cable and close the housing. Ensure connections are tightened to the manufacturer's torque recommendations and verify correct wiring before applying mains voltage.

Recommendations

Use this plug only with cables and equipment rated for 250 V and 16 A. Inspect the plug and cable periodically for wear or damage and replace if insulation or contacts are compromised. When installing in France or Belgium, confirm local earthing and plug compatibility requirements.
