Electrical enclosure Rittal PK 9504.000 — polyamide/polycarbonate, 94×94×57 mm, IP66

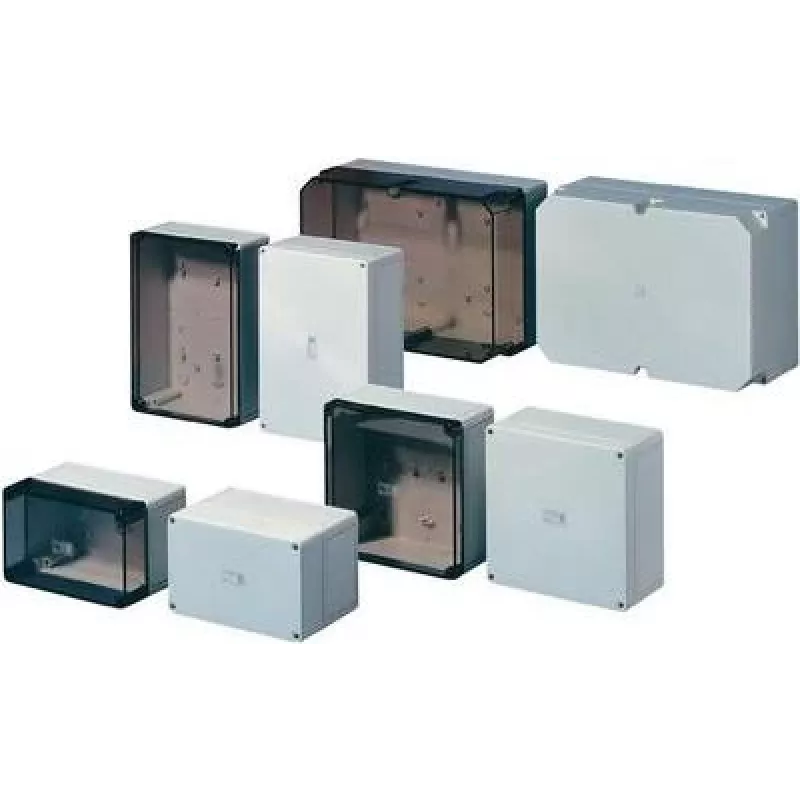

Rittal PK 9504.000 is a compact electrical enclosure constructed from fibre-glass reinforced polycarbonate with a choice of grey or transparent cover and polyamide base. With overall dimensions of 94 × 94 × 57 mm and an IP66 rating, the enclosure provides dust-tight and strong water-resistant protection for small control components, terminal blocks and miniature electronics in industrial and outdoor environments.

Advantages

The enclosure combines impact-resistant, flame-retardant materials with a compact footprint to protect sensitive components in confined spaces. Its IP66 rating ensures reliable protection against dust ingress and powerful water jets. The choice of a transparent cover allows visual inspection without opening the housing, while the grey version provides a discreet, uniform appearance. The robust construction and chemical-resistant materials support long service life in demanding conditions.

Suitable for

• Housing small control electronics and signal converters
• Protecting terminal blocks and connection points
• Use in outdoor installations, machine enclosures and field junctions
• Applications requiring visual inspection through a transparent cover

Key specifications

• Material: fibre-glass reinforced polycarbonate body and polyamide base
• Cover options: transparent or grey
• Protection rating: IP66 (dust-tight, protected against powerful water jets)
• External dimensions (W×H×D): 94 × 94 × 57 mm
• Suitable for mounting small PCBs, terminal strips and electronic modules
• Impact resistance and chemical resistance suitable for industrial environments

How to use

Select the enclosure version (transparent or grey cover) according to whether visual inspection without opening is required. Mount the enclosure on a flat surface or within a larger cabinet using appropriate screws and mounting hardware; ensure mounting does not compromise the sealing surfaces. Install internal components such as small printed circuit boards, terminal blocks or sensors using spacers or mounting brackets designed for the enclosure’s internal dimensions. Route cables through sealed cable glands or sealed entry points compatible with IP66 to maintain protection. After assembly, verify that the cover is correctly seated and fastened to preserve dust and water resistance.
