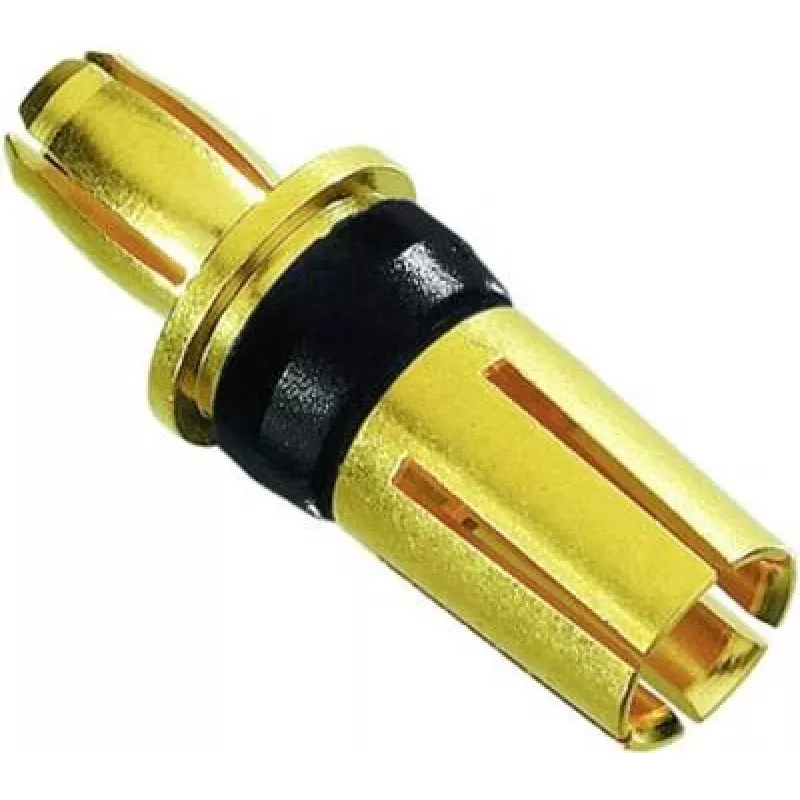

Electrical contact Harting 09030006250, single-piece insert contact for heavy-duty connector

Harting electrical contact model 09030006250 is a single-piece insert contact designed to serve as the conductive element within compatible heavy-duty and industrial connectors. Supplied as a single contact insert, it is intended for professional assembly and replacement in industrial connector housings where a durable electrical interface is required. The contact is suitable for use in machinery, automation equipment and installation environments that require standardized heavy-duty connector systems.

Advantages

The single-piece construction ensures consistent mechanical integrity and simplified installation compared with multi-part designs. Made to fit Harting heavy-duty connector families, the contact offers reliable conduction and stable electrical performance under typical industrial loads. Its design supports repeatable mating cycles and reduces the risk of intermittent connections when properly installed by trained technicians.

Suitable for

• Industrial machinery and production lines
• Automation controllers and servo systems
• Panel-to-panel or cable-to-equipment heavy-duty connections
• Repair and replacement of worn or damaged connector inserts

Key specifications

• Type: single-piece insert contact for heavy-duty connectors
• Application: power and signal transmission within industrial connector systems
• Compatibility: designed for use with corresponding Harting heavy-duty connector housings and insert modules
• Construction: one-piece metallic contact element suitable for crimping or assembly per manufacturer guidance
• Intended user: professional assemblers and technicians experienced with industrial connectors

How to use

Install the contact following the connector manufacturer's assembly instructions and using appropriate tooling for contact termination and insertion. Prepare the conductor according to the recommended strip length and termination method, terminate the conductor to the contact by crimping or other manufacturer-specified method, and insert the contact into the corresponding insert cavity until it locks into place. Verify correct seating and perform continuity and insulation tests as part of routine verification before placing the connector into service.

Recommendations

Use only tools and termination procedures recommended by Harting or approved suppliers. Ensure that mating connectors and housings are compatible with this single-piece insert contact and that environmental and electrical ratings of the assembled connector match the application requirements. Regularly inspect contacts for wear, corrosion or damage and replace contacts that no longer meet performance criteria.
