EFB U-DQ(ZN)BH OM1 8G (1x8) Dca 1750N LSZH Black 7.0mm Fiber Optic Cable

The EFB U-DQ(ZN)BH OM1 8G (1x8) Dca 1750N LSZH Black fiber optic cable is a high-quality universal indoor/outdoor loose tube cable designed for reliable data transmission. With 8 multimode fibers (62.5/125 µm) and a robust 1750 N tensile strength, it is ideal for backbone installations in data centers, campus networks, and industrial environments. The LSZH sheath ensures safety in confined spaces, while the Dca fire rating guarantees compliance with European standards.

Advantages

This cable offers excellent performance with low attenuation (≤3.5 dB/km @ 850 nm, ≤1.5 dB/km @ 1300 nm) and high bandwidth (≥200 MHz·km @ 850 nm, ≥500 MHz·km @ 1300 nm). The non-metallic strain relief using aramid yarn provides durability without compromising safety. Its halogen-free, flame-retardant design makes it suitable for use in public buildings and transportation systems.

Suitable for

• Indoor and outdoor fiber optic backbone cabling
• Data center interconnects
• LAN and WAN infrastructure
• Industrial networks requiring high tensile strength

Key specifications

• Fiber type: OM1 Multimode (62.5/125 µm)
• Number of fibers: 8 (1x8 configuration)

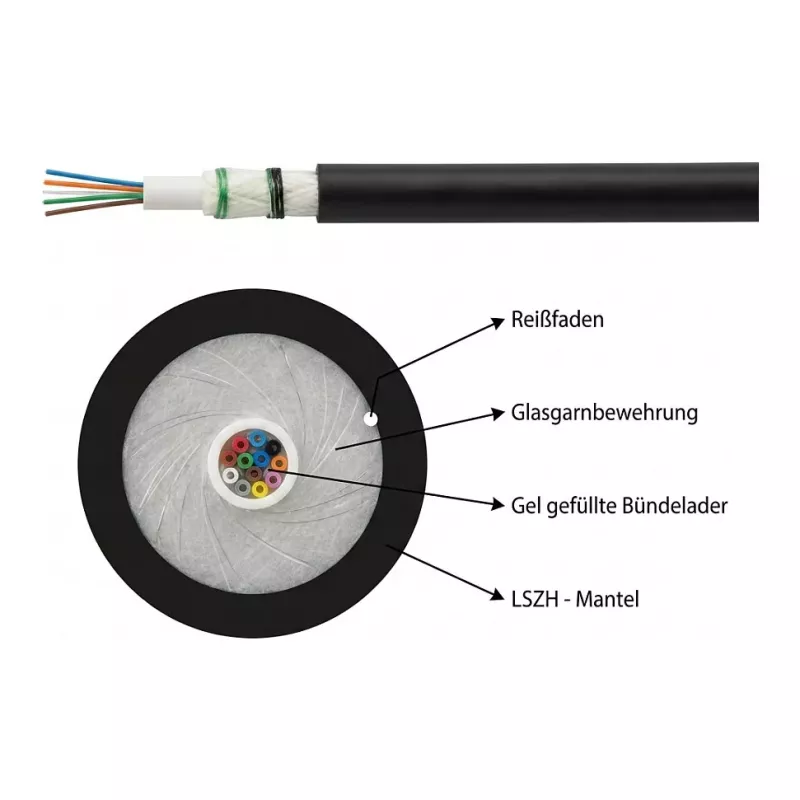

• Cable type: Universal (Indoor/Outdoor), Loose Tube
• Sheath material: LSZH (Low Smoke Zero Halogen), color black
• Tensile strength: 1750 N
• Fire rating: Euroclass Dca
• Attenuation: ≤3.5 dB/km @ 850 nm, ≤1.5 dB/km @ 1300 nm
• Bandwidth: ≥200 MHz·km @ 850 nm, ≥500 MHz·km @ 1300 nm
• Designation code: U-DQ(ZN)BH

Recommendations

For optimal performance, pair this cable with appropriate connectors (LC, SC, ST, or FC) and ensure proper installation by a certified technician. The cable is compatible with standard fiber optic patch panels and splice closures.
