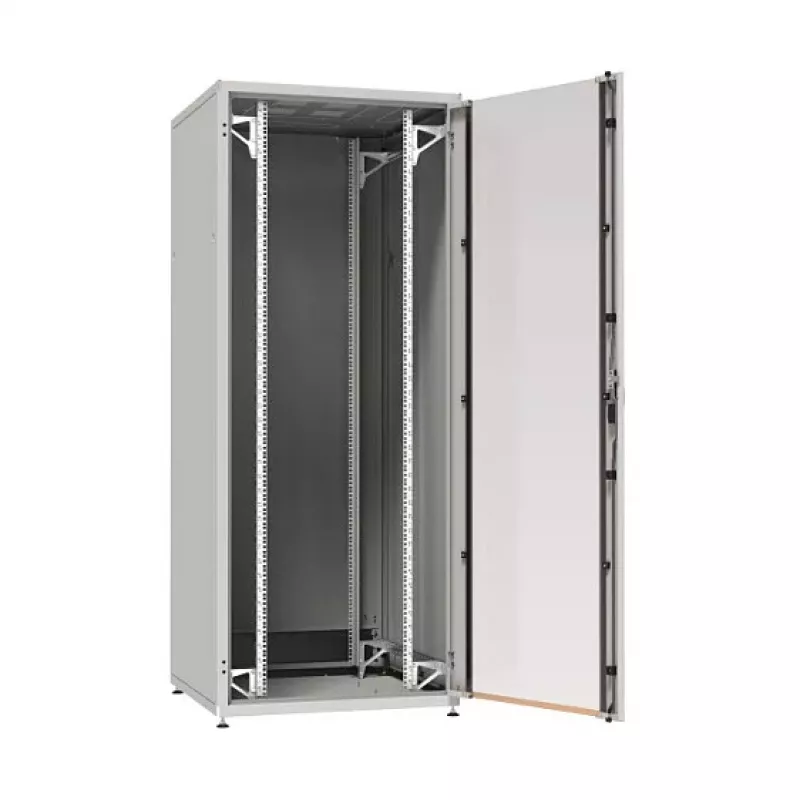

EFB PRO-4780GR.G1SV Network Cabinet 47U 800x1000mm Light Grey RAL 7035

The EFB PRO-4780GR.G1SV is a high-quality 19-inch network cabinet designed for professional data center and server room environments. With 47 rack units of space, it provides ample room for servers, switches, patch panels, and other network equipment. The cabinet is constructed from robust steel sheet and finished in light grey RAL 7035, offering a durable and neutral appearance that blends seamlessly into any technical environment.

Advantages

This network cabinet offers exceptional load capacity of up to 800 kg, ensuring reliable support for heavy equipment. The perforated front and rear doors (80% perforation) provide excellent airflow for passive cooling, while the cabinet is prepared for active ventilation units if needed. Removable and lockable side panels allow easy access for installation and maintenance. The depth-adjustable 19-inch mounting profiles offer flexibility for various equipment depths. Cable entry points at top and bottom with brush strips keep cables organized and prevent dust ingress.

Suitable for

• Data centers and server rooms requiring high-density equipment mounting
• Network infrastructure for enterprise, industrial, or telecommunications applications
• Installations needing a robust, secure, and ventilated enclosure for 19-inch rack-mountable devices

Key specifications

• Rack Units: 47U
• External Dimensions (HxWxD): 2186 x 800 x 1000 mm
• Usable Depth: Approx. 880 mm
• Color: Light Grey (RAL 7035)
• Material: Steel sheet
• Protection Class: IP20
• Static Load Capacity: 800 kg
• Front Door: Perforated steel door (80% perforation)
• Rear Door: Split perforated steel door (80% perforation)
• Side Panels: Removable, lockable
• Mounting Standard: 19-inch
• Mounting Profile Adjustment: Depth-adjustable

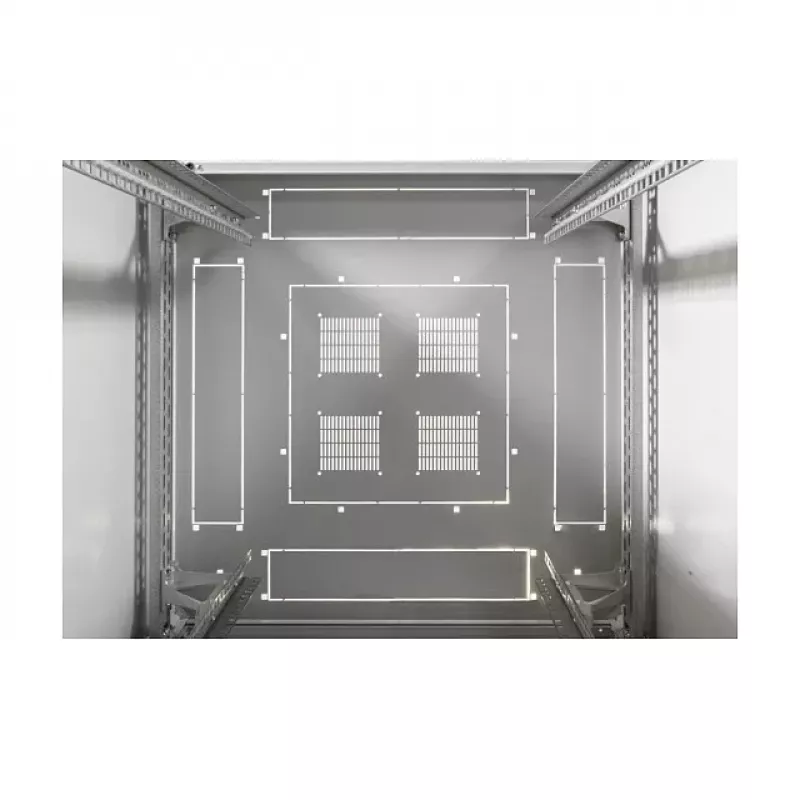

• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive ventilation, prepared for active ventilation units
• Included Accessories: 4x levelling feet, 4x castors, 2x keys for front/rear door, 2x keys for side panels, 20x cage nuts
• Assembly Status: Pre-assembled
• Compliance: RoHS, REACH

Recommendations

This network cabinet is ideal for professionals seeking a reliable and spacious enclosure for their 19-inch equipment. Its robust construction and high load capacity make it suitable for demanding environments. Ensure proper ventilation and cable management for optimal performance.
