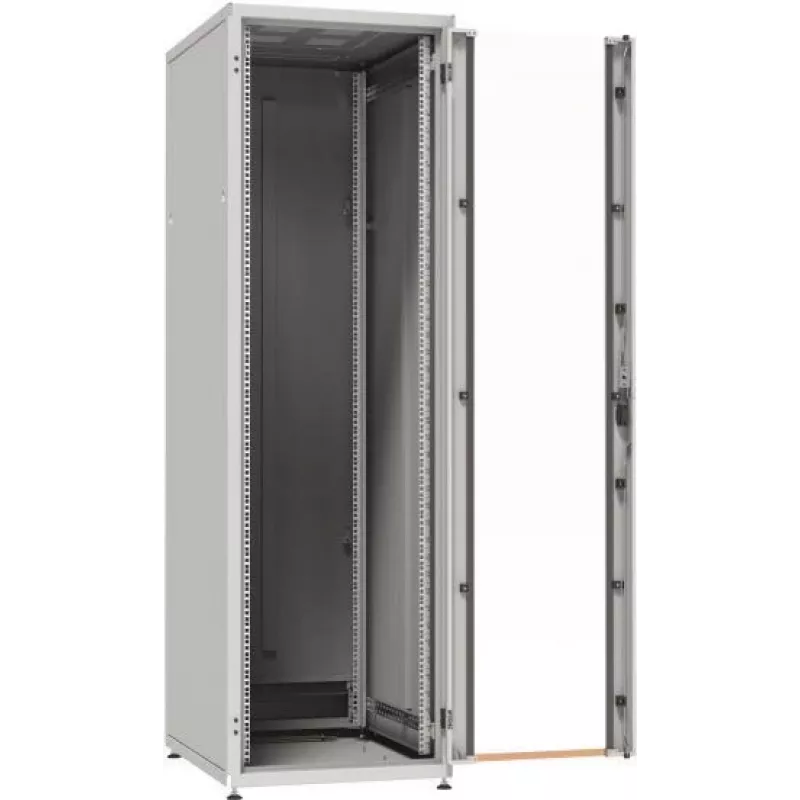

EFB PRO-4260GR.G1SV Network Cabinet 42U 600x1000mm Light Grey RAL 7035

The EFB PRO-4260GR.G1SV is a high-quality 19-inch network cabinet designed for professional data center and server room environments. With 42U of rack space, a width of 600 mm, and a depth of 1000 mm, this cabinet provides ample space for mounting servers, switches, and other network equipment. The cabinet is finished in light grey RAL 7035 and features a tempered glass front door, lockable steel rear door, and removable side panels for easy access. It comes pre-assembled with adjustable mounting rails, levelling feet, and castors, ensuring quick installation and flexibility. The cabinet supports a load capacity of up to 800 kg and includes cable entry at top and bottom. Ideal for network, server, and data center infrastructure.

Advantages

Robust steel construction with a load capacity of 800 kg ensures durability and reliability. The tempered glass front door allows for easy monitoring of equipment while maintaining security. Adjustable mounting rails provide flexibility for different equipment depths. Pre-assembled design saves time during installation. Lockable front, rear, and side panels enhance security. Levelling feet and castors included for easy positioning and stability.

Suitable for

• Data centers
• Server rooms
• Network closets
• IT infrastructure

Key specifications

• Rack Units: 42U
• Rack Width: 19 inch
• Cabinet Width: 600 mm
• Cabinet Depth: 1000 mm
• Cabinet Height: 2000 mm
• Color: RAL 7035 (Light Grey)
• Material: Steel
• Front Door: Tempered Glass
• Rear Door: Steel, Lockable
• Side Panels: Removable, Lockable
• Load Capacity: 800 kg
• Protection Rating: IP20
• Cable Entry: Top and Bottom
• Mounting Rails: Adjustable Depth
• Construction: Pre-assembled
• Security: Lockable Front, Rear, and Side Panels
• Ventilation: Passive (Fan unit options available)
• Feet/Castors: Levelling Feet and Castors included
• Compliance: RoHS, CE

Recommendations

For optimal airflow and cable management, consider using blanking panels and cable management accessories. This cabinet is suitable for most standard 19-inch rack-mountable equipment.
