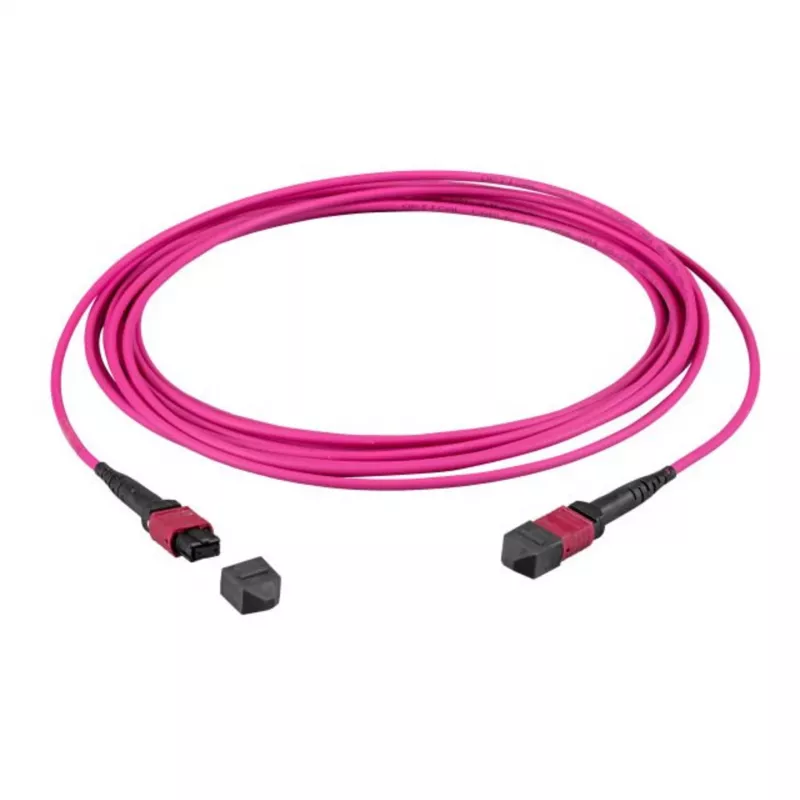

EFB Elektronik MTPF24MTPFOM4-10-A 10 m OM4 MTP to MTP Patch Cable

The EFB Elektronik MTPF24MTPFOM4-10-A is a high-performance OM4 multimode fiber optic patch cable, designed for reliable and high-speed data transmission in data centers and enterprise networks. With a length of 10 meters and MTP to MTP connectors, this cable supports 40/100 Gigabit Ethernet applications and is ideal for backbone cabling and high-density patching.

Advantages

This cable offers low insertion loss and high bandwidth, ensuring excellent signal integrity over long distances. The OM4 fiber type is optimized for laser-based transceivers, providing superior performance for 40G and 100G networks. The MTP connectors are pre-terminated and factory-tested, saving installation time and reducing errors.

Suitable for

• Data center backbone cabling
• High-density fiber patching
• 40/100 Gigabit Ethernet connections
• Storage area networks (SAN)
• Telecommunications rooms

Key specifications

• Connector type: MTP to MTP
• Fiber type: OM4 multimode
• Cable length: 10 m
• Wavelength: 850 nm optimized
• Insertion loss: ≤ 0.35 dB (typical)
• Return loss: ≥ 20 dB
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and ensure proper cable management to maintain bend radius. Ideal for high-speed network upgrades.
