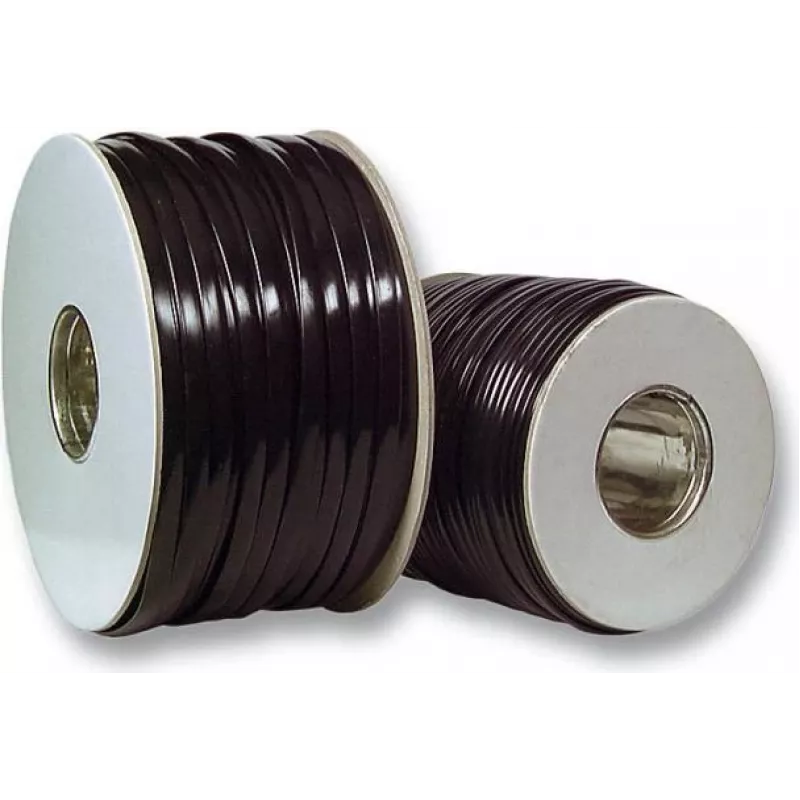

EFB Elektronik Modular Flat Cable 10-Conductor Black, Ring 100 m

The EFB Elektronik Modular Flat Cable 10-conductor black, ring 100 m is a high-quality, unshielded flat cable designed for modular wiring applications. With 10 tinned copper conductors, each with a cross-section of 0.14 mm², this cable offers reliable signal transmission and flexibility. The PVC insulation ensures durability and a wide operating temperature range from -20°C to +70°C. The cable is supplied in a convenient 100-meter ring, making it ideal for custom-length installations in control cabinets, industrial automation, and telecommunications.

Advantages

This flat cable saves space and simplifies routing in tight enclosures. The tinned copper conductors provide excellent corrosion resistance and solderability. The 300 V voltage rating makes it suitable for low-voltage control systems. RoHS compliance ensures environmental safety.

Suitable for

• Control cabinet wiring
• Industrial automation systems
• Telecommunication equipment
• Modular connector assemblies

Key specifications

• Cable type: Flat cable
• Number of conductors: 10
• Conductor cross-section: 0.14 mm²
• Conductor material: Tinned copper
• Insulation material: PVC
• Colour: Black
• Length: 100 m
• Packaging: Ring / Coil
• Outer dimensions (W x H): 10.0 x 2.0 mm
• Voltage rating: 300 V
• Operating temperature range: -20°C to +70°C
• Shielding: Unshielded
• RoHS compliant: Yes

Recommendations

For optimal performance, use with compatible modular connectors and ensure proper strain relief. Store in a dry environment within the specified temperature range.
