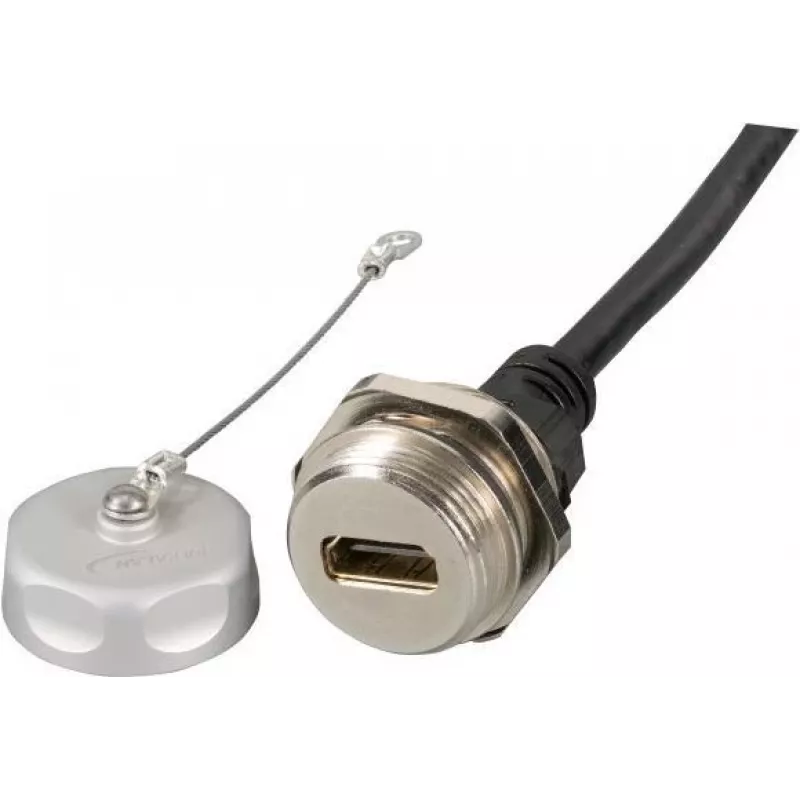

EFB-Elektronik IP67 HDMI Panel Mount Connector, M25, Female to Male, 1.0m

The EFB-Elektronik IP67EBHDMIA-A1,0FL is a robust HDMI panel mount connector designed for industrial and outdoor applications. Featuring an M25 threaded mounting system, this pass-through connector provides a reliable HDMI Type A female interface on the external side and a male connector on the internal cable end, with an integrated 1.0 meter cable. Its IP67 rating ensures dust-tight and waterproof protection, making it ideal for harsh environments.

Advantages

This connector offers a secure and weatherproof HDMI connection for panel installations. The M25 screw-in mounting simplifies installation, while the integrated cable eliminates the need for additional wiring. The IP67 protection guarantees reliable performance in dusty, wet, or extreme conditions.

Suitable for

• Industrial automation and control systems
• Outdoor digital signage and displays
• Marine and transportation electronics
• Security camera and surveillance systems
• Any application requiring a rugged, waterproof HDMI interface

Key specifications

• Product Type: HDMI Panel Mount Connector
• Connector 1 (External): HDMI Type A Female
• Connector 2 (Internal/Cable End): HDMI Type A Male
• Cable Length: 1.0 m
• Mounting Thread Size: M25
• IP Protection Class: IP67
• Interface Standard: HDMI
• Connector Gender (External): Female
• Connector Gender (Internal): Male
• Mounting Method: Screw-in (M25)
• Environmental Resistance: Dustproof, Waterproof
• Application Environment: Industrial, Outdoor, Harsh Environments
• Connection Type: Pass-through with Integrated Cable
• Signal Type: Digital Video and Audio
• Series: EFB-Elektronik IP67 Einbaubuchse Series

Recommendations

For optimal performance, ensure the mounting surface is clean and the M25 nut is tightened to the recommended torque. This connector is not designed for frequent mating cycles; use it for semi-permanent installations.
