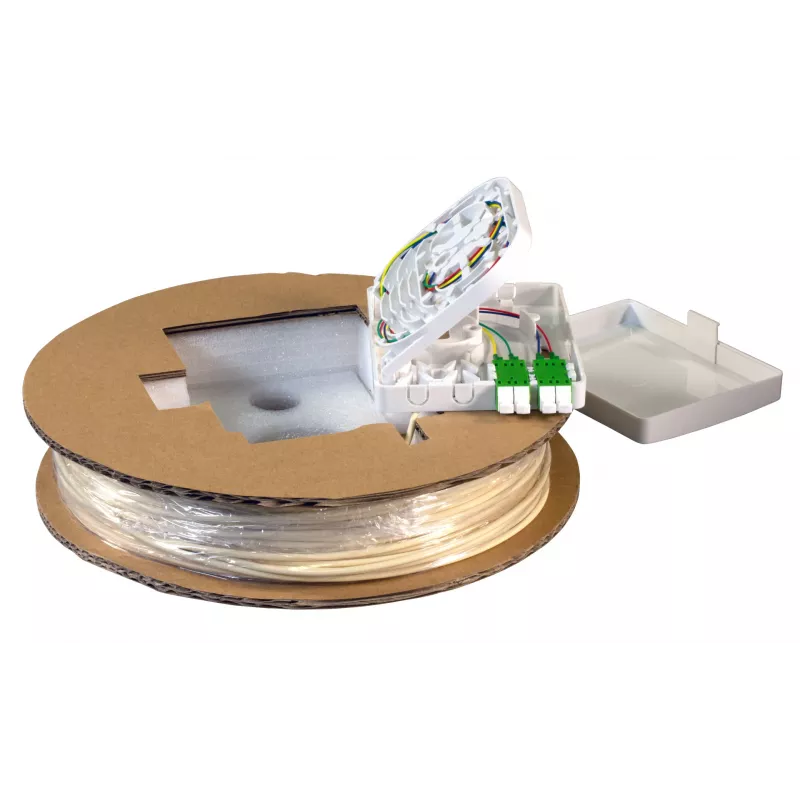

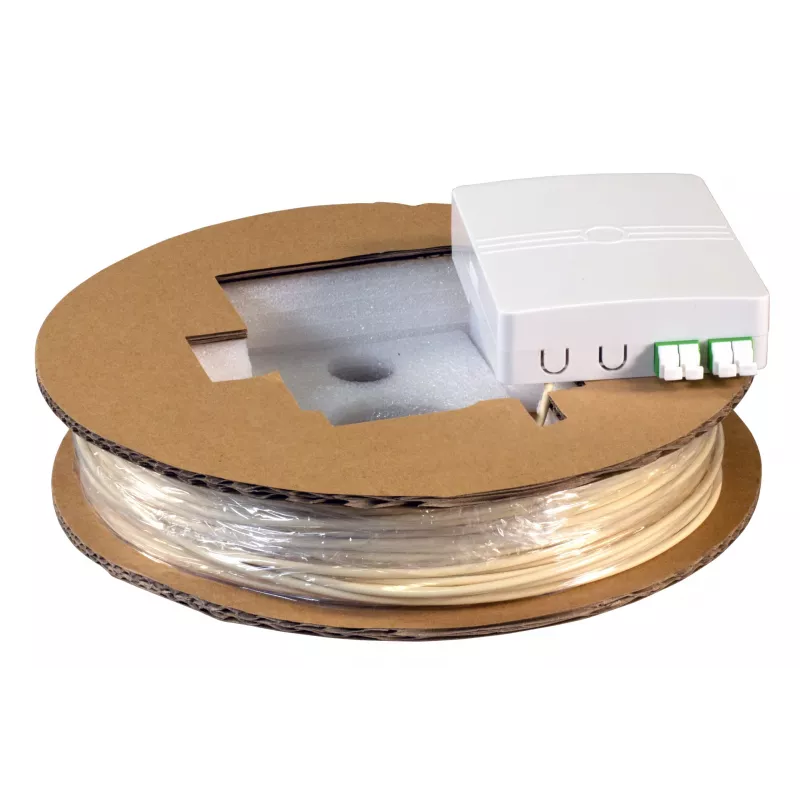

EFB Elektronik FTTX Compact Box Pre-assembled, 2xLC/APC Duplex, G.657.A2, 30m

The EFB Elektronik FTTX Compact Box is a pre-assembled fiber optic termination box designed for FTTX applications. It comes with a 30-meter pre-terminated single-mode cable with G.657.A2 bend-insensitive fiber and 2xLC/APC duplex connectors, ensuring reliable and high-performance connections for indoor and outdoor use.

Advantages

This compact box simplifies installation by eliminating the need for field termination and splicing. The pre-assembled design saves time and reduces the risk of errors. With IP54 protection, it is suitable for both indoor and outdoor environments. The bend-insensitive fiber allows for tight bends without signal loss, making it ideal for space-constrained installations.

Suitable for

• FTTX (Fiber to the Home, Building, Curb) networks
• Indoor and outdoor wall-mounted installations
• Last-mile fiber connectivity
• Applications requiring quick and reliable fiber termination

Key specifications

• Product Type: Fiber Optic Termination Box
• Pre-terminated: Yes
• Connector Type: LC/APC Duplex
• Number of Duplex Ports: 2
• Number of Fibers: 4
• Fiber Type: Single-mode G.657.A2 (Bend-Insensitive)
• Pre-assembled Cable Length: 30 m
• Ingress Protection (IP) Rating: IP54
• Mounting Type: Wall Mount
• Housing Material: Plastic (ABS)
• Application: FTTX, Indoor/Outdoor
• Color: White
• Splice Capacity: Up to 4 fusion splices
• Cable Entry Points: Multiple (e.g., bottom, rear)
• Insertion Loss (Connectors): < 0.3 dB
• Return Loss (Connectors): > 60 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure proper cable management and avoid exceeding the bend radius of the fiber. This product is ideal for network installers and telecom professionals seeking a reliable, pre-terminated solution for FTTX deployments.
