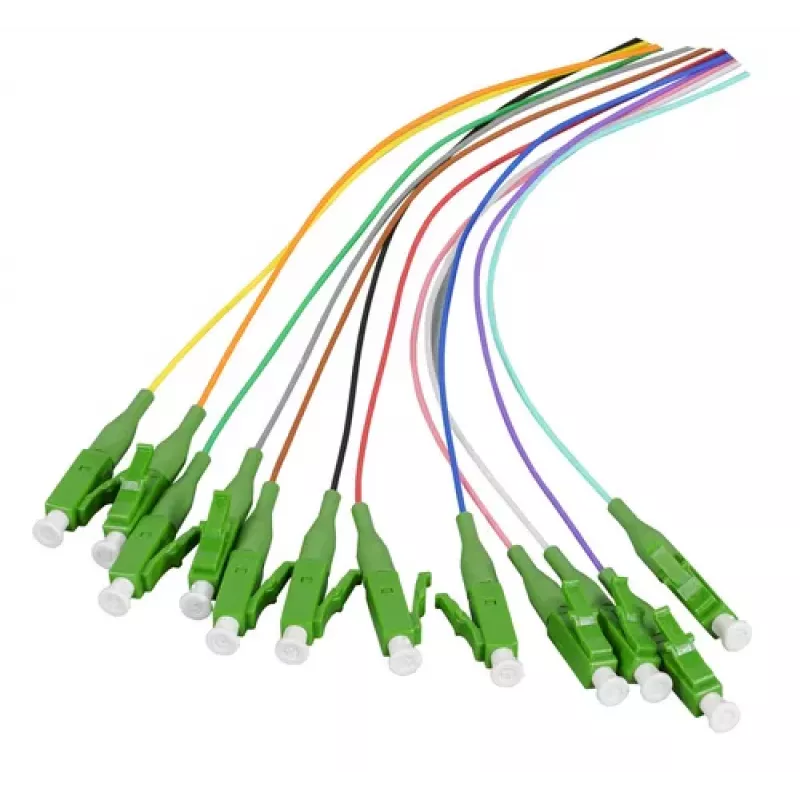

EFB Elektronik Fiber Pigtail LC-APC 9/125 µm OS2, 12-Color Set, 2m

The EFB Elektronik Fiber Pigtail LC-APC 9/125 µm OS2, 12-Color Set, 2m is a high-quality single-mode fiber optic pigtail set designed for reliable and efficient network connections. Each pigtail features an LC-APC connector on one end and bare fiber on the other, with a 900 µm tight buffer and LSZH jacket. This set includes 12 pigtails in different colors for easy identification, making it ideal for data centers, telecommunications, FTTx, and LAN applications.

Advantages

Precision-engineered for low insertion loss (≤0.3 dB) and high return loss (≥60 dB), ensuring excellent signal integrity. The color-coded design simplifies fiber management and reduces installation errors. Compliant with RoHS, REACH, and TIA/EIA-568-C.3 standards, guaranteeing environmental and performance reliability.

Suitable for

• Data centers requiring high-density fiber connections
• Telecommunications networks for long-haul and metro applications
• FTTx deployments for fiber-to-the-home/building/curb
• Local area networks (LAN) with single-mode infrastructure

Key specifications

• Fiber Type: Single-Mode OS2
• Core/Cladding: 9/125 µm
• Connector: LC-APC
• Number of Fibers: 12 (set)
• Length: 2 m
• Buffer Diameter: 900 µm
• Jacket Material: LSZH
• Jacket Colors: 12 different colors
• Polish: APC
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Attenuation @ 1310nm: 0.35 dB/km
• Attenuation @ 1550nm: 0.25 dB/km

Recommendations

For optimal performance, use with LC-APC adapters and ensure proper cleaning before installation. Store in a clean, dry environment within the specified temperature range.
