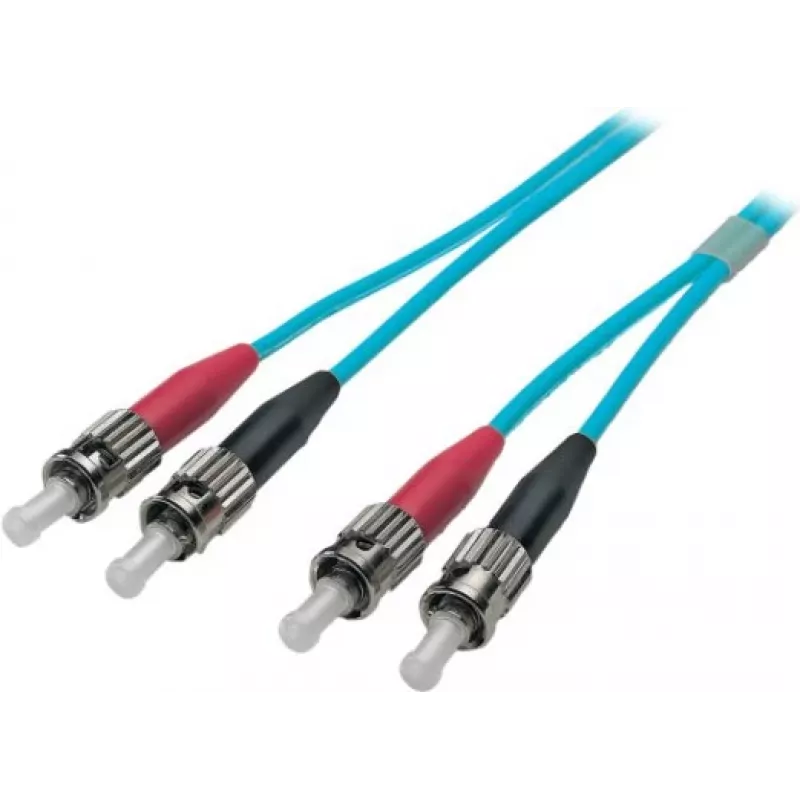

EFB-Elektronik ECOFIBER Duplex Jumper ST-ST 50/125µm OM3 LSZH Aqua 3.0mm 5m

The EFB-Elektronik ECOFIBER Duplex Jumper ST-ST is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber, it supports 10 Gigabit Ethernet over distances up to 300 meters, making it ideal for data centers, enterprise networks, and telecommunications.

Advantages

This cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, reducing toxic smoke and corrosive gases. The aqua color jacket allows for easy identification of OM3 fiber.

Suitable for

• Data centers requiring high-speed connections
• Enterprise network backbone cabling
• Telecommunications infrastructure
• Fiber-to-the-desk applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode
• Core/Cladding: 50/125 µm
• Performance Class: OM3
• Connectors: ST to ST, Duplex
• Number of Fibers: 2
• Length: 5 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Cable Diameter: 3.0 mm (per simplex)
• Data Rate: 10 Gbps
• Maximum Reach (10GbE): 300 m
• Insertion Loss: <0.3 dB
• Return Loss: >30 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM3-compatible transceivers and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
