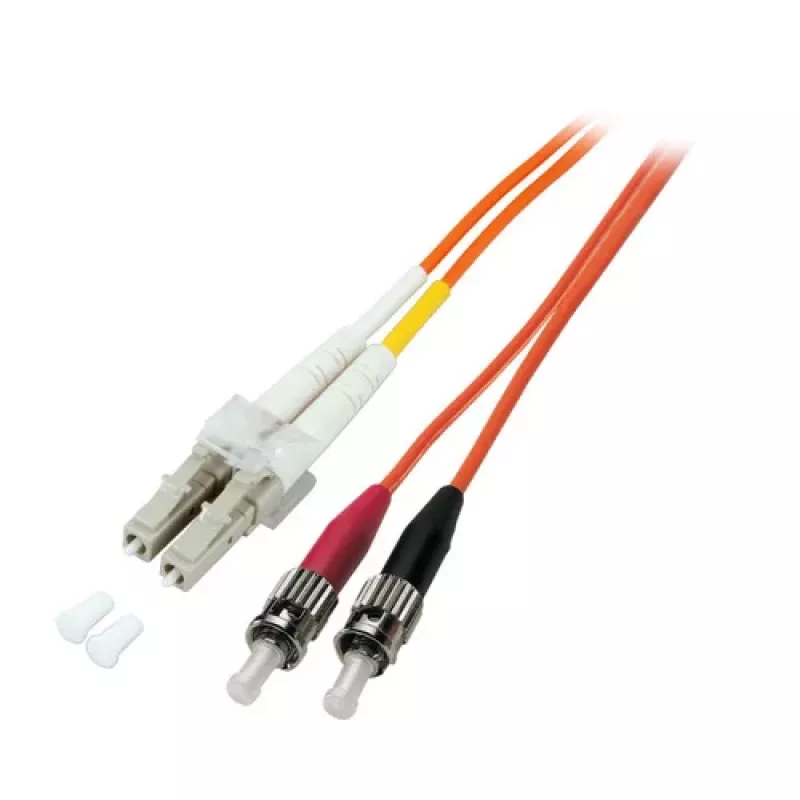

EFB-Elektronik ECOFIBER Duplex Jumper LC-ST 50/125µm OM2 LSZH Orange 2.0mm 50m

The EFB-Elektronik ECOFIBER Duplex Jumper LC-ST 50/125µm OM2 LSZH Orange 2.0mm 50m is a high-performance fiber optic patch cable designed for reliable data transmission in local area networks (LAN), storage area networks (SAN), data centers, and telecommunications. This duplex jumper features LC to ST connectors, multimode OM2 fiber, and a low smoke zero halogen (LSZH) jacket for safety in enclosed spaces.

Advantages

This cable offers low insertion loss (<0.3 dB typical) and high return loss (>20 dB typical), ensuring excellent signal integrity. The ceramic ferrule connectors provide durability and stable performance. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it ideal for indoor installations. The orange jacket color allows for easy identification.

Suitable for

• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Data Centers
• Telecommunications
• Fiber optic patching between LC and ST interfaces

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Configuration: Duplex
• Fiber Type: Multimode (MM)
• Fiber Category: OM2
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Connector Type A: LC
• Connector Type B: ST
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Length: 50 m
• Cable Diameter (per strand): 2.0 mm
• Number of Fibers: 2
• Polarity: A-B (Crossed)
• Insertion Loss (typical): < 0.3 dB
• Return Loss (typical): > 20 dB
• Ferrule Material: Ceramic
• Compliance: RoHS Compliant

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is suitable for use with OM2 compatible equipment. Store in a clean, dry environment.
