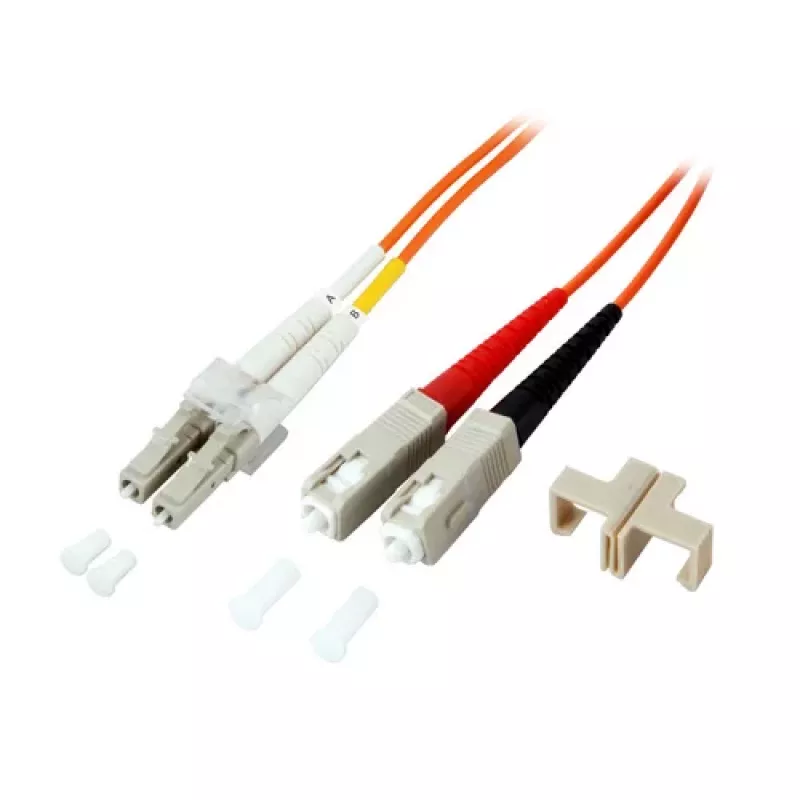

EFB-Elektronik Duplex Jumper LC-SC 62.5/125µm OM1 LSZH Orange 2.0mm 2m

The EFB-Elektronik Duplex Jumper LC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in LAN, SAN, data center, and telecommunications applications. With a 62.5/125µm core/cladding diameter and OM1 multimode fiber, this cable ensures optimal performance for short to medium distance connections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the vibrant orange color aids in easy identification.

Advantages

This patch cable offers low insertion loss (≤0.3 dB typical) and high return loss (≥20 dB typical), ensuring minimal signal degradation. The duplex LC to SC connectors provide a secure and stable connection. The 2.0mm cable diameter offers flexibility for tight installations without compromising durability.

Suitable for

• Fiber optic network connections in data centers
• Telecommunications infrastructure
• Local area networks (LAN) and storage area networks (SAN)
• Any environment requiring low smoke and zero halogen materials

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Category: OM1
• Core/Cladding Diameter: 62.5/125 µm
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable Length: 2 m
• Jacket Material: LSZH
• Jacket Color: Orange
• Cable Diameter: 2.0 mm
• Number of Fibers: 2
• Polarity: A-B (Crossed)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 20 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and patch panel connections in structured cabling systems.
