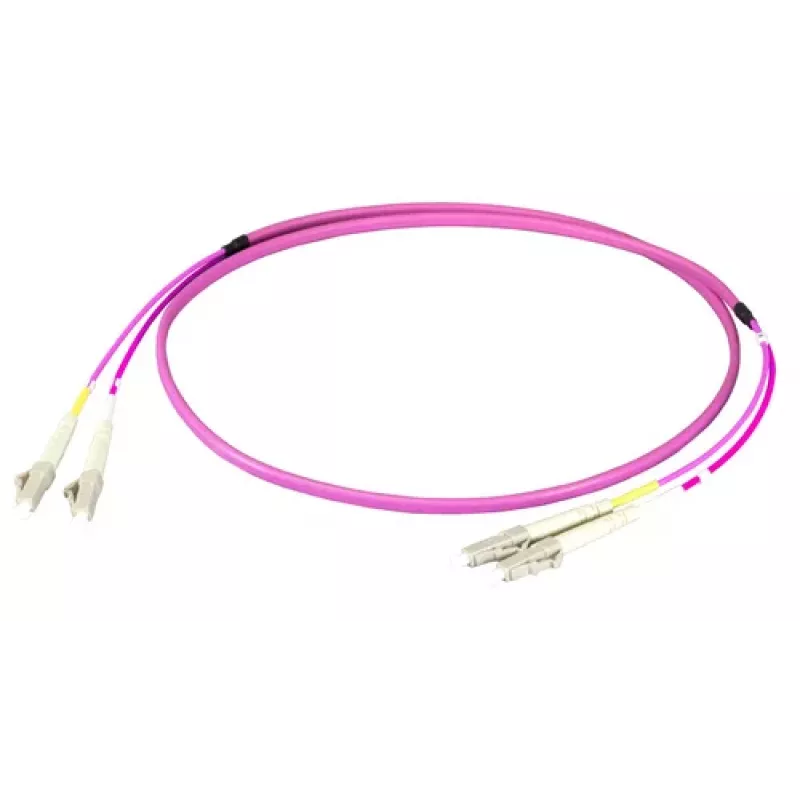

EFB Elektronik Duplex Jumper LC-LC 50/125 µm OM4 LSZH Erika Violet Flat Twin 3x5mm 0.5m

The EFB Elektronik Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for reliable data transmission in data centers, LAN, and SAN environments. With OM4 multimode fiber, it supports high-bandwidth applications over short distances. The cable features a flat twin design with a 3x5mm cross-section, making it ideal for tight spaces and easy installation. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed areas, while the Erika Violet color provides easy identification.

Advantages

This patch cable offers excellent signal integrity with low insertion loss and high return loss, thanks to the UPC polished LC connectors. The duplex configuration allows simultaneous bidirectional communication, and the flat twin design reduces cable bulk and improves airflow in cable trays. The LSZH jacket minimizes toxic smoke and corrosive gases in case of fire, making it suitable for public and commercial buildings.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed fiber optic links

Key specifications

• Connector Type: LC to LC
• Fiber Type: Multimode OM4
• Core/Cladding: 50/125 µm
• Cable Length: 0.5 m
• Jacket Material: LSZH
• Jacket Color: Erika Violet
• Cable Shape: Flat Twin (3x5mm)
• Number of Fibers: 2
• Connector Polish: UPC
• Polarity: A-B

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for short-distance, high-speed connections within racks or between adjacent equipment. Pair with OM4 compatible transceivers for best results.
