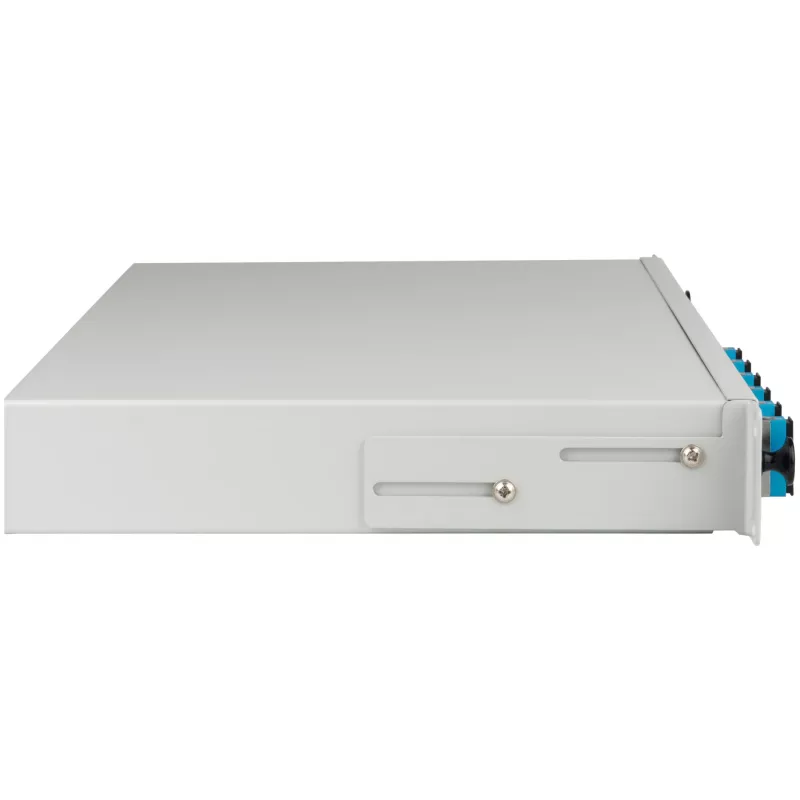

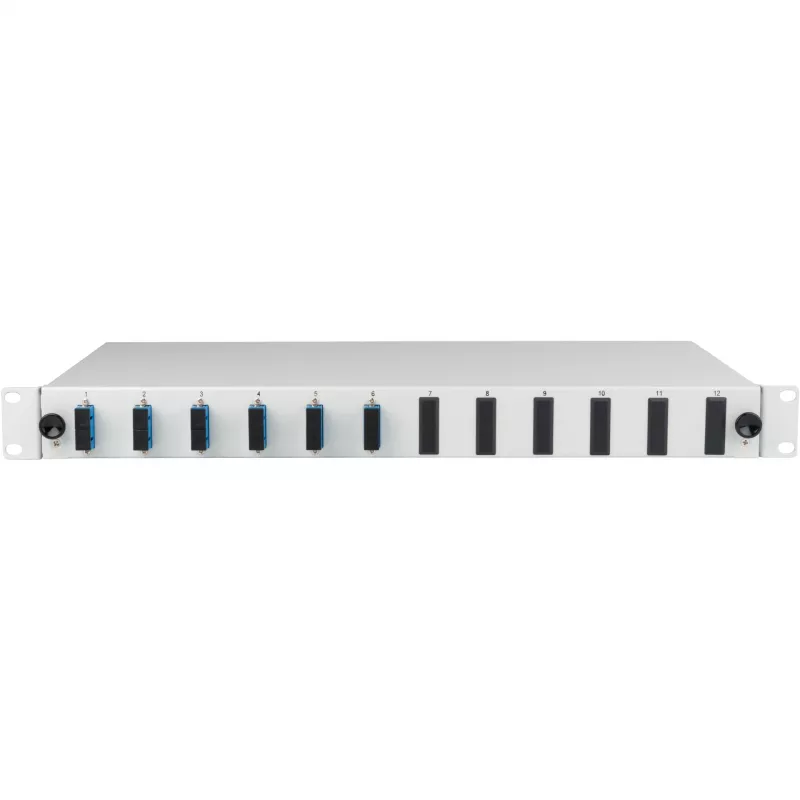

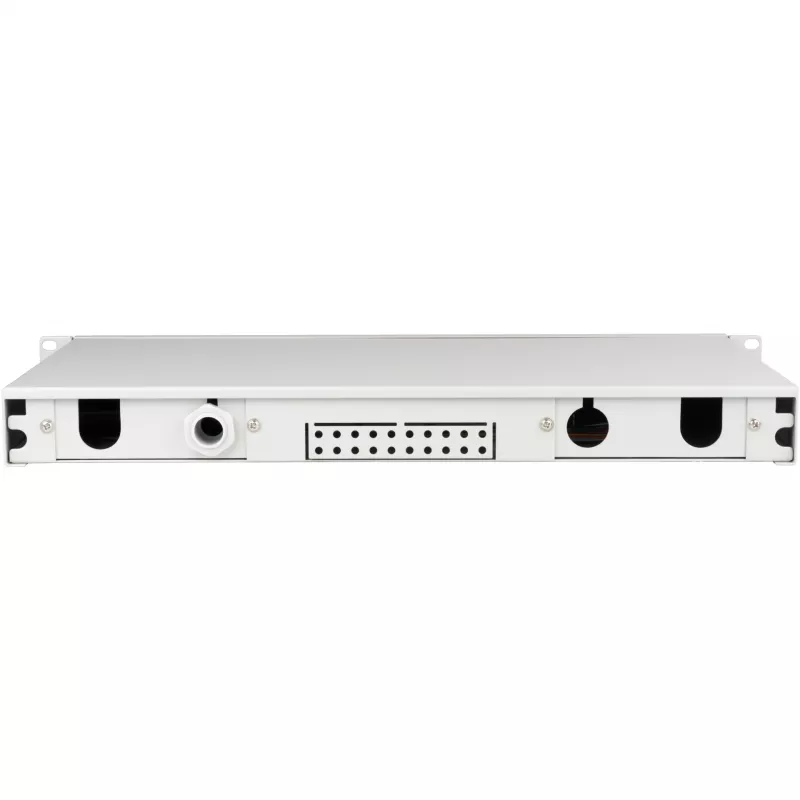

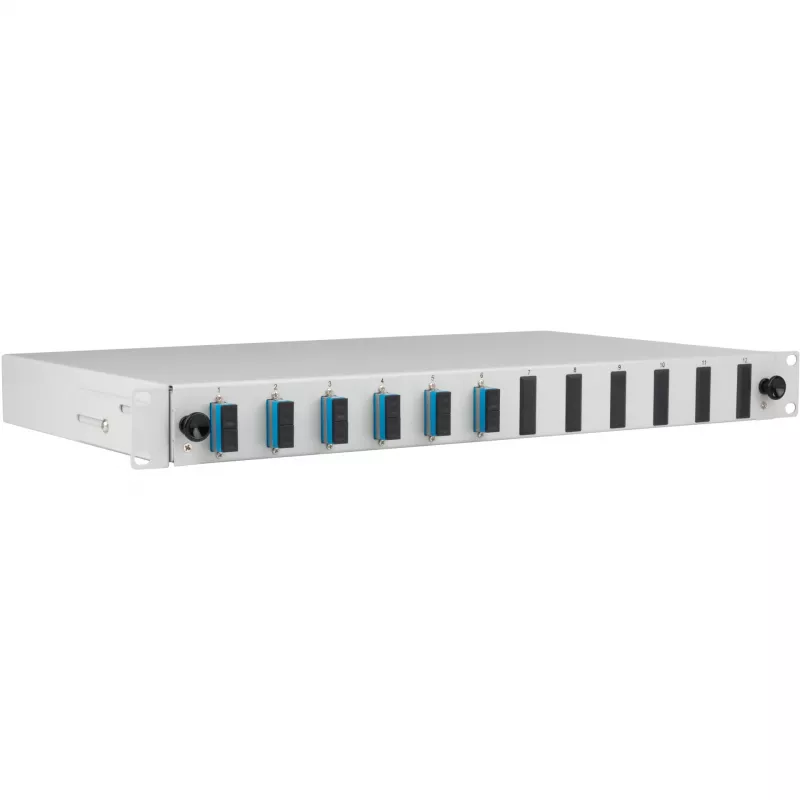

EFB Electronics Splice Box SC 9/125 OS2 Extendable 12 Pigtails Offset 6

The EFB Electronics Splice Box SC 9/125 OS2 is a high-quality fiber optic distribution and splicing solution designed for 19-inch rack mounting. This pre-assembled unit features 12 pigtails (9/125 µm OS2) with SC connectors and 6 SC duplex adapters, providing a total fiber capacity of 12 fibers. The sliding/extractable tray allows easy access for splicing and maintenance, making it ideal for structured cabling and FTTH applications.

Advantages

Pre-assembled with pigtails and adapters saves installation time. The extractable tray simplifies splicing and future modifications. Robust metal housing ensures durability and protection of fiber connections. Supports single-mode OS2 fibers for long-distance, high-bandwidth networks.

Suitable for

• Fiber optic splicing and distribution in data centers
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Enterprise LAN and WAN infrastructure

Key specifications

• Product Type: Fiber Optic Splice Box / Distribution Box
• Fiber Type: Single-mode OS2
• Fiber Core/Cladding: 9/125 µm
• Pigtail Connector: SC
• Number of Pigtails: 12
• Adapter Connector: SC Duplex
• Number of Adapters: 6
• Total Fiber Capacity: 12 (via 6 duplex ports)
• Design: Sliding / Extractable Tray
• Mounting: 19-inch Rack Mount
• Material: Metal (Steel)
• Manufacturer: EFB-Elektronik

Recommendations

For optimal performance, use with OS2-rated patch cables and ensure proper fiber cleaning before splicing. This splice box is compatible with standard 19-inch racks and provides reliable fiber management for critical network infrastructure.
