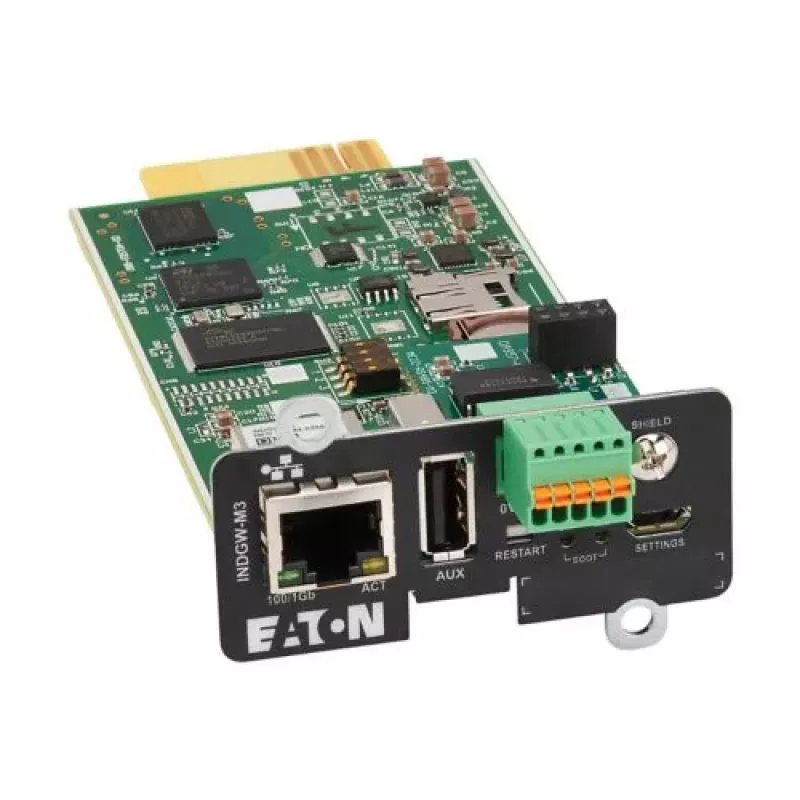

Eaton Remote Management Adapter - Mini Slot

Data center operators overseeing Eaton 5PX or 9PX UPS units can deploy the Eaton Remote Management Adapter (INDGW-M3) to gain full network-based control. This Mini Slot card slides into the UPS chassis and connects via Ethernet, enabling remote monitoring, graceful shutdown, and event logging from any location.

Key specifications

• Product Type: UPS Network Management Card
• Form Factor: Mini Slot (Internal)
• Connectivity: Ethernet (RJ-45)
• Network Protocols: SNMP v1/v3, HTTP/HTTPS, SSH, Telnet, Modbus TCP, BACnet IP, SMTP, NTP, DHCP, DNS
• Security: SSL/TLS, SSH, RADIUS, LDAP, Active Directory
• Management Software: Eaton Intelligent Power Manager (IPM), Intelligent Power Protector (IPP)
• Virtualization Support: VMware vCenter, Microsoft Hyper-V, Citrix XenServer, Red Hat KVM
• IP Version Support: IPv4, IPv6
• LED Indicators: Status, Network Activity
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 0% to 95% non-condensing
• Power Consumption: < 3 W
• Certifications: CE, UL, cUL, FCC Class A, RoHS

Why choose it

The INDGW-M3 provides comprehensive remote management through a web interface, SNMP, or command line. It supports multiple protocols and integrates with enterprise authentication systems, ensuring secure access. Field-upgradeable firmware keeps the card current with evolving network standards and UPS features.

Ideal use cases

• Centralized UPS management in data centers and server rooms
• Remote shutdown and event logging for IT professionals
• Virtualized environments including VMware, Hyper-V, XenServer, and KVM
• Eaton UPS series with Mini Slot: 5PX, 9PX, 9SX, 5P, 5SC, 3S, 5E Gen2, 9E and others

Good to know

The adapter supports data logging with configurable intervals and event logging with timestamp and severity. It is compatible with Eaton Intelligent Power Manager and Intelligent Power Protector for advanced power management and automated shutdown orchestration.
