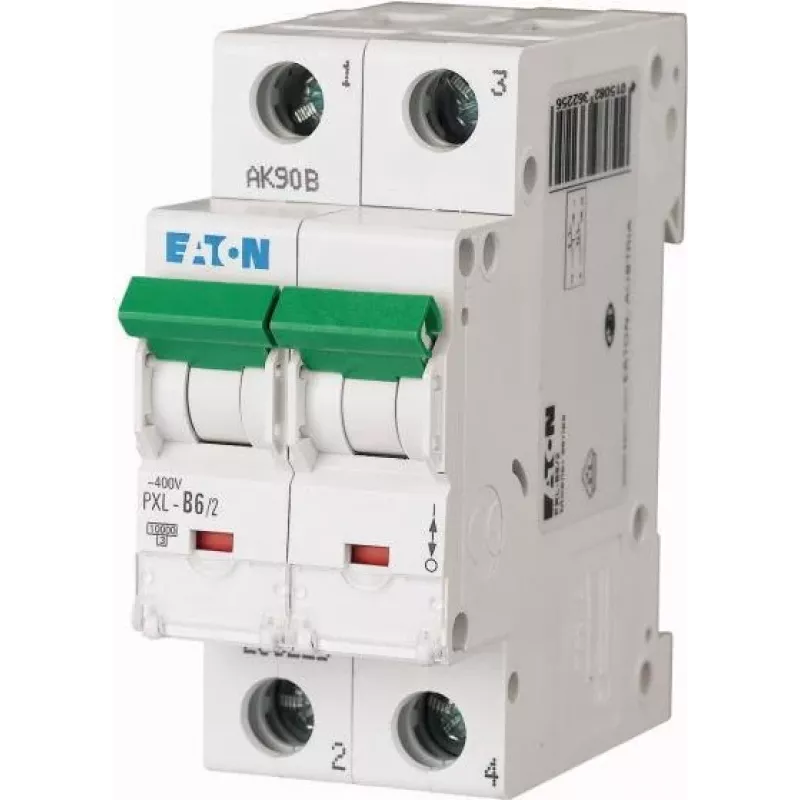

Eaton PXL-B6/2 Miniature Circuit Breaker (MCB), 2-Pole, B Curve, 6 A, 10 kA, DIN Rail 236225

The Eaton PXL-B6/2 stands out with its 2-pole design and B tripping characteristic, providing precise protection for residential and commercial circuits with moderate inrush currents. Its compact 2 TE width saves space on the DIN rail without sacrificing performance.

Highlights

• 2-pole MCB with B curve for general circuit protection
• Rated current 6 A, breaking capacity 10 kA
• DIN rail mounting, width only 2 TE (35 mm)
• High endurance: >10,000 electrical and >20,000 mechanical cycles

In daily use

Ideal for protecting lighting and socket circuits, the PXL-B6/2 trips quickly on overloads and short circuits. Its screw terminals accept solid or stranded conductors from 1 to 25 mm², making installation straightforward. The device operates reliably across a wide temperature range from -25 °C to +75 °C.

Full specifications

• Number of poles: 2
• Tripping characteristic: B
• Rated current (In): 6 A
• Rated voltage (Ue): 230/400 V AC
• Rated switching capacity (Icn): 10 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal capacity: 1-25 mm² (solid/stranded)
• Energy limitation class: 3
• Degree of protection: IP20 (terminals), IP40 (front)
• Overvoltage category: III
• Pollution degree: 2
• Operating temperature: -25 to +75 °C
• Storage temperature: -40 to +80 °C
• Standard: IEC/EN 60898-1
• Electrical endurance: >10,000 switching cycles
• Mechanical endurance: >20,000 switching cycles
• Module width: 2 TE (35 mm)

Final note

The PXL-B6/2 combines reliable protection with a compact footprint, making it a practical choice for modern electrical installations.
