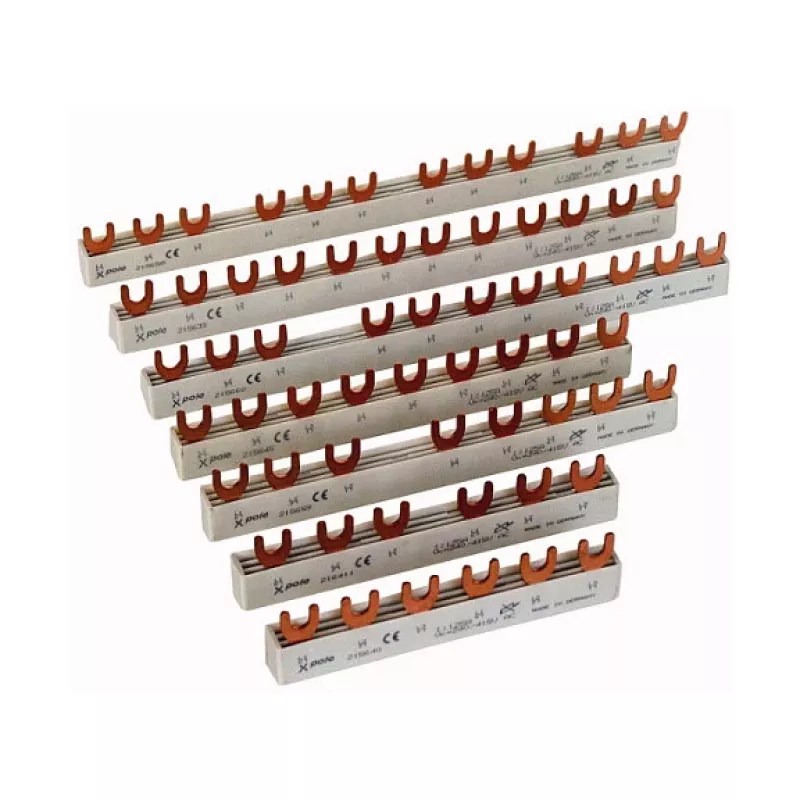

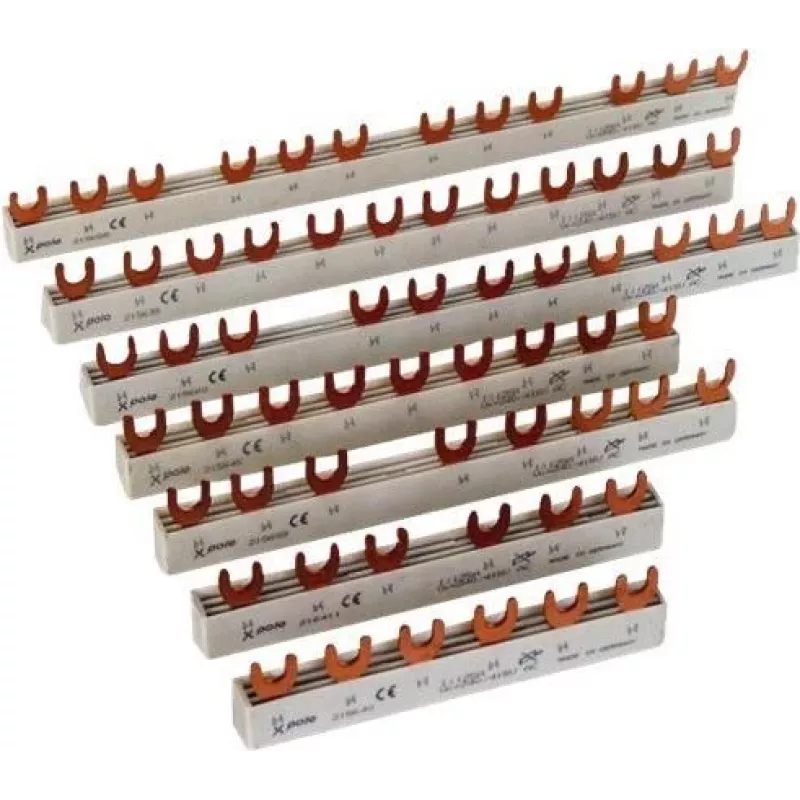

EATON EVG Euro-Vario-S 3-Phase Busbar 12 Modules 63A 10mm² Pin Type (215639)

When building or upgrading a three-phase distribution board, the challenge is often ensuring clean, reliable power distribution to multiple modular devices without excessive wiring. The EATON EVG Euro-Vario-S 3-Phase Busbar solves this by providing a compact, fully insulated 12-module busbar that simplifies connections and reduces installation time.

Who is it for

This busbar is ideal for electricians, panel builders, and maintenance professionals who need a dependable method to distribute power from a 3-phase supply to modular devices such as circuit breakers and RCDs in electrical enclosures. It is particularly suited for DIN rail mounted applications where space is at a premium.

Main features

• 3-phase, 3-pole configuration supports standard 230/400 V AC systems
• Rated current of 63 A ensures robust power handling for demanding applications
• 12 module positions with 18 mm pitch accommodate a wide range of modular devices
• Pin type connection (Stift) for secure and straightforward device connection
• 10 mm² copper conductor ensures low resistance and efficient power transfer
• Fully insulated design enhances safety and reduces risk of accidental contact
• DIN rail compatible for easy mounting in standard enclosures
• IP20 degree of protection suitable for indoor use

Specifications

• Brand: EATON
• Model: EVG-3PHAS/12MODUL
• MPN: 215639
• EAN: 4015082156398
• Number of Phases: 3-phase
• Number of Poles: 3-pole
• Number of Modules: 12
• Rated Current (In): 63 A
• Rated Voltage (Un): 230/400 V AC
• Connection Type: Pin type (Stift)
• Module Pitch: 18 mm
• Conductor Material: Copper
• Conductor Cross-Section: 10 mm²
• Insulation: Fully insulated
• Mounting Type: DIN rail compatible
• Degree of Protection: IP20
• Series: EVG Euro-Vario-Schiene
• Application: Power distribution in electrical enclosures
• Compatibility: For modular devices (e.g., circuit breakers, RCDs)
• Colour: Grey/Black

Tips

Before installation, verify that your devices are compatible with pin-type busbars and that the total current draw does not exceed the 63 A rating. Always follow local electrical codes and ensure the busbar is properly secured on the DIN rail. For best performance, use with EATON modular devices designed for this busbar system.
