Rittal RiLineX 3-Pole Busbar System Board 630 A 1000 V, 30x5 mm Cu, 600 mm 9360084

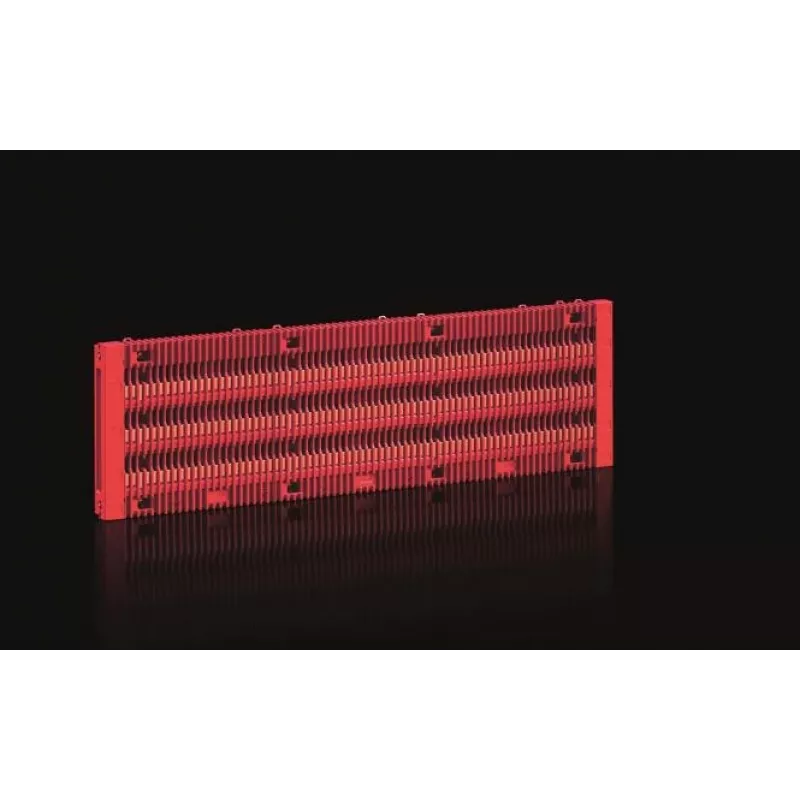

In industrial control panels and low-voltage switchgear assemblies, efficient power distribution is critical. The Rittal RiLineX Board 3p RX 9360084 provides a robust 3-pole busbar system for 630 A applications. This 600 mm board with integrated 30x5 mm E-Cu busbars simplifies the construction of power distribution units, ensuring reliable and safe current transmission in accordance with IEC 61439 standards.

Key specifications

• System series: RiLineX
• Number of poles: 3
• Busbar cross-section: 30 x 5 mm
• Busbar material: E-Cu (electrolytic copper)
• Rated current: 630 A
• Rated voltage: 1000 V AC/DC
• Insulation voltage: 1000 V
• Short-circuit withstand current: 25 kA (1 s)
• Short-circuit peak current: 53 kA
• Board material: glass-fibre reinforced polyester
• Length: 600 mm
• Protection category: IP00 (when not installed in an enclosure)
• Standards: IEC 61439-1/-2

Why choose it

The RiLineX board integrates busbars into a compact, insulated support, reducing assembly time and wiring errors. Its high-quality copper conductors ensure low power loss and excellent conductivity. The board is compatible with the entire RiLineX system, allowing for flexible and scalable power distribution designs.

Ideal use cases

• Power distribution in industrial control panels
• Low-voltage switchgear and controlgear assemblies
• Motor control centers
• Energy distribution in machinery and plants

Good to know

The board can be mounted vertically or horizontally. It is designed for use within an enclosure to achieve the required protection rating. Additional RiLineX components such as connection adapters and device adapters can be easily attached to the busbars.
