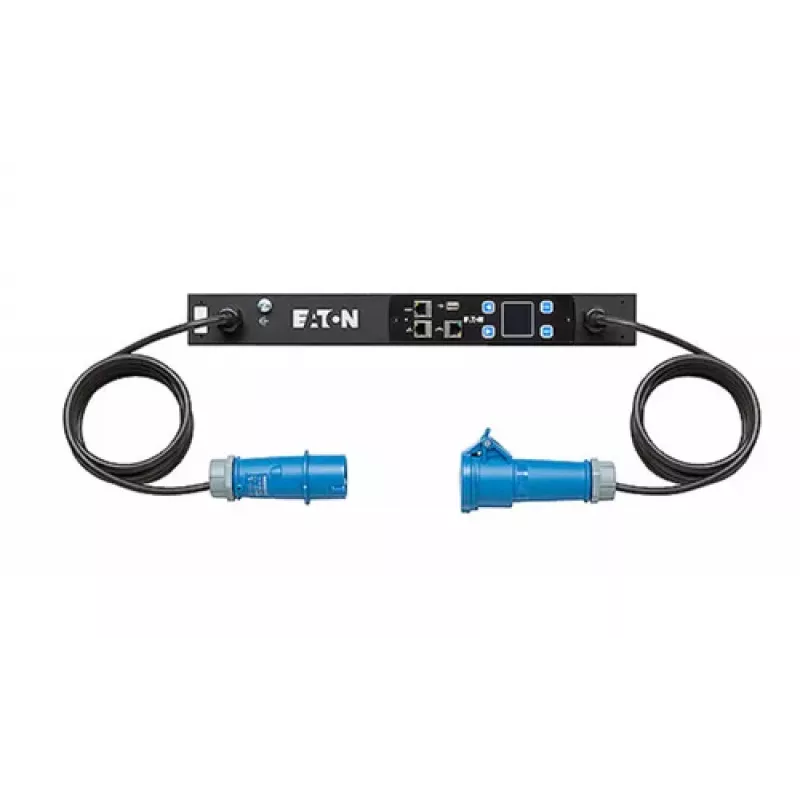

EATON ePDU G3 In-Line Metered EILB13 Single-Phase 16A 240V IEC C20 to C19

The EATON ePDU G3 In-Line Metered EILB13 is a professional-grade power distribution unit designed for data centers and IT environments requiring precise energy monitoring and reliable power distribution. This in-line module features a single-phase input with IEC-320-C20 connector and a single IEC-320-C19 output, supporting up to 16A at 240V AC. With billing-grade metering accuracy of ±1%, it provides real-time measurement of voltage, current, power, energy, power factor, and crest factor, displayed on an easy-to-read LCD screen. The unit includes a 10/100 Mbps Ethernet interface for network connectivity and supports SNMP v1/v2c/v3, HTTP/HTTPS, Telnet, SSH, FTP, SMTP, and NTP protocols for comprehensive management. An RS-232 serial port is also available for local configuration. The tool-less button mounts allow for quick installation, and the device operates reliably in temperatures from 0°C to 60°C and humidity up to 95% non-condensing. Certified to UL, cUL, CE, FCC Class A, and RoHS standards, the EILB13 ensures safe and efficient power distribution with advanced monitoring capabilities.

Advantages

Billing-grade metering accuracy (±1%) ensures precise energy cost allocation. Real-time monitoring of key electrical parameters helps optimize power usage and prevent overloads. Network connectivity enables remote management and integration into existing infrastructure. Compact in-line design saves rack space and simplifies installation.

Suitable for

• Data centers requiring per-outlet or per-PDU power monitoring
• IT rooms with single-phase equipment needing accurate energy measurement
• Facilities aiming to improve power usage effectiveness (PUE)
• Remote site management with SNMP-based monitoring systems

Key specifications

• Input: IEC-320-C20, 16A max, 240V AC single-phase
• Output: IEC-320-C19, 16A max
• Metering: Voltage, Current, Power, Energy, Power Factor, Crest Factor
• Accuracy: ±1% billing grade
• Display: LCD
• Network: 10/100 Mbps Ethernet, SNMP v1/v2c/v3, HTTP/HTTPS, Telnet, SSH, FTP, SMTP, NTP
• Serial: RS-232
• Form Factor: In-line module with tool-less button mounts
• Operating Temperature: 0°C to 60°C
• Operating Humidity: 5% to 95% non-condensing
• Certifications: UL, cUL, CE, FCC Class A, RoHS

Recommendations

For optimal performance, pair the EILB13 with Eaton's power management software to leverage advanced data logging and alarm capabilities. Ensure the input circuit breaker is rated appropriately for the 16A load. The unit is ideal for environments where accurate per-PDU energy metering is required without the need for outlet-level monitoring.
