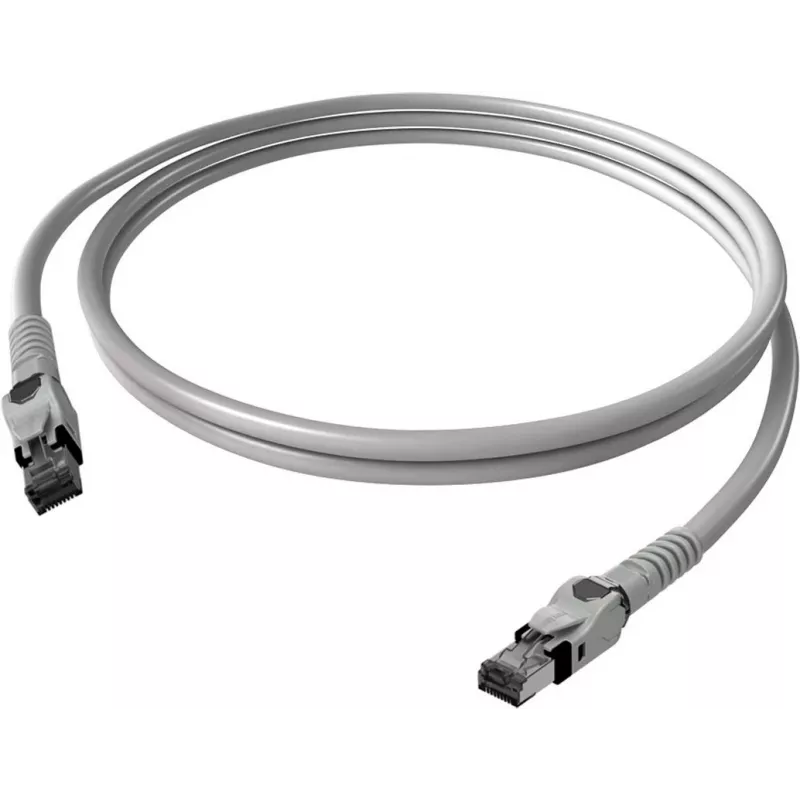

EASYLAN VarioBoot Cat.6A S/FTP Patch Cable, Grey, 7.5 m

The EASYLAN VarioBoot Cat.6A S/FTP Patch Cable is a high-performance, shielded Ethernet cable designed for demanding data networks. With a length of 7.5 meters and a sleek grey jacket, this cable ensures reliable, high-speed connectivity for your LAN infrastructure. The VarioBoot design provides snagless protection and bend relief, making it ideal for tight spaces and frequent plugging/unplugging.

Advantages

This patch cable offers exceptional data transfer rates up to 10 Gbps, supporting 10 Gigabit Ethernet over a bandwidth of 500 MHz. The S/FTP shielding (pairs in metal foil) minimizes electromagnetic interference, ensuring signal integrity in high-density environments. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire. Gold-plated contacts guarantee corrosion resistance and optimal conductivity.

Suitable for

• Data networks in offices, data centers, and server rooms
• LAN connections for switches, routers, and patch panels
• Power over Ethernet (PoE and PoE+) applications
• High-speed data transmission requiring Cat.6A performance

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (ISO/IEC)
• Shielding: S/FTP (PiMF)
• Length: 7.5 m
• Colour: Grey
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated
• Boot Type: VarioBoot (Snagless, Bend Protection)
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Wiring Scheme: TIA/EIA 568B (1:1 straight-through)
• Halogen Free: Yes
• Flame Retardant: Yes

Recommendations

For optimal performance, pair this cable with Cat.6A compatible networking equipment. The VarioBoot design is particularly useful in patch panels or where cables are frequently moved. Ensure proper cable management to maintain signal quality.
