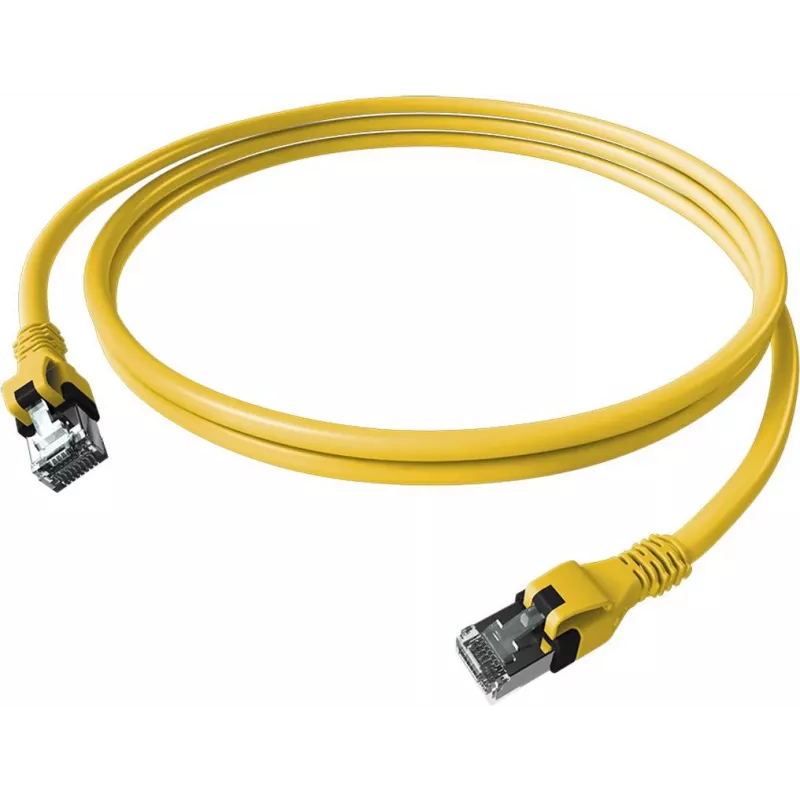

EasyLan saCon DualBoot Patch Cable S/FTP Yellow 5.00m Cat.6A

The EasyLan saCon DualBoot Patch Cable is a high-performance Cat.6A shielded patch cable designed for reliable 10 Gigabit Ethernet connections in data centers and professional networks. With S/FTP shielding and gold-plated contacts, it ensures minimal crosstalk and signal loss. The innovative DualBoot Push snagless boot protects the RJ45 latch during installation and removal.

Advantages

Optimized for high-speed data transmission up to 500 MHz, this cable supports 10GBASE-T and is backward compatible with lower categories. The stranded copper conductors provide flexibility for tight spaces, while the PVC jacket offers durability. The snagless boot design prevents damage to the connector latch, extending cable life.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• PoE+ applications (up to 30W)
• High-bandwidth server connections

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 5.0 meters
• Color: Yellow
• Connectors: RJ45 Male to RJ45 Male
• Boot: DualBoot Push (Snagless)
• Conductor: Stranded Copper (AWG 26/7)
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: 10 Gbps
• Wiring Standard: TIA/EIA 568B
• Jacket Material: PVC
• Impedance: 100 Ohm
• Compliance: RoHS, REACH
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
