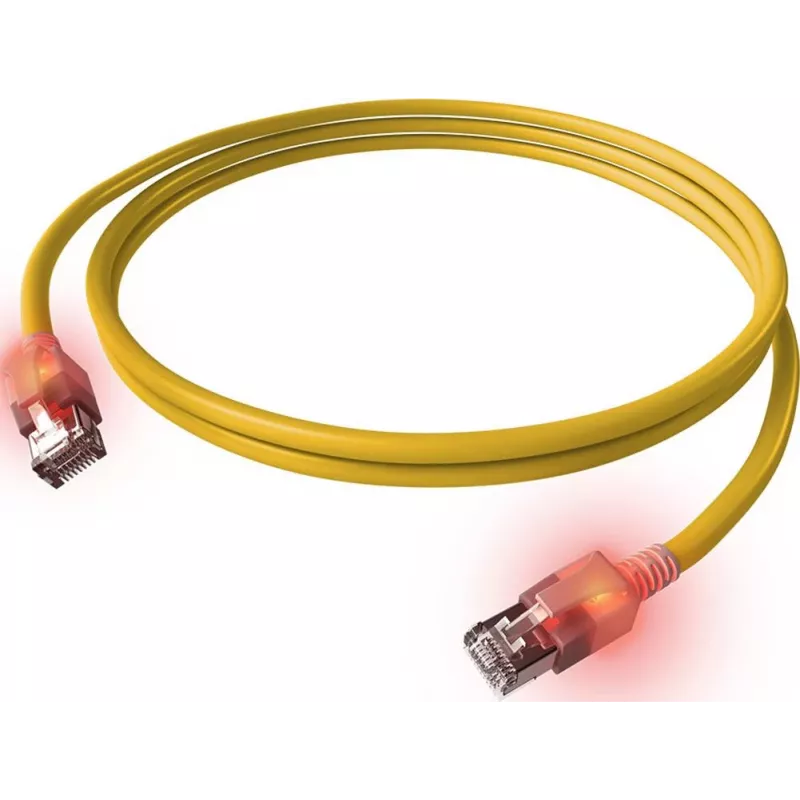

EasyLan DualBoot LED Patch Cable RJ45 S/FTP Cat.6A (Class EA) - with saCon Plug - LSOH - Yellow - 7m

The EasyLan DualBoot LED patch cable is a high-performance network cable designed for demanding data center and enterprise environments. Featuring innovative DualBoot LED technology, this cable provides visual port identification and status indication, simplifying network management and troubleshooting. With S/FTP shielding and Cat.6A performance, it supports 10 Gigabit Ethernet over distances up to 100 meters, ensuring reliable high-speed data transmission.

Advantages

DualBoot LED technology enables quick visual identification of active ports and link status, reducing downtime and installation errors. The S/FTP shielding (overall braid and foil per pair) provides excellent protection against electromagnetic interference (EMI), ensuring signal integrity in high-density environments. The LSOH (Low Smoke Zero Halogen) jacket enhances safety by emitting minimal smoke and no toxic halogen gases in case of fire, making it ideal for public and commercial buildings.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks with high EMI environments
• PoE applications including PoE, PoE+, and 4PPoE/PoE++
• Installations where fire safety is a priority (LSOH jacket)

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A (Class EA)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Connector Type: RJ45 with saCon plug (both ends)
• Cable Length: 7 meters
• Cable Color: Yellow
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Data Transfer Rate: Up to 10 Gbps (10GBASE-T)
• Frequency Bandwidth: 500 MHz
• Special Feature: DualBoot LED for port identification/status
• Conductor Material: Bare Copper
• Conductor Gauge: AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA 568B
• Flammability Rating: IEC 60332-1, IEC 61034-2, IEC 60754-2
• Power over Ethernet (PoE) Support: Yes (PoE, PoE+, 4PPoE/PoE++)
• Outer Diameter: Approx. 6.2 mm
• Operating Temperature: -20°C to +60°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with Cat.6A compatible switches and network interfaces. The DualBoot LED feature requires compatible hardware to activate; refer to your device documentation for LED behavior. Ensure proper cable management to avoid kinking or sharp bends.
