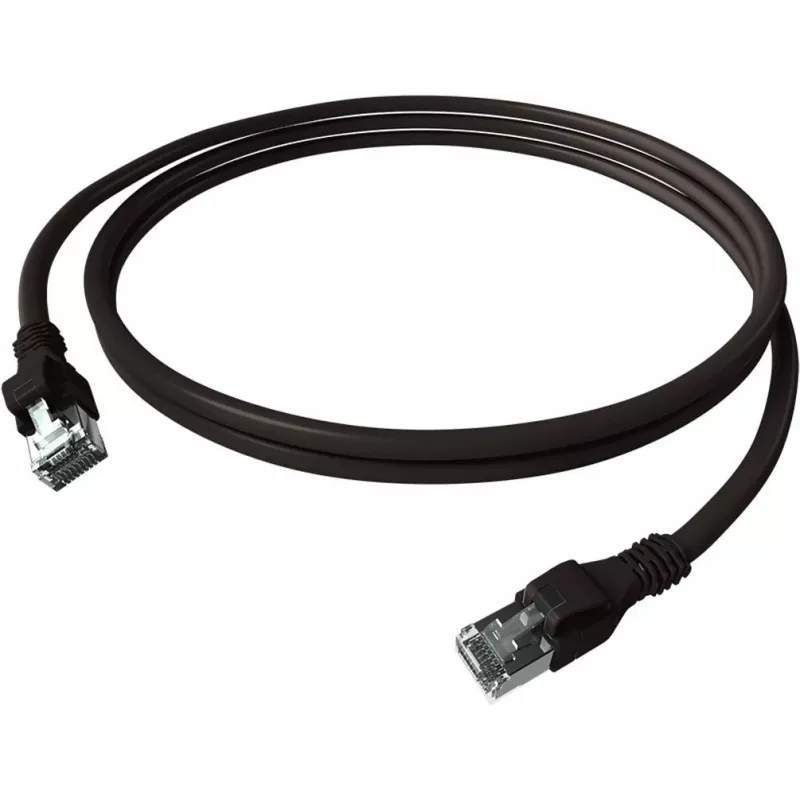

EasyLan CPP1OSASAS0020 DualBoot Push Patch Cable Cat.6A S/FTP Black 2.0m

The EasyLan CPP1OSASAS0020 DualBoot Push Patch Cable is a high-performance Cat.6A S/FTP patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 2.0 meters and a sleek black color, this cable is ideal for data centers, enterprise networks, and home networking setups. The innovative DualBoot Push snagless boot provides easy handling and strain relief, ensuring long-lasting performance.

Advantages

This patch cable offers superior shielding with S/FTP construction (pairs in metal foil and overall braid), minimizing crosstalk and electromagnetic interference. It supports PoE++ (IEEE 802.3bt Type 4) for powering devices like IP cameras and wireless access points. The gold-plated contacts (50µ) ensure optimal conductivity and corrosion resistance. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces.

Suitable for

• Data centers requiring high-speed, reliable connections
• Enterprise networks with 10GBASE-T infrastructure
• Home networks for gaming, streaming, and smart home devices
• PoE++ applications such as high-power IP cameras and switches

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category: Cat.6A (Category 6A)
• Shielding Type: S/FTP (PiMF)
• Length: 2.0 meters
• Color: Black
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Material: Bare Copper
• Conductor Gauge: AWG 26/7 (Stranded)
• Jacket Material: LSZH
• Connector Plating: Gold-plated (50µ)
• Wiring Standard: TIA/EIA 568B
• PoE Support: Yes, up to PoE++ (IEEE 802.3bt Type 4)
• Special Features: DualBoot Push Snagless Boot
• Compliance: RoHS, REACH
• Operating Temperature: -20°C to +60°C
• Impedance: 100 Ohm

Recommendations

For optimal performance in high-speed networks, pair this cable with Cat.6A compatible switches and network cards. Ensure proper cable management to maintain signal integrity.
