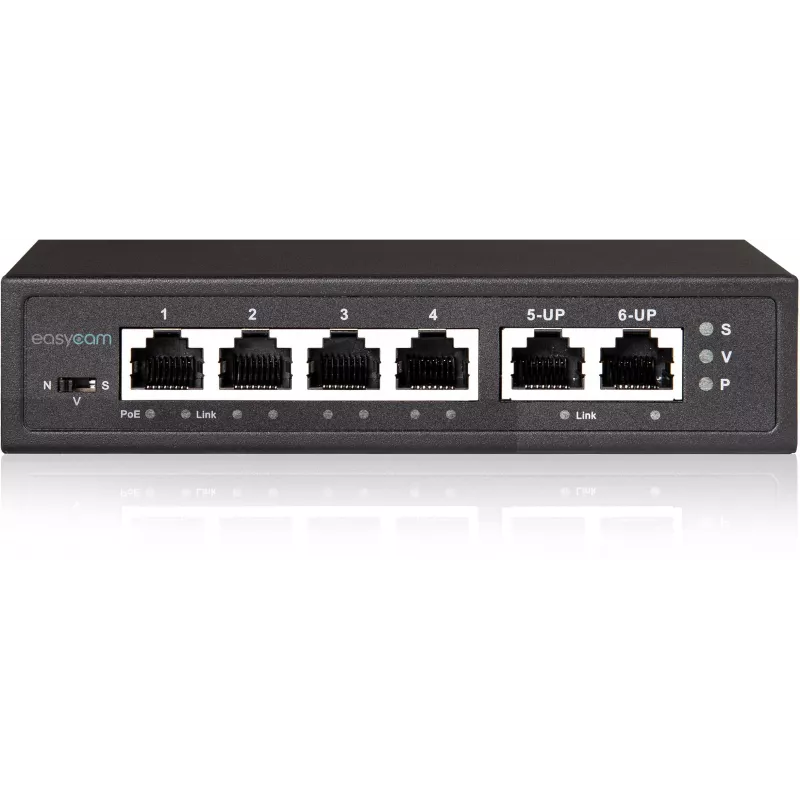

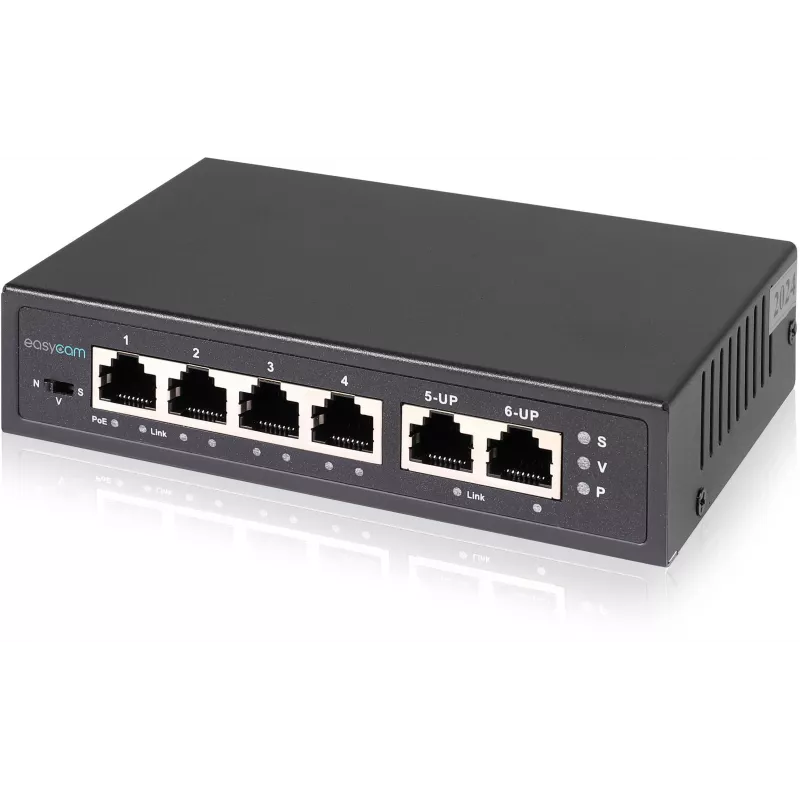

EasyCam EC-POE-SW42 6-Port PoE Switch (4 PoE + 2 Uplink) 60W

The EasyCam EC-POE-SW42 is a reliable and cost-effective 6-port PoE switch designed for small to medium-sized networks. With 4 PoE ports and 2 uplink ports, it delivers power and data over a single Ethernet cable, simplifying installation and reducing cable clutter. The switch supports IEEE 802.3af/at PoE standards with a total power budget of 60W, making it ideal for powering IP cameras, VoIP phones, and wireless access points.

Advantages

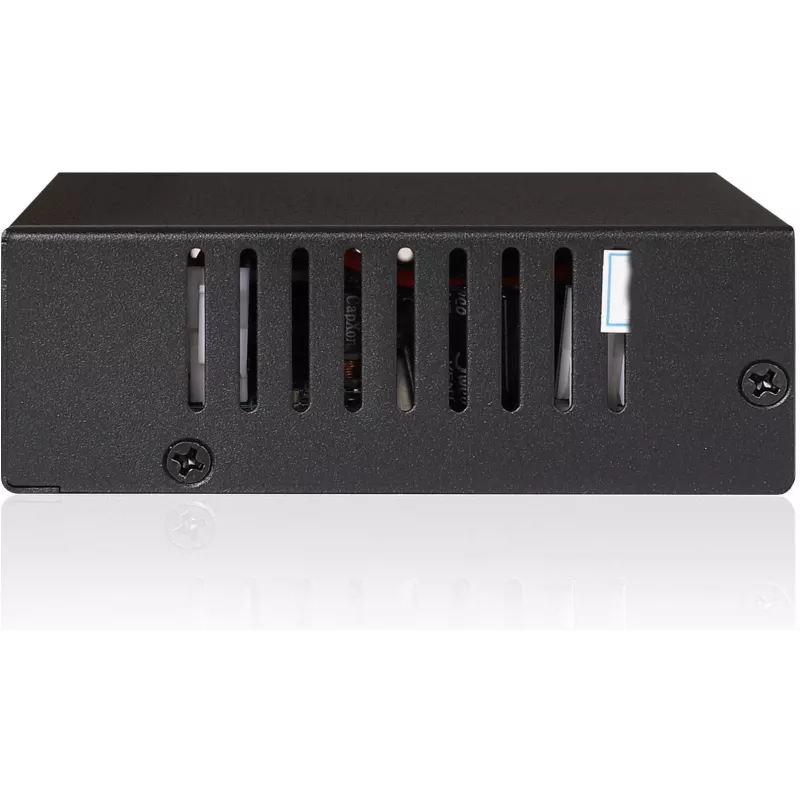

Plug-and-play installation with no configuration required. Fanless design ensures silent operation, perfect for noise-sensitive environments. Metal housing provides durability and effective heat dissipation. Compact desktop form factor saves space.

Suitable for

• IP surveillance systems (up to 4 cameras)
• VoIP phone deployments
• Wireless access point installations
• Small office/home office networks

Key specifications

• 4 x 10/100Mbps PoE ports (IEEE 802.3af/at)
• 2 x 10/100Mbps uplink ports
• Total PoE power budget: 60W (up to 30W per port)
• Switching capacity: 1.2 Gbps
• MAC address table: 2K
• External power adapter (52V DC)
• LED indicators for Power, Link/Act, PoE status
• Operating temperature: 0°C to 40°C

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure total PoE power consumption does not exceed 60W. The switch is not suitable for outdoor use without additional protection.
