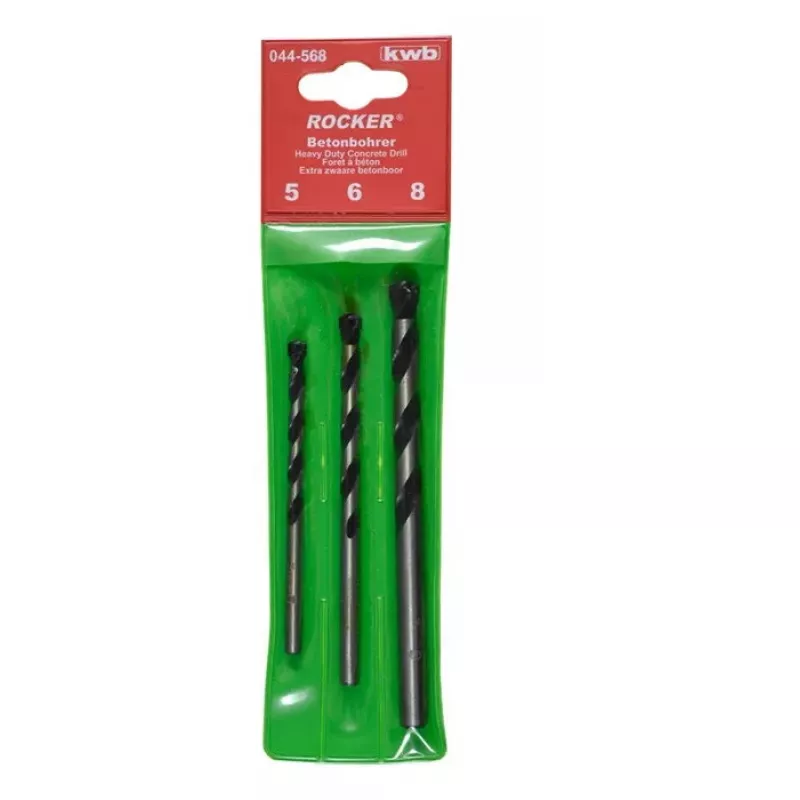

Drill bit set KWB 044568 3 pc(s)

The KWB 044568 drill bit set contains three tungsten-carbide-tipped masonry and concrete drill bits designed to ISO 5468. Bits are high-temperature brazed with laterally and vertically secured carbide plates and an asymmetrical spiral profile to remove chips efficiently. The set is finished in chemical black and features a ground spiral suited for drilling in concrete, masonry, granite, natural and reconstituted stone, and limestone. These hammer-resistant, high-performance bits are intended for use in rotary and impact (hammer) drills and are manufactured for right-hand rotation.

Advantages

Tungsten carbide tips and high-temperature brazing provide durable cutting edges and resistance to wear. The laterally and vertically secured carbide plates increase tip stability under impact. The asymmetrical chip-removal spiral and ground flute improve debris evacuation and drilling speed. The chemical black finish reduces corrosion and improves bit longevity. Designed to withstand hammer action, the bits perform reliably in heavy-duty masonry applications.

Suitable for

Key specifications

How to use

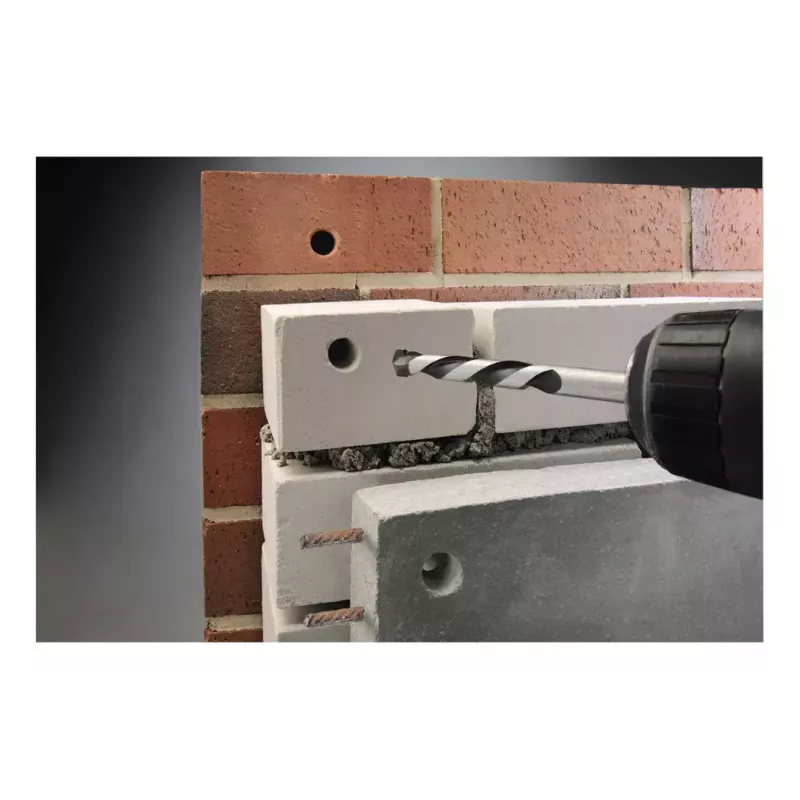

Secure the appropriate drill bit size in the drill chuck according to the required hole diameter. Use a rotary or impact drill set to right-hand rotation. Begin drilling at a moderate speed to establish the hole, then increase speed while applying steady, even pressure; allow the bit to remove chips and cool naturally. For deep holes, periodically withdraw the bit to clear debris. Do not force the bit—let the carbide tip cut the material and avoid excessive side load to prevent tip damage.
