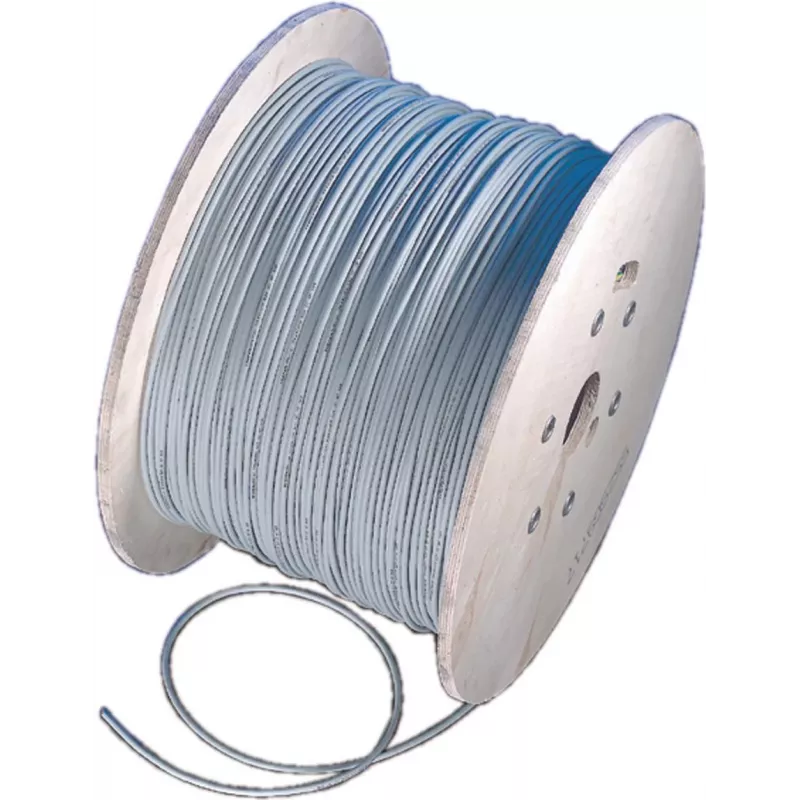

Draka UC300 HS24 SF/UTP Cat5e Bulk Cable, 300m, Grey RAL 7035, Halogen-Free

For high-density installations where safety and signal integrity are non-negotiable, the Draka UC300 HS24 sets a new benchmark. This 300-metre bulk cable combines SF/UTP shielding—an overall braid plus foil—with a low-smoke, halogen-free jacket, delivering robust protection against EMI while meeting stringent fire safety codes. Unlike standard patch leads, it is supplied on a reel for custom-length runs, allowing installers to terminate exactly what they need without waste.

Highlights

• SF/UTP construction: braided and foil shielding for superior noise immunity
• Cat5e performance up to 100 MHz, supporting Gigabit Ethernet
• LSHF-FR jacket: low smoke, halogen-free, flame-retardant
• Solid bare copper conductors, AWG 24/1, for reliable long-term connections
• CPR Euroclass Cca-s1a,d1,a1 for verified fire performance
• Grey RAL 7035 jacket blends into industrial and office environments

In daily use

Pull the cable from its sturdy reel and cut to the required length—no more tangled boxes or leftover short pieces. The SF/UTP shield is ideal for areas with motors, fluorescent lighting, or dense cable trays, while the halogen-free jacket ensures that in the event of fire, smoke and toxic gas emissions are minimised. The 300-metre length suits medium to large projects, from floor distribution to backbone links within a single building.

Full specifications

• Cable type: Data installation cable, bulk (reel)
• Category: Cat5e
• Shielding: SF/UTP (overall braid and foil)
• Conductor: Solid bare copper, AWG 24/1, 4 pairs
• Jacket: LSHF-FR, grey RAL 7035
• Length: 300 m
• Outer diameter: approx. 7.2 mm
• Impedance: 100 Ohm
• Max frequency: 100 MHz
• CPR classification: Cca-s1a,d1,a1
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame retardancy: IEC 60332-1-2, IEC 60332-3-24 (Cat. C)
• Halogen free: IEC 60754-1/2
• Smoke density: IEC 61034-1/2
• Operating temperature: -20°C to +60°C
• Packaging: Wooden/cardboard reel

Final note

Choose the Draka UC300 HS24 for a dependable, safety-conscious cabling solution that meets both performance and regulatory demands in commercial and industrial settings.
