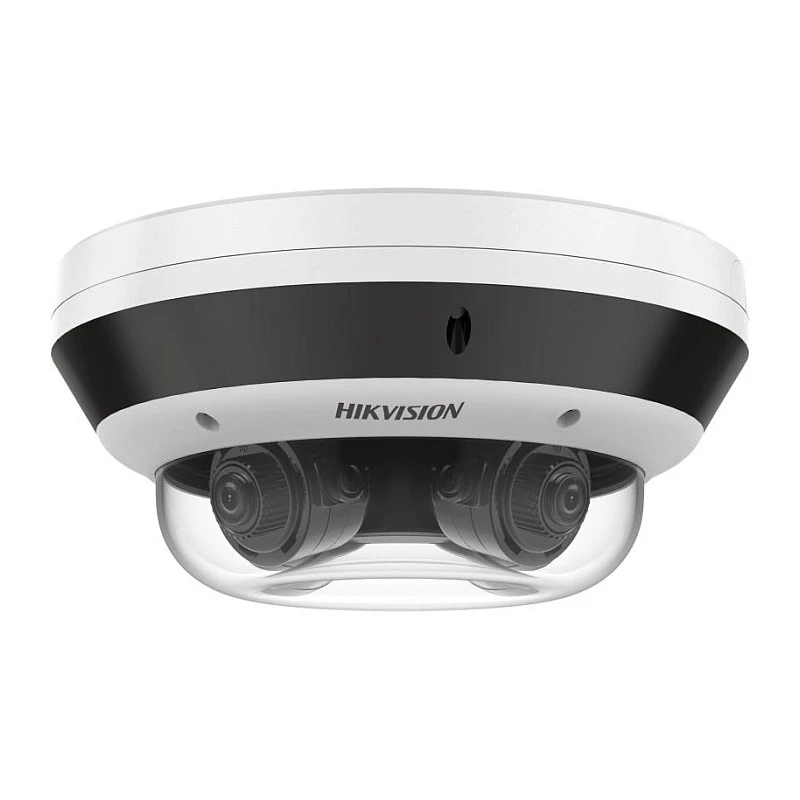

Dome IP security camera Hikvision DS-2CD6D44G1H-IZS 2688x1520 Indoor Outdoor

The Hikvision DS-2CD6D44G1H-IZS is a dome IP security camera that provides panoramic coverage for indoor and outdoor areas. With a resolution of 2688 × 1520 pixels, motorized/manual focus and a 360° rotation capability, the camera captures wide scenes and supports surveillance across lobbies, plazas and business parks using a single unit. The lens offers a horizontal field of view from 31.2° to 102.4° and a vertical field from 17.6° to 54.7°, enabling both broad overview images and more detailed monitoring when combined with zoom.

Advantages

The camera combines high-resolution imaging with panoramic viewing and motorized/manual focus to reduce the need for multiple cameras. Its 360° rotation and wide viewing angles allow flexible coverage of large spaces, while a choice of lens settings supports both overview and detail capture. The dome form factor is suitable for ceiling or wall installation in varied environments and the unit is specified for both indoor and outdoor use.

Suitable for

• Reception areas and hotel lobbies
• Shopping arcades and retail floors
• Office entrances and corridors
• Outdoor plazas and business park perimeters
• Large indoor halls and warehouses

Key specifications

• Image resolution: 2688 × 1520 pixels
• Lens focal length: motorized zoom (approx. 2.8–12 mm range)
• Viewing angle (horizontal): 31.2°–102.4°
• Viewing angle (vertical): 17.6°–54.7°
• Rotation: 360° rotation capability for panoramic coverage
• Focus: motorized and manual focus options
• Installation: suitable for indoor and outdoor mounting

How to use

Mount the dome camera on a suitable ceiling or wall surface following local mounting and wiring regulations. Connect the camera to the network and configure IP, stream and recording settings via the Hikvision configuration interface or compatible VMS. Use the motorized zoom and focus to set the desired framing; employ the 360° rotation to position the camera for panoramic monitoring and adjust viewing angles to cover target areas. Test image quality at different zoom levels and lighting conditions to ensure reliable coverage.

Recommendations

For best results, position the camera centrally to the area to be monitored to fully utilize the 360° rotation and wide viewing angles. Configure appropriate stream profiles and recording schedules to balance image quality and storage needs, and perform periodic focus and alignment checks, especially after installation or maintenance.
