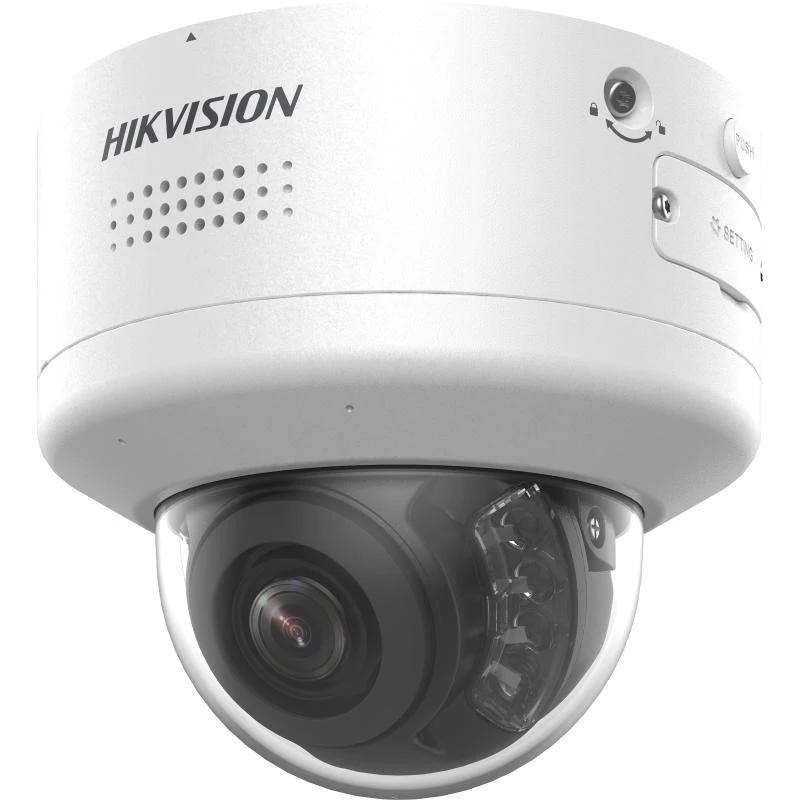

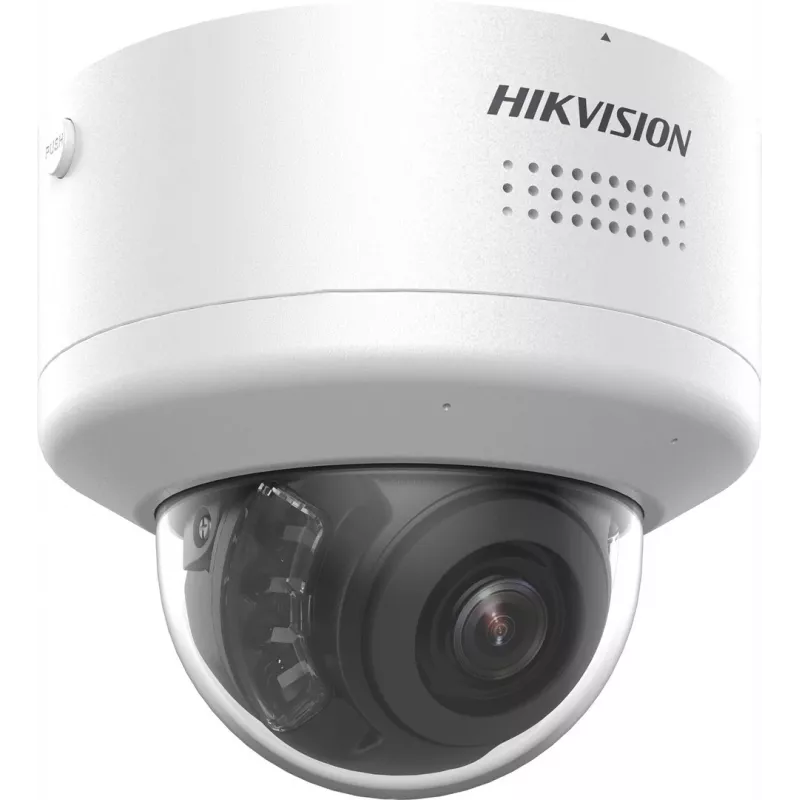

Dome IP security camera Hikvision DS-2CD2787G2H-LIPTRZS2U/SL — 8MP 3840×2160, 2.8–12 mm motorized lens, indoor/outdoor, ceiling/wall mount, white

Hikvision DS-2CD2787G2H-LIPTRZS2U/SL is a dome IP security camera with an 8 MP (3840 × 2160) CMOS sensor and a motorized 2.8–12 mm varifocal lens. Designed for wired Ethernet networks, the camera supports ceiling or wall mounting for indoor and outdoor surveillance and provides flexible pan, tilt and 350° rotation for wide coverage. The white, vandal- and weather-resistant housing suits standard security installations.

Advantages

The camera delivers high-resolution 8 MP imaging and continuous color footage using ColorVu technology, while supporting IR, white light and Smart Hybrid Light modes for reliable night performance up to 40 m. Motorized pan, tilt, rotate and zoom simplify installation and field of view adjustment. Built-in wide dynamic range (130 dB WDR) improves image clarity in strong backlight, and onboard deep-learning analytics classify humans and vehicles. The unit includes two-way audio with dual-array microphone, alarm interface and an SL variant with active strobe and audio warning. The housing is IP66 and IK10 rated for dust, water and vandal resistance.

Suitable for

• Perimeter and entrance monitoring for commercial buildings
• Parking lots and outdoor areas requiring vandal-resistant cameras
• Indoor public spaces such as lobbies and corridors
• Sites needing person and vehicle detection with two-way audio

Key specifications

• Image sensor: 1/1.8" CMOS, 8 MP (3840 × 2160)
• Lens: Motorized varifocal 2.8–12 mm
• Field of view (horizontal): approximately 112.3°–41.2°
• Rotation range: pan/tilt with 350° rotation capability
• Night illumination: IR and white light up to 40 m; Smart Hybrid Light modes
• Wide dynamic range: 130 dB WDR
• Analytics: Human and vehicle classification (deep learning)
• Audio: Two-way audio with dual-array microphone; alarm/audio interface available
• Network: Wired Ethernet LAN
• Enclosure: Ceiling/wall dome; dust and water resistant (IP66); vandal resistant (IK10)
• Color: White; Weight: 0.82 kg

How to use

Mount the camera on a ceiling or wall using the appropriate fixings, connect to a wired Ethernet network for power and data (PoE if supported by system), and adjust the motorized 2.8–12 mm lens and pan/tilt/rotate functions to frame the desired scene. Configure image settings, WDR and ColorVu/lighting modes in the recorder or camera web interface, set up analytics for human/vehicle detection, and connect audio and alarm lines if external devices are required.

Recommendations

Install the camera at a height that balances field of view and identification needs (typical mounting 2.5–6 m for entrances and lobbies). Use the motorized lens and rotation to minimize blind spots, enable WDR where backlight is present, and choose Smart Hybrid Light or white light for color imaging at night. Ensure cabling is weatherproof for outdoor runs and follow local mounting and grounding practices.
