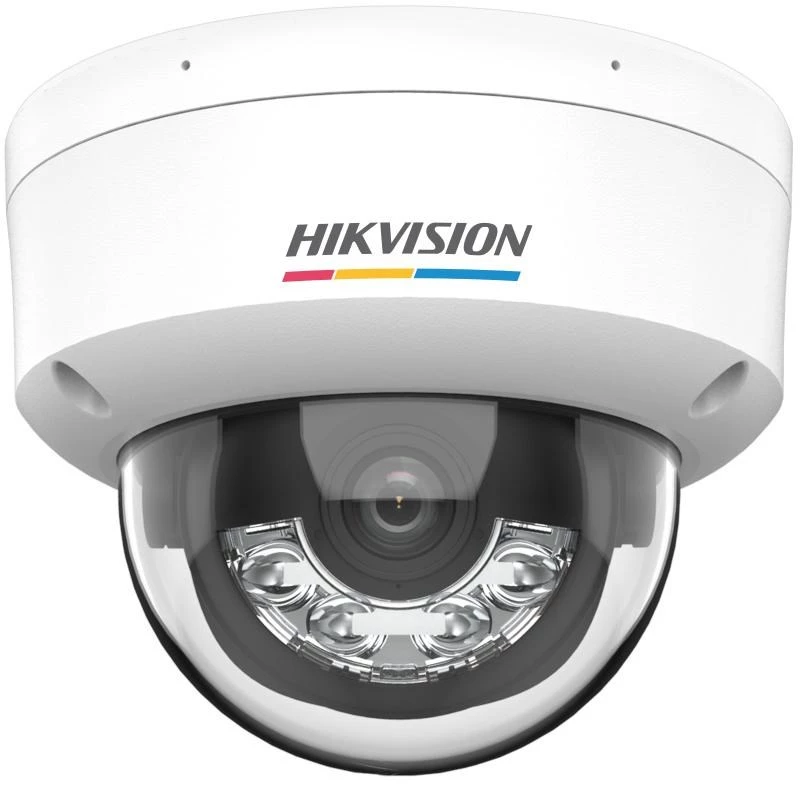

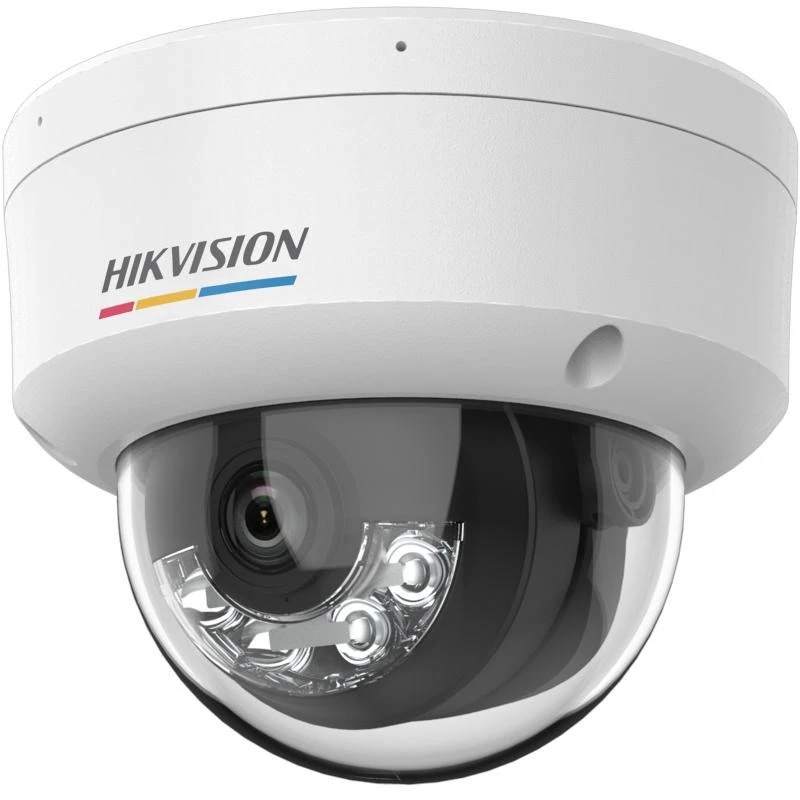

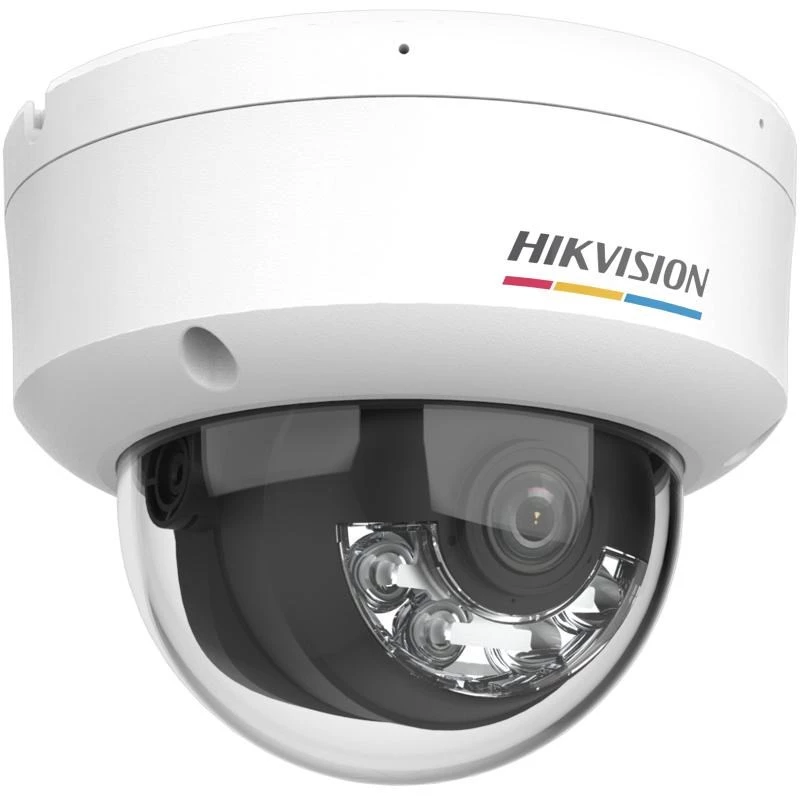

Dome IP security camera Hikvision DS-2CD1167G2H-LIU (2.8mm) — 3200×1800, 1/2.4 inch CMOS, ceiling mount, wired

Hikvision DS-2CD1167G2H-LIU (2.8mm) is a Value Series dome IP security camera suitable for ceiling installation in both indoor and outdoor environments. It uses a 1/2.4" CMOS sensor to deliver 3200×1800 video at up to 20 fps through a fixed 2.8 mm lens that provides approximately 115° horizontal and 60° vertical field of view. The camera connects via wired Ethernet and supports motion detection, human/vehicle differentiation, and ceiling mounting with 355° rotation capability for flexible coverage.

Advantages

The camera combines a high-resolution 6 MP image sensor with a wide 2.8 mm lens to capture detailed scenes across a broad viewing angle. Wired Ethernet connectivity ensures stable network transmission and continuous power when PoE is available. Built-in motion detection and Human/Vehicle detection reduce false alarms and support targeted monitoring. The dome design and white finish are suitable for unobtrusive ceiling installation, and the product weight (approximately 0.55 kg) simplifies handling and mounting.

Suitable for

• Office interiors and reception areas
• Retail spaces and small shops
• Corridors, hallways and stairwells
• Covered outdoor entrances and canopies
• General perimeter monitoring where ceiling mounting is available

Key specifications

• Resolution: 3200 × 1800 (6 MP)
• Image sensor: 1/2.4" CMOS
• Lens: 2.8 mm, ~115° horizontal / ~60° vertical field of view
• Frame rate: up to 20 fps
• Connectivity: Wired Ethernet (PoE support when available)
• Motion detection: supported, including Human and Vehicle detection
• Mounting: Ceiling mount, dome form factor with approx. 355° rotation
• Placement: Indoor and outdoor (suitable for covered outdoor locations)
• Colour: White
• Weight: ~0.55 kg

How to use

Install the camera on a suitable ceiling surface using appropriate anchors and the included mounting hardware. Connect the camera to a network switch or NVR via a wired Ethernet cable; use Power over Ethernet (PoE) if available to supply both data and power through a single cable. Configure the camera through the Hikvision management interface or compatible VMS: set resolution and frame rate according to network capacity, enable motion detection and Human/Vehicle detection to reduce false alerts, and adjust the field of view by positioning the dome within its rotation range.

Recommendations

For reliable outdoor operation, mount the camera under cover or a canopy to protect from direct exposure to weather. Use PoE to simplify cabling and ensure continuous operation. Configure motion detection zones and sensitivity to match the monitored environment and reduce nuisance alarms. Regularly check firmware updates and perform periodic cleaning of the dome cover to maintain image clarity.
