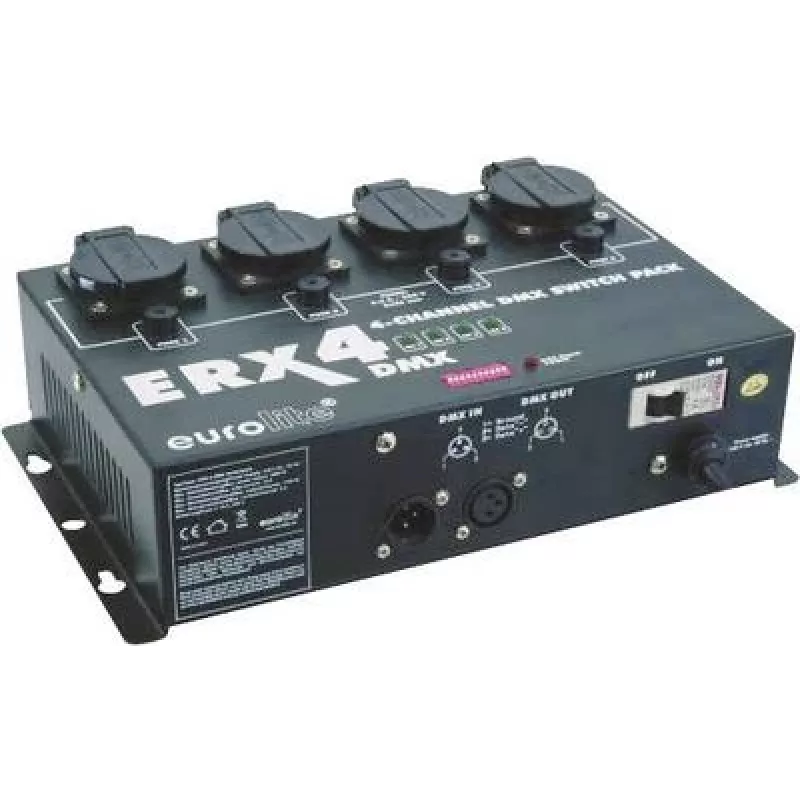

DMX switchpack EUROLITE ERX-4 4-channel DMX controller for lighting rigs

The DMX switchpack EUROLITE ERX-4 is a compact 4-channel DMX controller for lighting rigs that receives a DMX input and routes control to four separate output channels. It provides on/off switching and basic channel distribution for connected luminaires, intended for small stages, clubs, events and fixed installations where simple, reliable control of multiple fixtures is required.

Advantages

The unit offers four DMX-switched outputs in a compact housing, straightforward channel distribution and compatibility with standard DMX512 control signals. Its compact footprint makes it easy to integrate into small stage setups or portable event rigs, while simple functionality reduces setup complexity.

Suitable for

Key specifications

How to use

Connect a DMX512 controller to the unit's DMX input and assign the appropriate DMX addresses for the four outputs according to your controller's addressing scheme. Connect luminaires to the outputs using compatible cables and verify each channel responds to the controller’s on/off commands. Mount or place the switchpack near the fixtures or DMX splitter as convenient and ensure proper power and cable routing to avoid strain on connectors.

Recommendations

Use the ERX-4 in conjunction with a proper DMX controller and signal distributors for larger setups. Verify DMX addressing before live use and secure cabling to prevent accidental disconnection during events.
