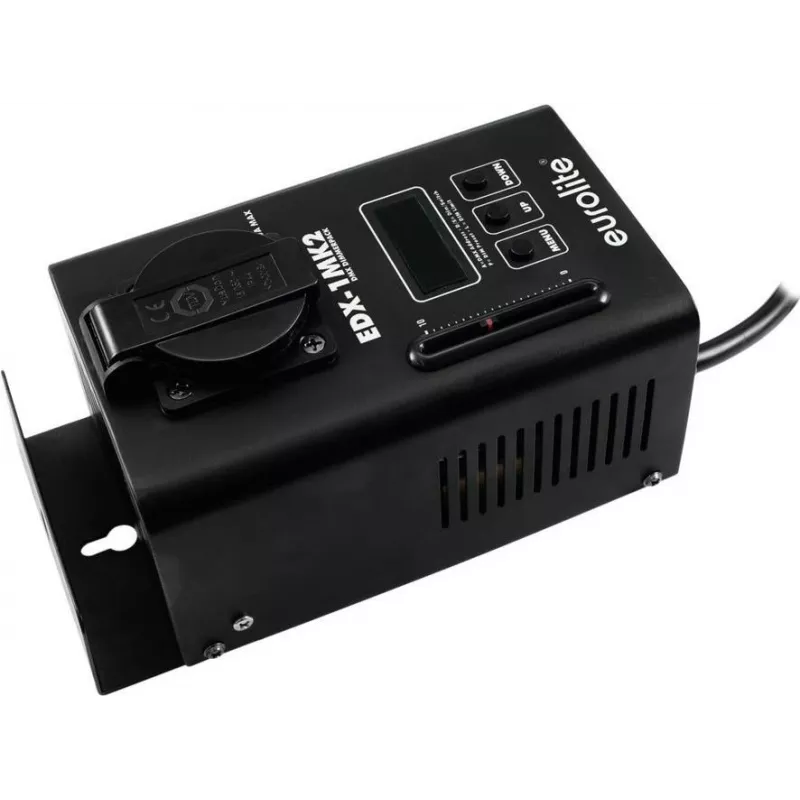

DMX dimmerpack EUROLITE EDX-1 MK2 12 channels 10A, stage lighting dimmer

EUROLITE EDX-1 MK2 is a 12-channel DMX dimmerpack that provides individual dimming control for stage and event lighting. Each channel supports up to 10 A, allowing connection of a wide range of conventional lamps and non-dimmable loads that are compatible with phase-angle dimming. The unit accepts standard DMX input for integration into lighting desks and control systems, enabling programmed scenes and smooth fades in theatres, clubs, rental setups and live event applications.

Advantages

The compact form factor combines multiple high-current channels in a single rack-friendly housing, reducing the need for separate dimmers and simplifying cable management. Individual channel control via DMX ensures precise intensity adjustment and flexible scene programming. Built to meet event and rental requirements, the dimmerpack offers stable power handling and straightforward integration with common DMX controllers.

Suitable for

Key specifications

How to use

Connect mains power following local safety regulations and wire loads to the channel outputs, ensuring the total per-channel current does not exceed 10 A. Link a DMX controller to the DMX input to assign channels and create scenes. Use the controller to program intensity levels, fades and timing; the dimmerpack will respond to standard DMX commands to operate each channel independently. Inspect cabling and load connections before each use and allow adequate ventilation around the unit during operation.

Recommendations

For reliable operation, match connected loads to the phase-angle dimming method and avoid exceeding the 10 A limit per channel. Distribute high-current fixtures across multiple channels when possible and use proper cable gauges to minimize voltage drop. Regularly check connections and fuses, and integrate the dimmerpack into a properly grounded electrical system. Consult the lighting controller manual for DMX addressing and channel assignment procedures.
