DisplayPort switch ShiverPeaks 05-14001 2x1 bidirectional 8K

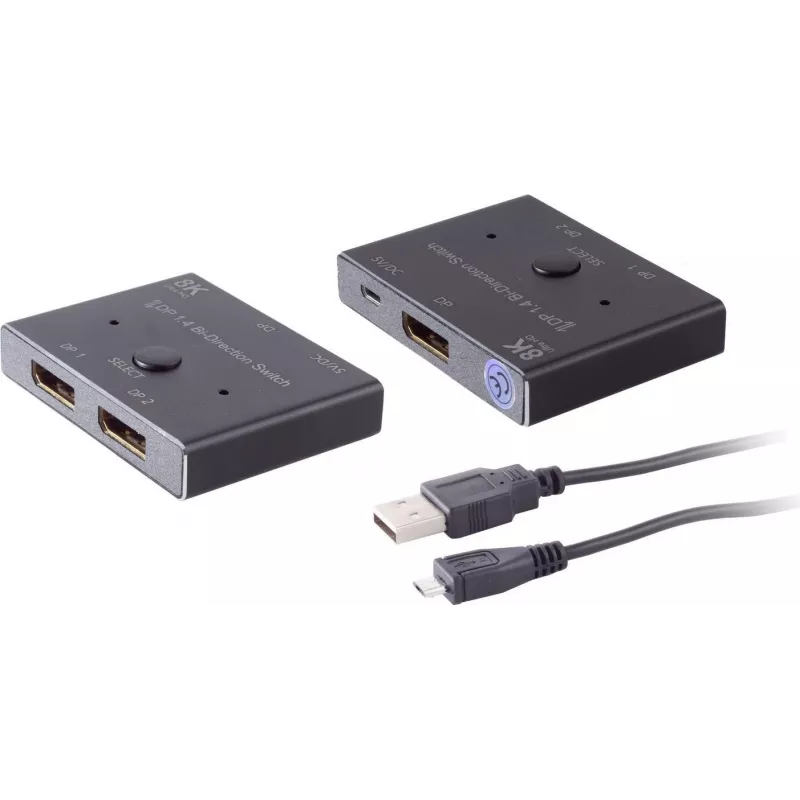

ShiverPeaks DisplayPort switch 05-14001 is a compact 2x1 bidirectional adapter that supports DisplayPort signals up to 8K resolution. It enables connection of two DisplayPort sources to a single display or one source to two displays when used in the reverse direction, allowing users to switch signals without repeatedly disconnecting cables. The switch is intended for use in environments that require reliable high-bandwidth video routing such as workstations, gaming systems and AV installations that use DisplayPort connectors and high-resolution panels.

Advantages

The device supports up to 8K resolution, preserving high pixel density and color detail across compatible monitors and graphics outputs. Bidirectional operation provides flexible topology options — either select one of two sources for a single display or route a single source to one of two displays without moving connectors. Its compact form factor minimizes desk clutter and makes it easy to integrate into existing setups. Signal switching is achieved without altering source or display settings, maintaining stable video output and minimizing interruptions during source changes.

Suitable for

• Dual-PC workstations where two computers share a single high-resolution monitor
• Gaming setups requiring high refresh and resolution switching between consoles or PCs
• Home or professional AV installations that require 8K DisplayPort signal routing
• Testing and demonstration environments where quick source selection is needed

Key specifications

• Interface: DisplayPort (2x inputs / 1x output or 1x input / 2x outputs in bidirectional mode)
• Maximum supported resolution: up to 8K (depending on source/display capabilities and cable quality)
• Bidirectional switching: allows either source selection or display selection without cable swapping
• Form factor: compact inline switch suitable for desktop and rack-adjacent installations
• Signal handling: supports high-bandwidth DisplayPort video and associated audio channels

How to use

Connect DisplayPort cables between the switch ports and your sources or displays according to the desired direction of operation. When used as a 2-to-1 switch, connect two source outputs to the two input ports and the display to the output port; use the device control to select which source is active. When used in reverse as a 1-to-2 switch, connect the source to the input and two displays to the output ports, then select which display receives the signal. Ensure connected devices support the target resolution and use DisplayPort-certified cables to maintain signal integrity. Power and control are managed through the device interface; refer to any included quick guide for button/LED indications if present.

Recommendations

Use high-quality DisplayPort cables rated for the desired bandwidth when running 8K signals, and verify both source and display firmware/settings support the intended resolution and refresh rate. For long cable runs or complex AV setups, keep cable lengths within recommended specifications and avoid adapters that can degrade signal quality.
