DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount

DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
DIGITUS USB 3.0 HUB - 7 Port - Industrial Metal PSU 15-kV ESD Table Wall DIN Rail mount
R2,131
Expands a computer with USB A port with 4 additional USB A super-speed ports.- Additional 7x USB A 3.0 ports with up to 5 Gbit/s to one USB A port- The sturdy metal housing and the various mounts allow flexible mounting on support rails or various surfaces- 15kV ESD protection: The USB hub is protec... Read More
Stock Out Of StockNo Stock Code 303408 Brand DIGITUS Model DA-70258-1 Warranty 2 Years

Shipping & Returns

Expands a computer with USB A port with 4 additional USB A super-speed ports.

- Additional 7x USB A 3.0 ports with up to 5 Gbit/s to one USB A port
- The sturdy metal housing and the various mounts allow flexible mounting on support rails or various surfaces
- 15kV ESD protection: The USB hub is protected against electrostatic discharge, making it particularly suitable for use in industrial environments.
- Thanks to the Super-Speed USB 3.0 standard, fast data transfer rates of up to 5 Gbit/s are possible - Due to the backwards compatibility, USB 2.0 & USB 1.1 are also supported.
- The integrated DC jack connection enables the USB Hub to be additionally supplied with power.
- Compatible with many operating systems e.g. macOS, Windows and Google Chrome OS

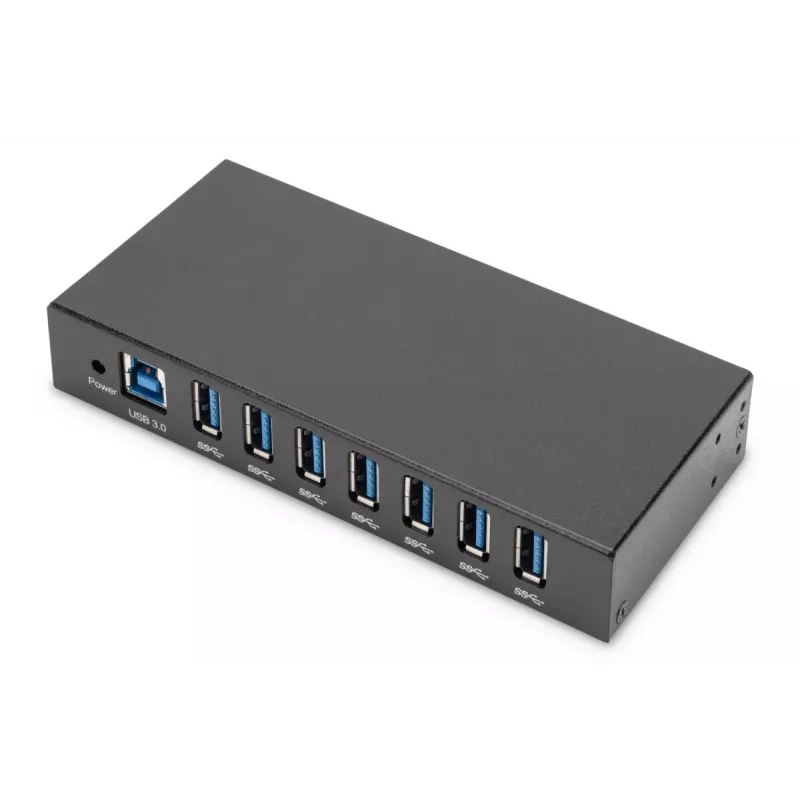

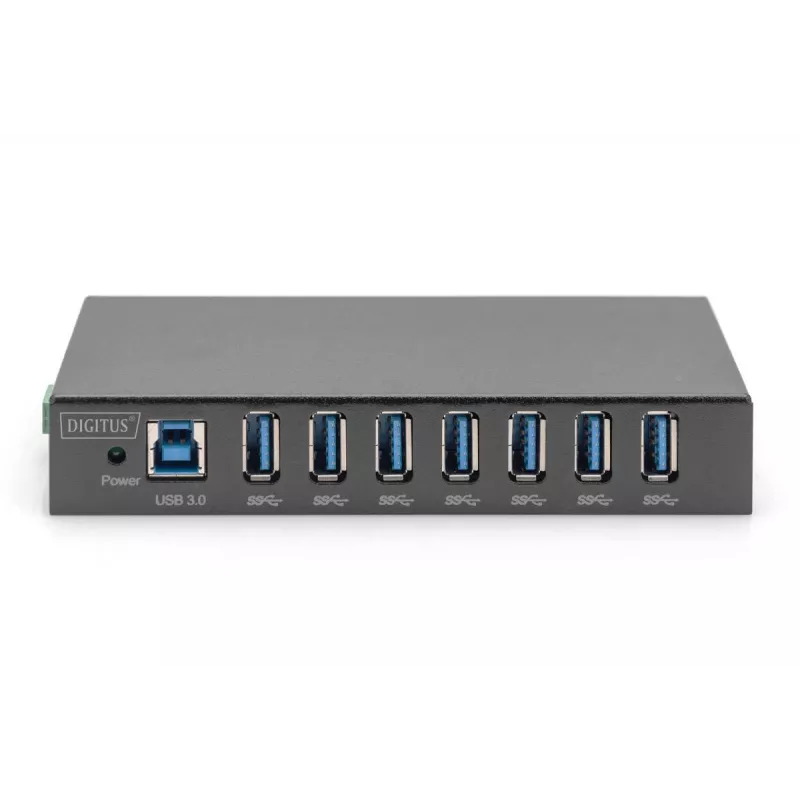

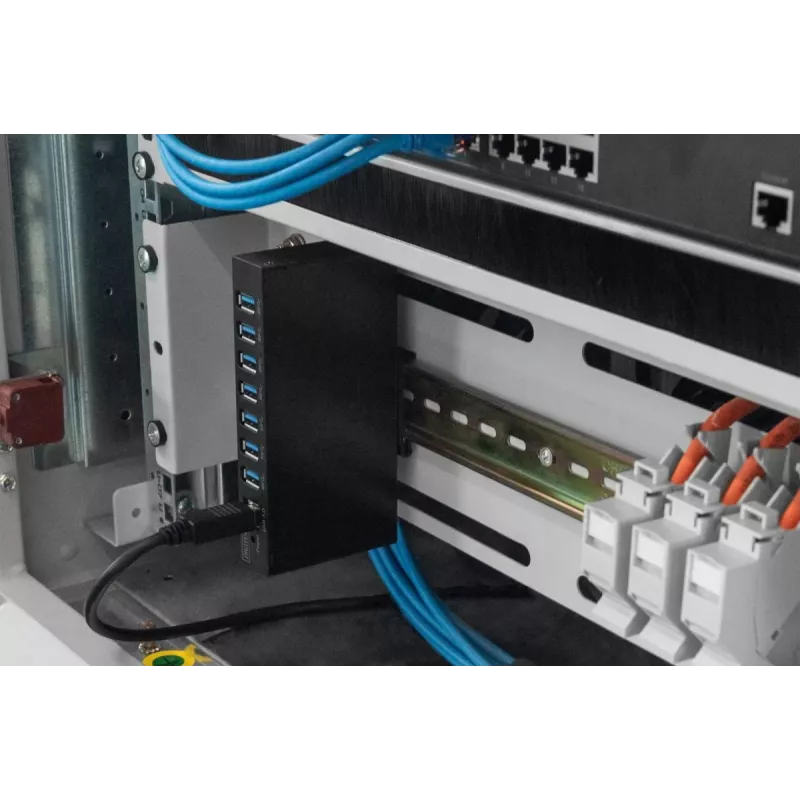

The DIGITUS® Industrial USB 3.0 Hub is ideal for industrial applications due to its metal housing. It can be mounted on the wall or on a carrier rail and is connected to a computer, notebook or server with the included USB 3.0 cable. USB 3.0 superspeed with a data transfer rate of up to 5 Gbit/s is supported, at the same time the hub is downward compatible to USB 2.0 and USB 1.1. The hub can be powered via a two-wire terminal block connector (+9V to 24V). Optionally, an external power supply can be connected to the DC jack.

Key Highlights
  • USB 3.0 metal Hub with seven downstream ports
  • Battery Charging Specification BC1.2 (SDP), maximum 31.5 W (6.3 A @ 5 V)

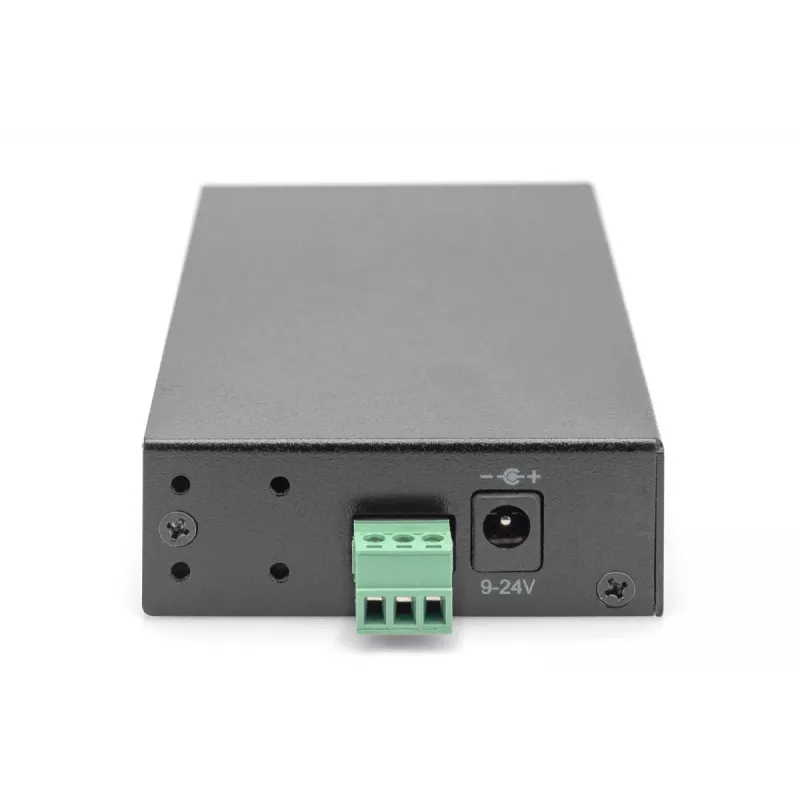

  • Power supply: +9 V to +24 V DC via terminal block or DC jack (Dimensions: (OD) 5.50mm x (ID) 2.0mm (L) x 10mm)
  • Automatic detection of input polarity at the power terminal block
  • ESD protection up to 15 kV for all ports

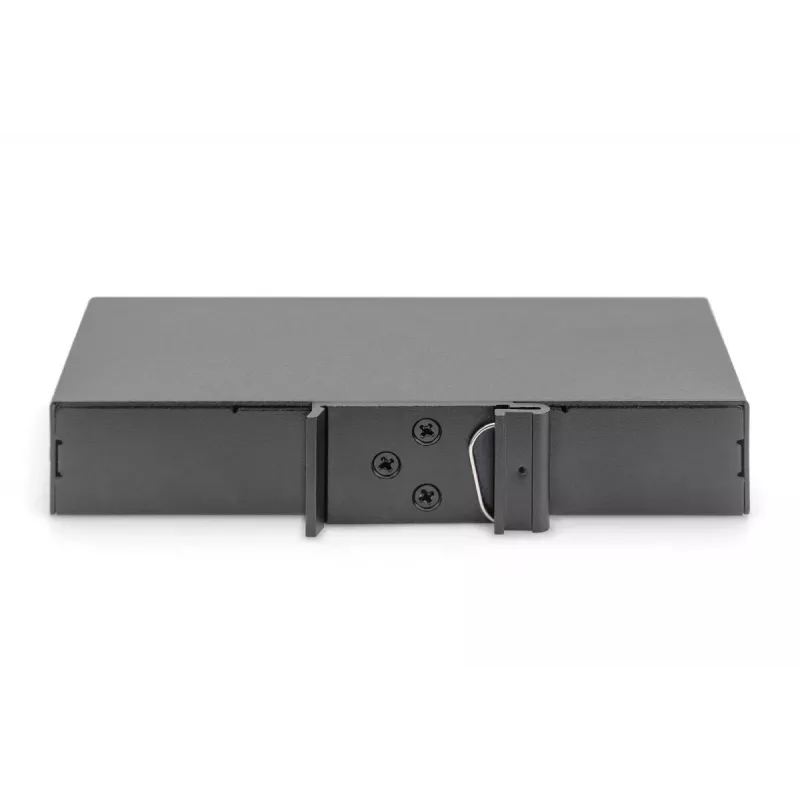

  • Includes detachable wall mounting kit and DIN rail kit
  • Compact industrial design with metal housing
  • Weight: 304 g
  • Colour: black
  • Dimensions: L 13,9 x W 6,9 x H 2,5 cm
  • Operating temperature: 0°C - 40°C (35°F to 100°F)
Specifications
Battery charging capability
Yes
Battery charging revision
1.2
Cables included
USB Type-A to USB Type-B
Country of origin
China
Data transfer rate
5000 Mbit/s
DC-in jack
Yes
Depth
139 mm
DIN rail kit included
Yes
Electrostatic Discharge (ESD) protection (contact)
15 kV
Height
25 mm
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Housing material
Metal
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Input voltage
9 - 24 V
LED indicators
Power
Maximum operating temperature
40 °C
Minimum operating temperature
0 °C
Output current
6.3 A
Output voltage
5 V
Package depth
184 mm
Package height
62 mm
Package type
Box
Package volume
2395 cm³
Package weight
800 g
Package width
210 mm
Plug and Play
Yes
Ports quantity
7
Power consumption (max)
31.5 W
Power supply type
DC
Product colour
Black
Quantity per pack
1 pc(s)
Surge protection
Yes
Terminal block included
Yes
Terminal block port
Yes
UK Trade Tariff code
84718000
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
Wall mounting kit
Yes
Weight
304 g
Width
69 mm
