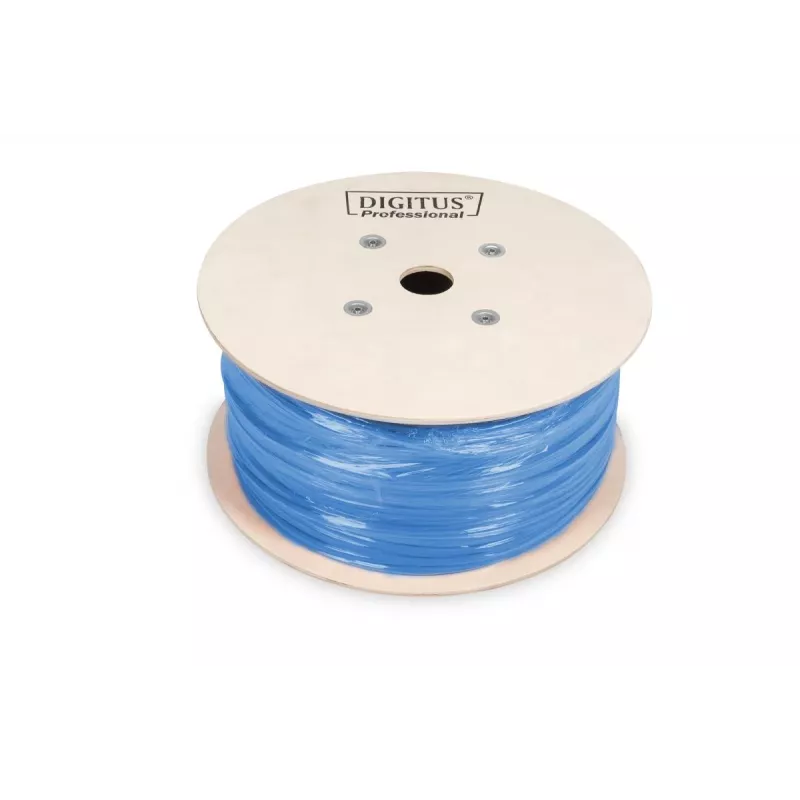

DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue

DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
DIGITUS installation cable - CAT6a - U/FTP - AWG 23/1 - 305m - Blue
R6,137
Future-oriented standards and high-end quality for your network.- 10GBit Ethernet- 500 MHz transmission frequency- PoE Power over Ethernet support- CPR class EcaThe Digitus® Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission f... Read More
Stock 16 Code 129317 Brand DIGITUS Model DK-1623-A-VH-305 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 500 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Eca

The Digitus® Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.

Key Highlights
  • Physical properties:
  • Conductor: Bare copper wire, AWG 23/1
  • System(s) for the assessment and verification of
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
  • Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH
  • Outer sheath thickness (nominal): 0.5 mm (Eca); 0.6 mm (Dca); 0.8 mm (Cca); 0.8 mm (B2ca)
  • Outer casing color: Light blue (RAL 5012)
  • Mechanical properties:
  • Strain relief: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -20 °C to +75 °C
  • Installation temperature range: 0 °C to +50 °C
  • Outer diameter: 7.0 mm (Eca); 7.2 mm (Dca); 7.6 mm (Cca); 7.6 mm (B2ca)
  • Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 (Cca); 58 kg (B2ca)
  • Electrical properties:
  • Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @ 100-500 MHz;
  • Capacitance: 45 pF/m nominal @ 1 KHz
  • Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 2
  • Phase delay: 450 nS/100 m max.
  • Time delay: 25 nS/100 m max.
  • Separation class: "c" according to EN 50174-2
  • NVP: 70%
Specifications
AWG wire size
23/1
Cable length
305 m
Cable shielding
U/FTP (STP)
Cable standard
Cat6a
Certification
CPR class Eca
Conductor type
Solid
Connector 1
No
Connector 2
No
Country of origin
China
Frequency
500 MHz
Harmonized System (HS) code
84733080
Jacket material
Low smoke zero halogen (LSZH)
Operating temperature (T-T)
0 - 50 °C
Package depth
370 mm
Package volume
30118 cm³
Package weight
15 kg
Package width
370 mm
Product colour
Blue
Storage temperature (T-T)
-20 - 60 °C
UK Trade Tariff code
85444920

Leaflet

Open Leaflet
