DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple

DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
DIGITUS installation cable - CAT6 - F/UTP - AWG 23/1 - 305m - Purple
R5,727
Future-oriented standards and high-end quality for your network.- 1GBit Ethernet- 250 MHz transmission frequency- PoE Power over Ethernet support- CPR class EcaThe Digitus Cat 6 F/UTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 1... Read More
Stock 80 Code 114093 Brand DIGITUS Model DK-1623-VH-305 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 9
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 1GBit Ethernet
- 250 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Eca

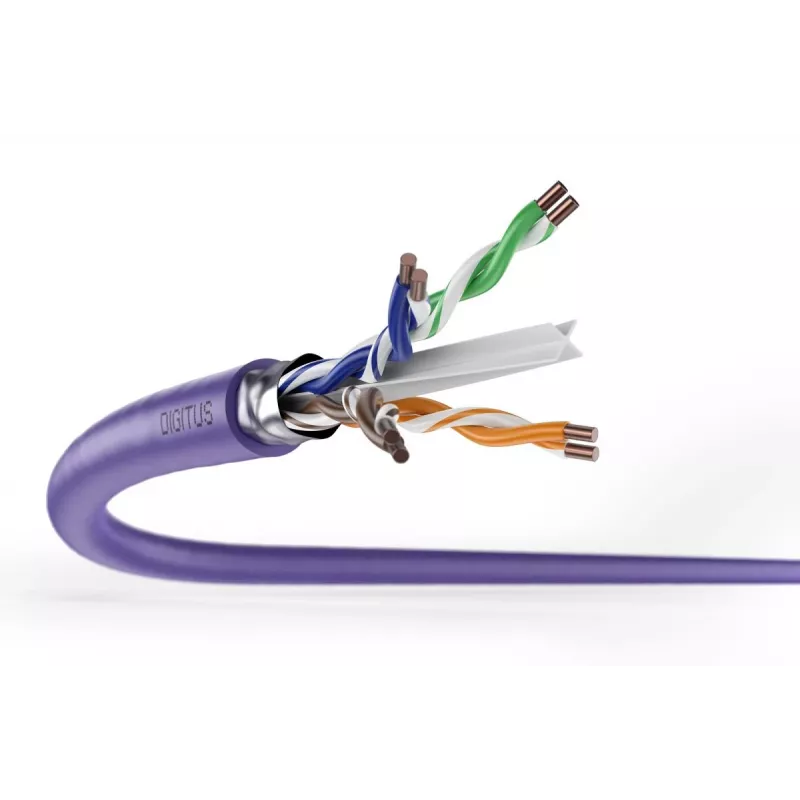

The Digitus Cat 6 F/UTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-5-1, DIN EN 50173, IEC 60332-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+.

Key Highlights
  • Physical properties:
  • Basic conductor: Solid AWG 23/1, bare annealed copper, diameter 0.57 mm nominal
  • System/s of AVCP: AVCP 3
  • Insulation: HD-PE
  • Total number of insulated conductors: 8, twisted in 4 pairs
  • Color code: blue-white, orange-white, green-white, brown-white
  • Individual pair shield: None
  • Overall shielding: Aluminum foil, providing 100% coverage, drain wire
  • Outer jacket: Halogen-free (FRNC-B/LSZH-1)
  • Outer jacket diameter: 0.50 mm nominal
  • Color: Purple (RAL 4005)
  • Mechanical properties:
  • Tensile loading: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Shipping- and storage temperature range: -20 °C up to +60 °C
  • Operating temperature range: -20 °C up to +75 °C
  • Installation temperature range: 0 °C up to +50 °C
  • Overall diameter: 7.0 mm nominal
  • Flame retardancy: IEC 60332-1
  • Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
  • Fire load: 295 Mj/km
  • Electrical properties:
  • Mean impedance: 100±5Ohm at 1MHz - 600MHz
  • Capacitance: 48 pF/m nominal @ 800 Hz
  • Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
  • Voltage resistance: 72 Vdc max.
  • Coupling attenuation: 40 dB
  • Signal propagation delay: 535 nS/100 m max.
  • Propagation delay: 20 nS/100 m max.
  • NVP: 69%
Specifications
AWG wire size
23/1
Cable length
305 m
Cable shielding
F/UTP (FTP)
Cable standard
Cat6
Certification
CPR class Eca
Conductor type
Solid
Connector 1
No
Connector 2
No
Country of origin
China
Frequency
250 MHz
Harmonized System (HS) code
84733080
Jacket material
Low smoke zero halogen (LSZH)
Operating temperature (T-T)
0 - 50 °C
Package depth
395 mm
Package volume
41277.5 cm³
Package weight
17.5 kg
Package width
380 mm
Product colour
Violet
Storage temperature (T-T)
-20 - 60 °C
UK Trade Tariff code
85444920
