DIGITUS HDMI IP Extender Set - 4K/60Hz 120/200 m, One-to-Many, CAT, Black

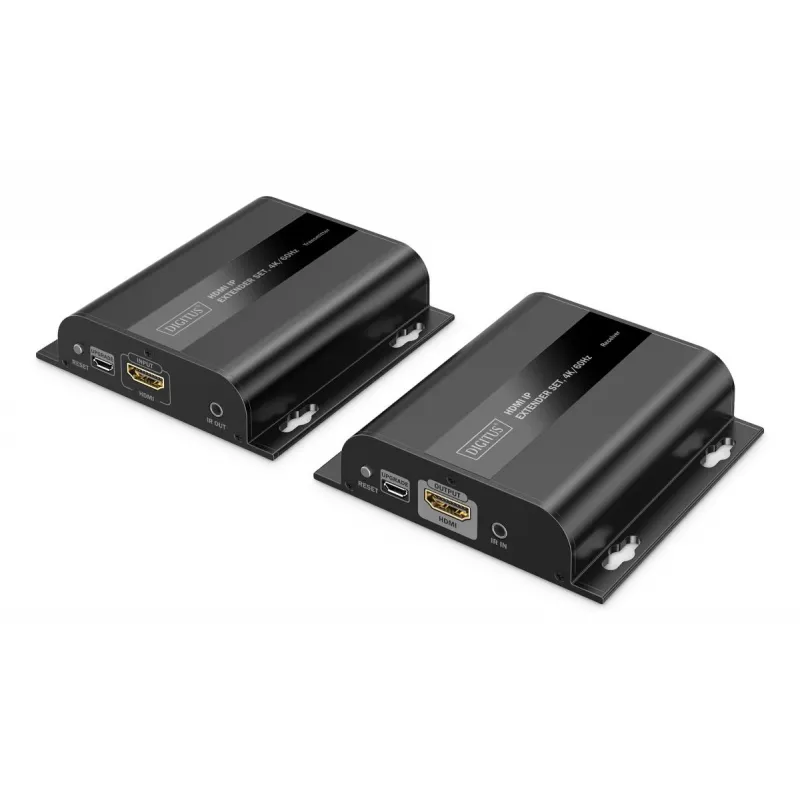

The DIGITUS AV transmitter & receiver HDMI IP Extender Set 4K/60Hz enables transmission of HDMI AV signals in ultra-high 4K resolution (4096 x 2160 at 60Hz) over long distances. In a point-to-point connection it supports cable runs up to 200 m using CAT6 or higher network cable. The system can also be expanded over IP to a point-to-multipoint configuration supporting up to 253 receivers and can use existing 1G network infrastructure with cascading via switches to extend range beyond a single link. The set includes a transmitter (TX) and receiver (RX) and supports IR remote control forwarding and wall mounting for flexible installation.

Advantages

The extender set preserves UHD picture quality with low end-to-end latency (about 150–220 ms at 4K/60Hz) and supports HDMI 2.0 and HDCP 2.2/1.4. It works with standard CAT6 or higher cables and offers a compact metal housing with low power consumption. The design allows use with existing 1G network gear for scalable, cascaded installations and additional receiver units (model DS-55352) can be added separately to build multi-display systems.

Suitable for

• Professional AV installations and conference rooms
• Digital signage and multi-display systems
• Home cinema and high-resolution media playback
• Corporate or educational facilities using existing 1G network infrastructure

Key specifications

• Max. resolution: Ultra HD 4K/60Hz (4096 x 2160p)
• Point-to-point max. range: 200 m (CAT6 or higher)
• Point-to-multipoint max. range: 120 m
• Max. cascading range per section: 120 m
• Supports CAT6 or higher network cables
• HDMI version: 2.0
• HDCP: 2.2 / 1.4
• Max. video bandwidth: 18 Gbps
• Latency: 150–220 ms (4K/60Hz); 80–130 ms (Full HD)
• Supports up to 253 receiver units
• Wall-mountable metal housing, colour: Black
• Protection: short circuit, overvoltage, ESD
• Transmitter (TX) connections: 1× HDMI input (4K/60Hz), 1× RJ45 output (Gigabit Ethernet), 1× IR output, 1× DC 5V/1A power input, 1× Micro USB (FW update), Reset button, 3× status LEDs
• Receiver (RX) connections: 1× HDMI output (4K/60Hz), 1× RJ45 input (Gigabit Ethernet), 1× IR input, 1× DC 5V/1A power input
• Operating temperature: -20 °C to 60 °C
• Power consumption: TX ≈ 3.5 W, RX ≈ 2.5 W
• Dimensions (one unit): 9.7 × 9.4 × 2.4 cm
• Weight: TX 156 g, RX 154 g

How to use

Connect the HDMI source (player, PC, set-top box) to the transmitter HDMI input and connect the transmitter RJ45 output to a CAT6 (or higher) cable running to the receiver. Connect the receiver RJ45 input to the CAT cable and the receiver HDMI output to the display. Provide 5 V DC power to both transmitter and receiver. For multi-display use, connect the transmitter into a 1G network switch and cascade additional switches or receivers as required. Use the IR ports to forward remote control commands between source and display.

Recommendations

For best performance use high-quality shielded CAT6 or higher cables, keep individual cable runs within the specified 120–200 m limits depending on topology, and ensure network switches are Gigabit-rated when expanding over IP. Add model DS-55352 receivers for additional displays and place units on a stable surface or fixed to a wall using the mounting points.
