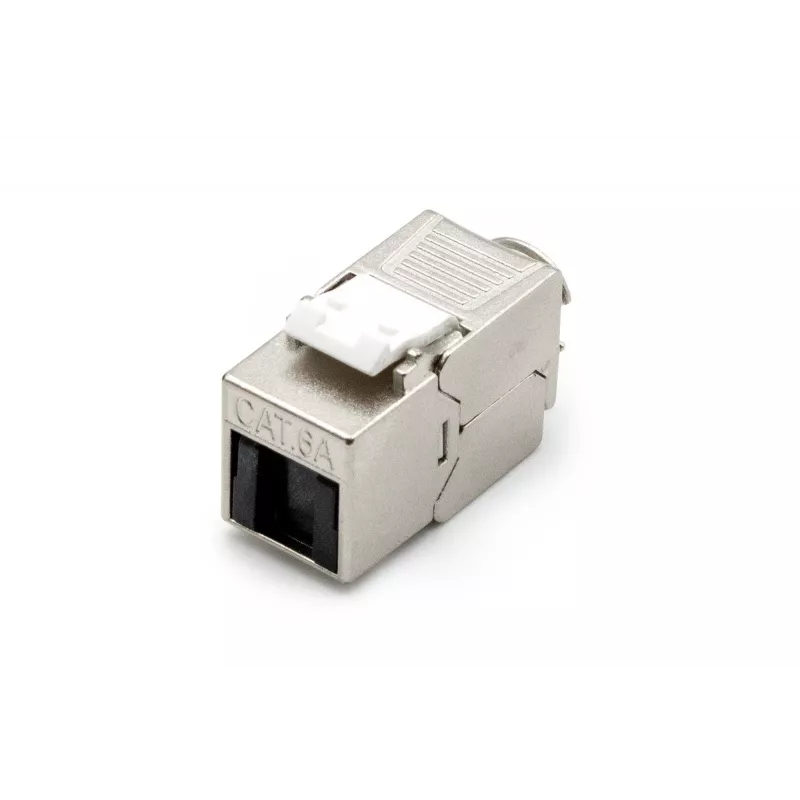

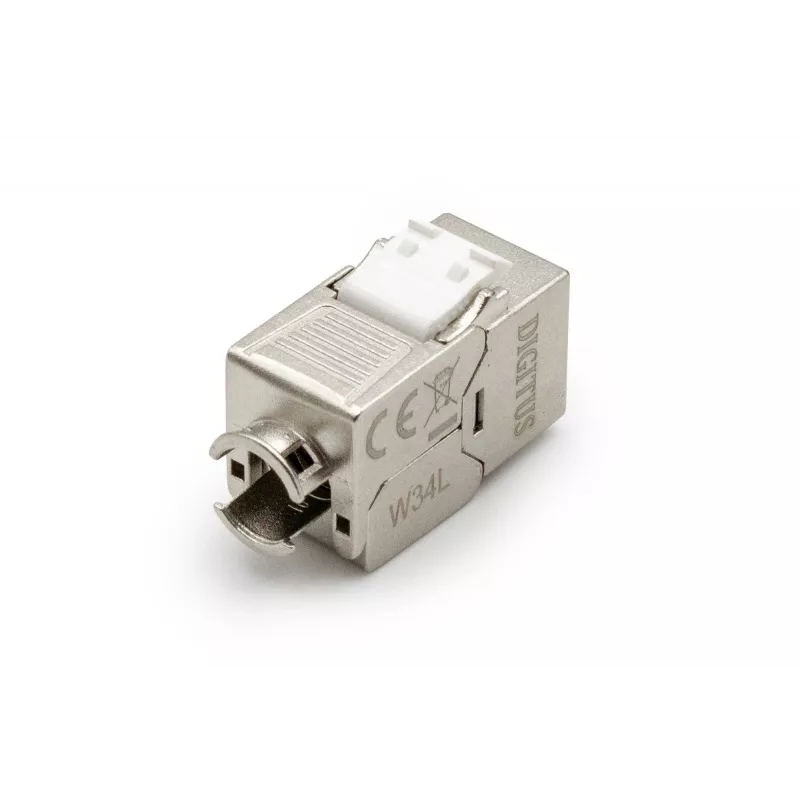

DIGITUS DN-93615-D CAT 6A Shielded Keystone Module, Tool-Free, Zinc Die-Cast, 10GBase-T, 500 MHz, T568A/B, PoE++

Ordinary keystone jacks demand punch-down tools and often sacrifice shielding integrity, but the DIGITUS DN-93615-D CAT 6A module eliminates both compromises. This shielded FTP/STP jack features a tool-free IDC termination that lets installers terminate cables in seconds without sacrificing connection quality. The die-cast zinc housing delivers maximum mechanical stability and superior EMI protection, making it a future-proof choice for high-density 10 Gigabit network installations where performance and reliability are non-negotiable.

Highlights

• Tool-free IDC termination – no punch-down tool required, ideal for fast on-site assembly
• Full CAT 6A / Class EA performance with 10GBase-T support up to 500 MHz
• Die-cast zinc housing for maximum mechanical stability and shielding effectiveness
• Gold-plated contacts (50µ") ensure low contact resistance and long-term corrosion resistance
• Supports AWG 22-24 solid and stranded conductors, T568A & T568B wiring schemes
• PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) compliant for high-power applications
• Snap-in mounting fits all standard 19.2 x 14.9 mm keystone openings

In daily use

This module excels in structured cabling systems where installation speed and consistent performance matter. The tool-free IDC mechanism allows installers to terminate cables in seconds without sacrificing connection integrity. The shielded design, combined with the zinc die-cast body, effectively blocks alien crosstalk and electromagnetic interference, ensuring stable 10G links even in electrically noisy environments. With over 750 insertion cycles, the jack withstands frequent moves, adds, and changes in demanding commercial and industrial settings.

Full specifications

• Network Standard: CAT 6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Termination Type: Tool-free IDC
• Connector Type: RJ45
• Keystone Standard: 19.2 x 14.9 mm
• Housing Material: Die-cast zinc
• Contact Plating: Gold-plated contacts (50µ")
• Wire Gauge Support: AWG 22-24 (solid and stranded)
• Wiring Scheme: T568A & T568B (color coded)
• Transmission Speed: 10 Gigabit Ethernet (10GBase-T)
• Frequency Bandwidth: Up to 500 MHz
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Installation: Snap-in mounting
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +70°C
• Humidity: 10% - 90% RH (non-condensing)
• Insulation Resistance: > 500 MΩ
• Dielectric Strength: 1000 VDC (RMS, 60 Hz, 1 min)
• Insertion Cycles: > 750

Final note

For installers and network administrators who refuse to compromise on speed, shielding, or ease of installation, the DIGITUS DN-93615-D is the definitive CAT 6A keystone module. Its tool-free design and rugged zinc housing make it a dependable cornerstone for any high-performance cabling infrastructure.
