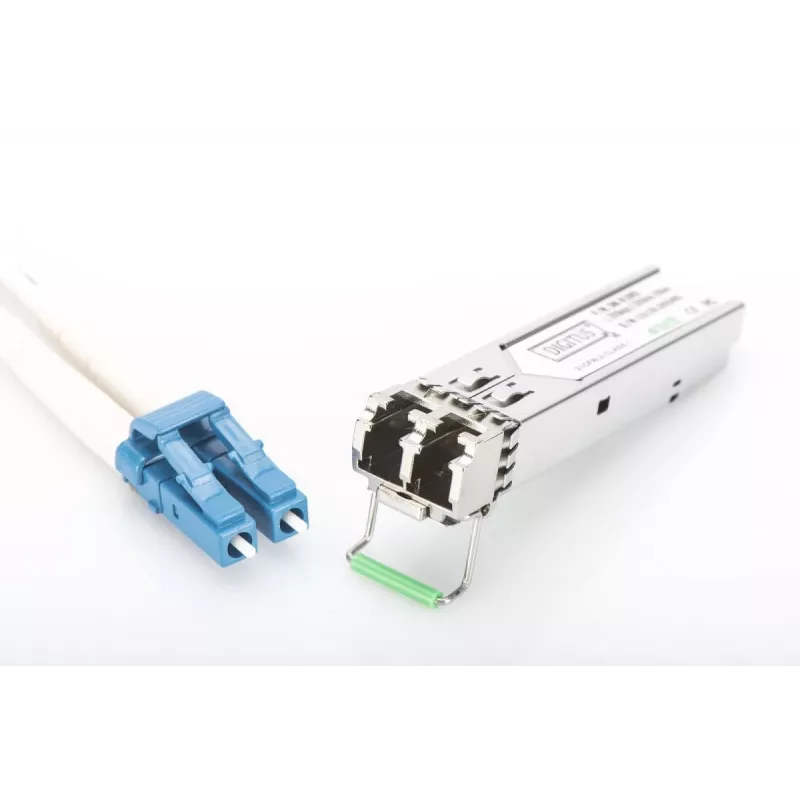

DIGITUS 1.25 Gbps SFP Module, Up to 80km Singlemode, LC Duplex Connector 1000Base-LX, 1550nm

DIGITUS 1.25 Gbps SFP Module, Up to 80km Singlemode, LC Duplex Connector 1000Base-LX, 1550nm
DIGITUS 1.25 Gbps SFP Module, Up to 80km Singlemode, LC Duplex Connector 1000Base-LX, 1550nm
DIGITUS 1.25 Gbps SFP Module, Up to 80km Singlemode, LC Duplex Connector 1000Base-LX, 1550nm
DIGITUS 1.25 Gbps SFP Module, Up to 80km Singlemode, LC Duplex Connector 1000Base-LX, 1550nm
DIGITUS 1.25 Gbps SFP Module, Up to 80km Singlemode, LC Duplex Connector 1000Base-LX, 1550nm
DIGITUS 1.25 Gbps SFP Module, Up to 80km Singlemode, LC Duplex Connector 1000Base-LX, 1550nm
R705
The plug and play fiber connection- The Plug & Play fiber optic link enables quick installation- Sends data in high quality and additionally provides excellent reliability- Distance up to 80km at a maximum data rate of 1.25Gbps- Operating temperature: 0 °C ~ 70 °CThe DIGITUS® mini GBIC (SFP) transce... Read More
Stock 26 Code 117588 Brand DIGITUS Model DN-81002 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 80km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Key Highlights
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
  • High quality and excellent reliability
  • 1.25 Gbps Maximum Data Rate
  • Compliant to IEEE 802.3z Gigabit Standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • Connector: 1x LC Duplex
  • 1000Base-ZX - For Long Haul
  • Wavelength: 1550nm
  • Transmission Power: Minimum 0 dBm, Maximum 5 dBm
  • Sensitivity Receiving Power: Minimum -32 dBm
  • For a Distance of up to 80km
  • Suitable for 09/125µm Singlemode Fiber Cables
  • Safe fast-locking mechanism
  • 3.3V power supply
  • Operating temperature: 0 °C ~ 70 °C
Specifications
Brand compatibility
MSA Compliant
Cabling technology
1000Base-LX
Country of origin
China
Digital Diagnostics Monitoring (DDM)
No
Ethernet interface type
Gigabit Ethernet
Fiber cable diameters supported (core/cladding)
9/125 µm
Fiber optic connector
LC
Fiber ports quantity
1
Harmonized System (HS) code
85369010
Hot-Plug support
Yes
Input voltage
3.3 V
Interface type
SFP
Maximum data transfer rate
1250 Mbit/s
Maximum transfer distance
80000 m
Networking standards
IEEE 802.3z
Package depth
90 mm
Package volume
310.5 cm³
Package weight
35.417 g
Package width
115 mm
Plug and Play
Yes
Rx power (min)
-32 dBmW
SFP transceiver standard
LX
SFP transceiver type
Fiber optic
Single-mode fiber (SMF) supported
Yes
Tx power (max)
5 dBmW
Tx power (min)
0 dBmW
UK Trade Tariff code
85176200
Wavelength
1550 nm

Leaflet

Open Leaflet
