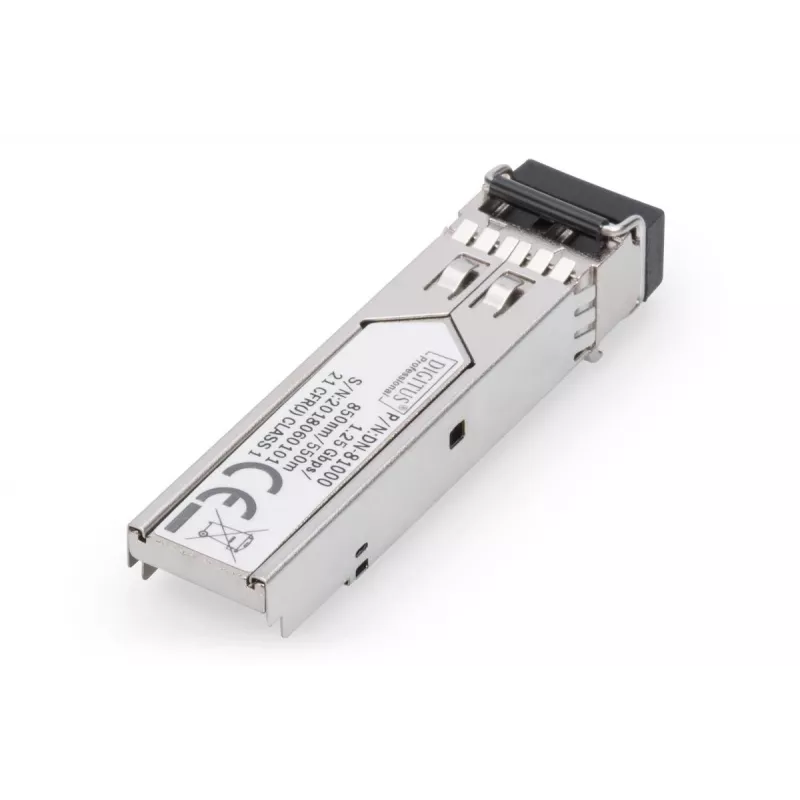

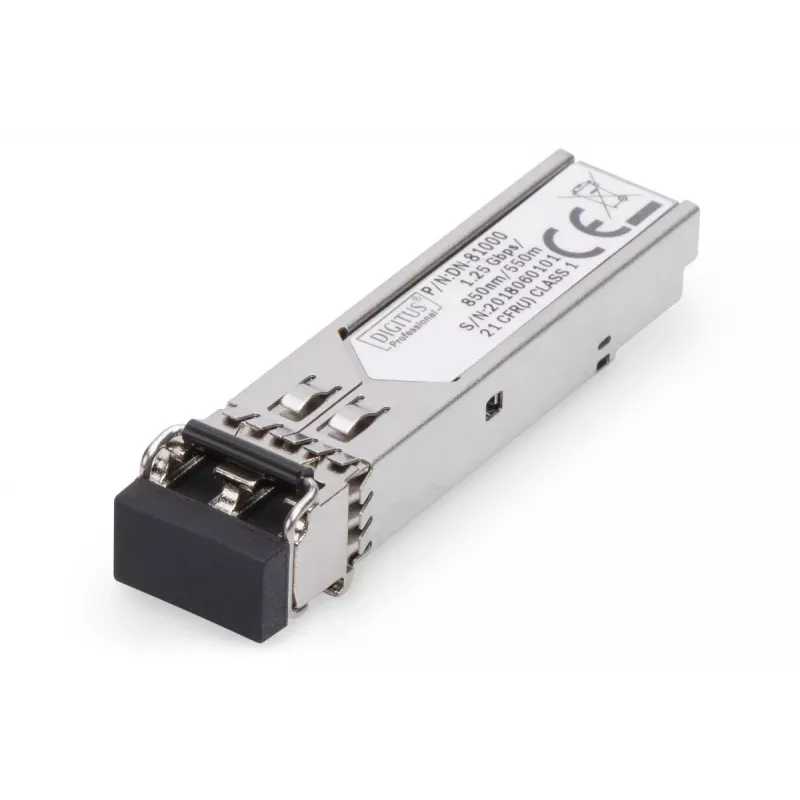

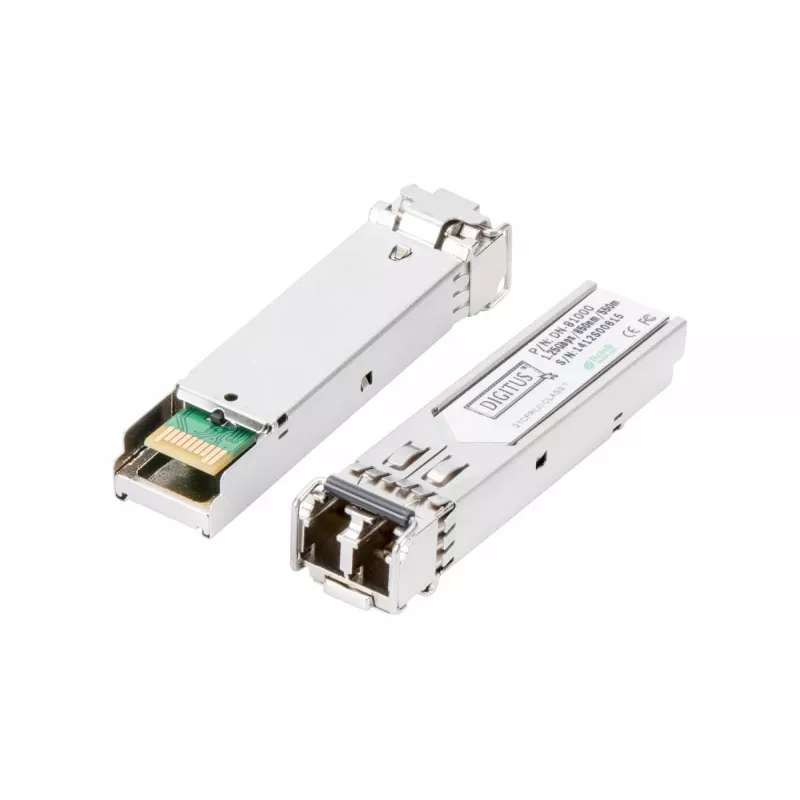

DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm

DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
DIGITUS 1.25 Gbps SFP Module, Up to 550m Multimode, LC Duplex Connector 1000Base-SX, 850nm
R234
The plug and play fiber connection- The Plug & Play fiber optic link enables quick installation- Sends data in high quality and additionally provides excellent reliability- Distance up to 0,55km at a maximum data rate of 1.25Gbps- Operating temperature: 0 °C ~ 70 °CThe DIGITUS® mini GBIC (SFP) trans... Read More
Stock 1 Code 117875 Brand DIGITUS Model DN-81000 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 0,55km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Key Highlights
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
  • High quality and excellent reliability
  • 1.25 Gbps Maximum Data Rate
  • Compliant to IEEE 802.3z Gigabit Standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • Connector: 1x LC Duplex
  • 1000Base-SX - For Short Haul
  • Wavelength: 850nm
  • Transmission power: minimum -8 dBm, maximum -3 dBm
  • Sensitivity Receiving Power: Minimum -20 dBm
  • For a Distance of up to 0.55km
  • Suitable for 50/125µm and 62.5/125µm multimode fiber cables
  • Safe fast-locking mechanism
  • 3.3V power supply
  • Operating temperature: 0 °C ~ 70 °C
Specifications
Brand compatibility
MSA Compliant
Country of origin
China
Digital Diagnostics Monitoring (DDM)
No
Ethernet interface type
Gigabit Ethernet
Fiber cable diameters supported (core/cladding)
50/125 µm
Fiber optic connector
LC
Harmonized System (HS) code
85369010
Interface type
SFP
Maximum transfer distance
500 m
Maximum voltage
3.3 V
Multi-mode fiber (MMF) supported
Yes
Networking standards
IEEE 802.3z
Package depth
31 mm
Package volume
340.194 cm³
Package weight
35.417 g
Package width
118 mm
Plug and Play
Yes
Rx power (min)
-20 dBmW
SFP transceiver standard
SX
SFP transceiver type
Fiber optic
Tx power (max)
-3 dBmW
Tx power (min)
-8 dBmW
UK Trade Tariff code
85176200
Wavelength
850 nm
