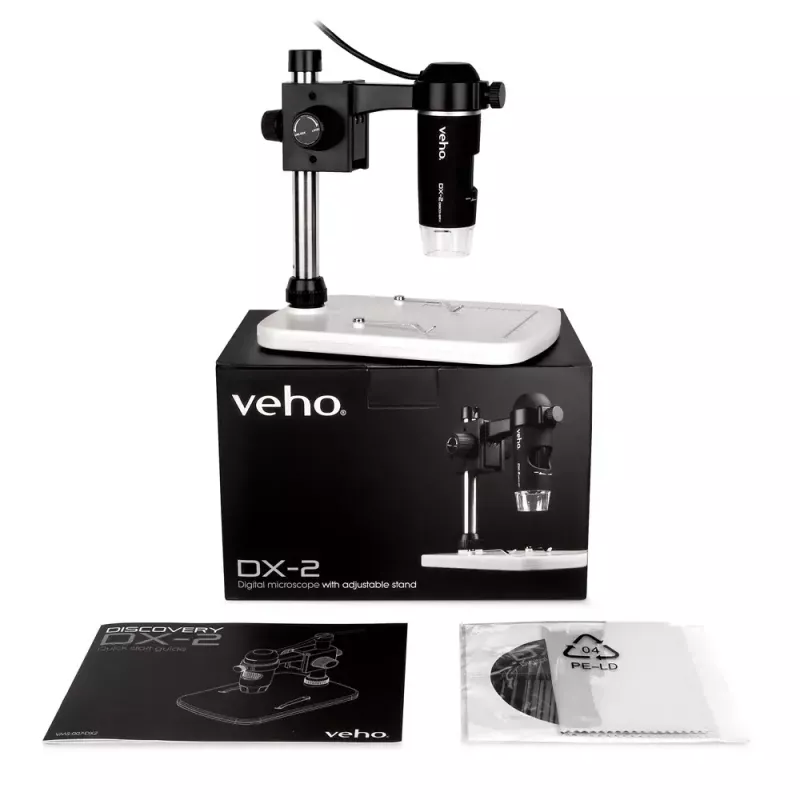

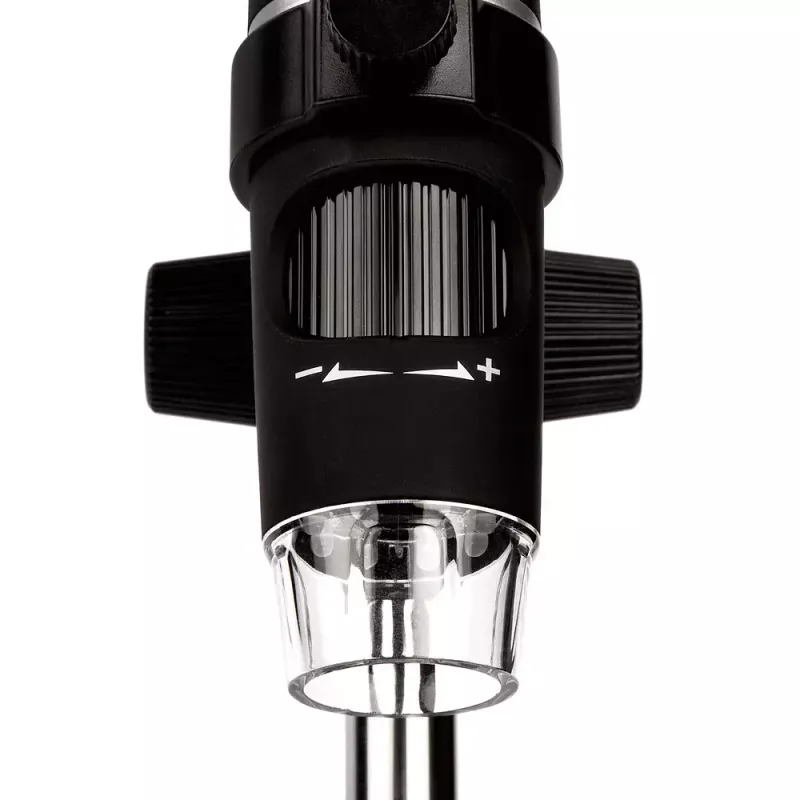

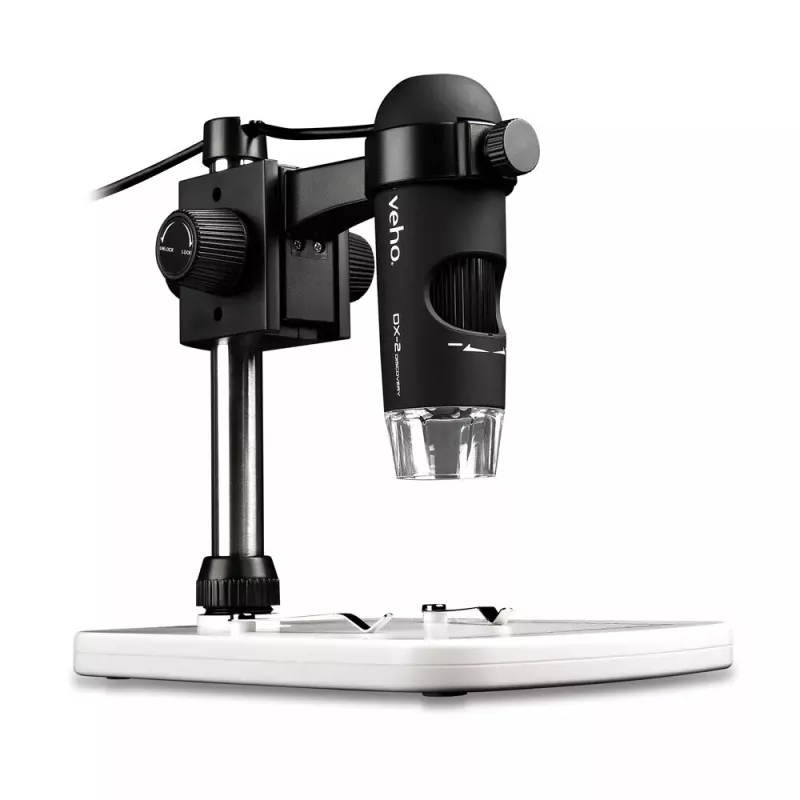

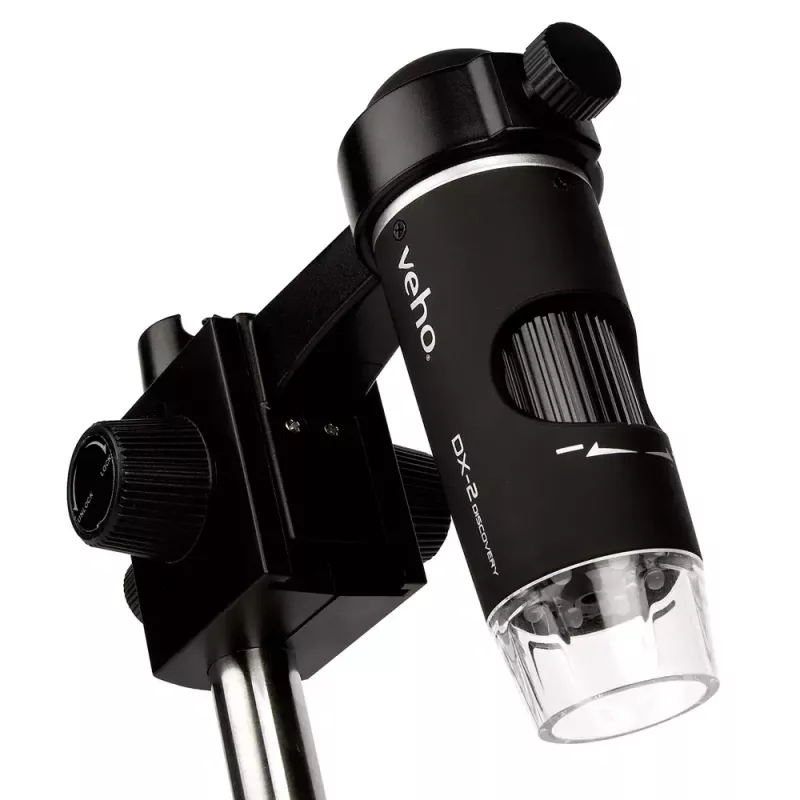

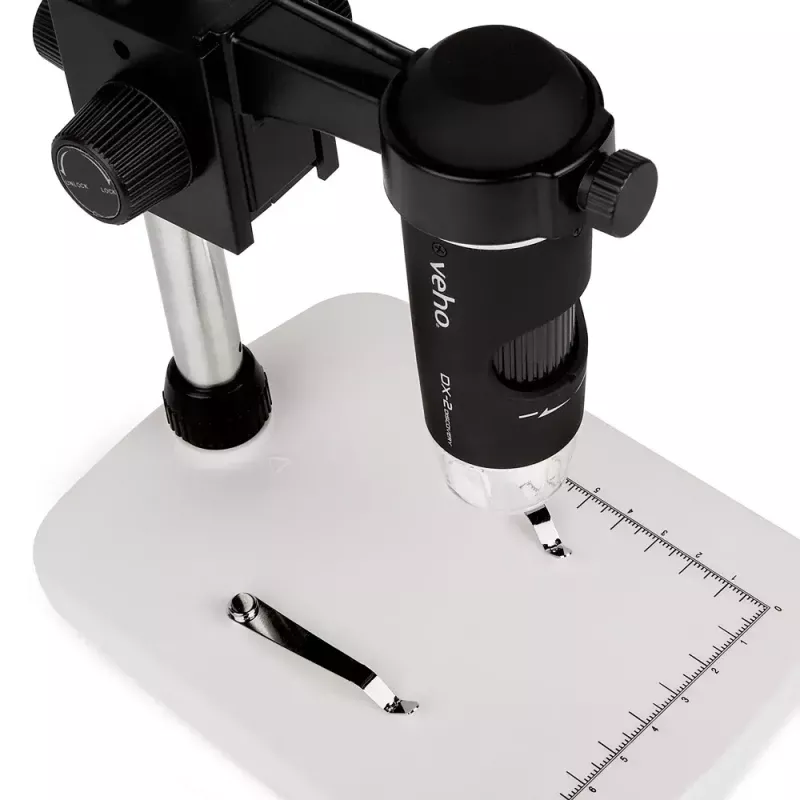

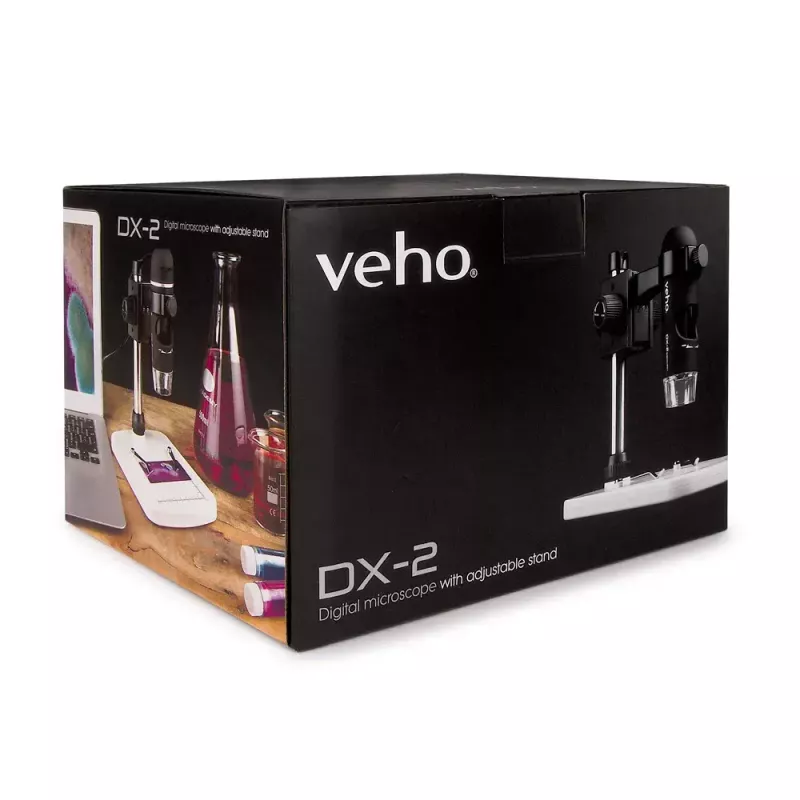

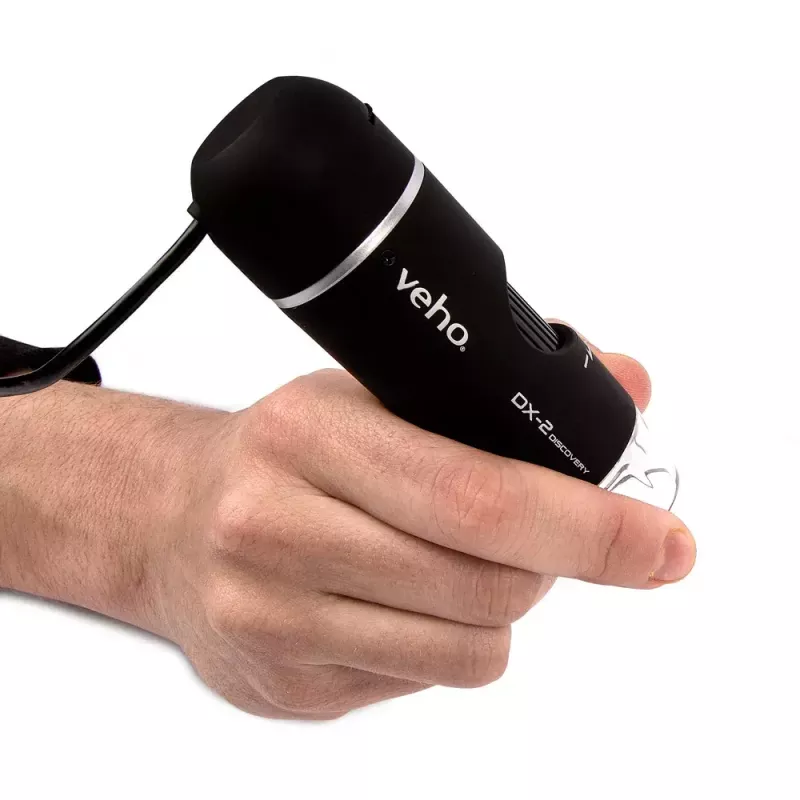

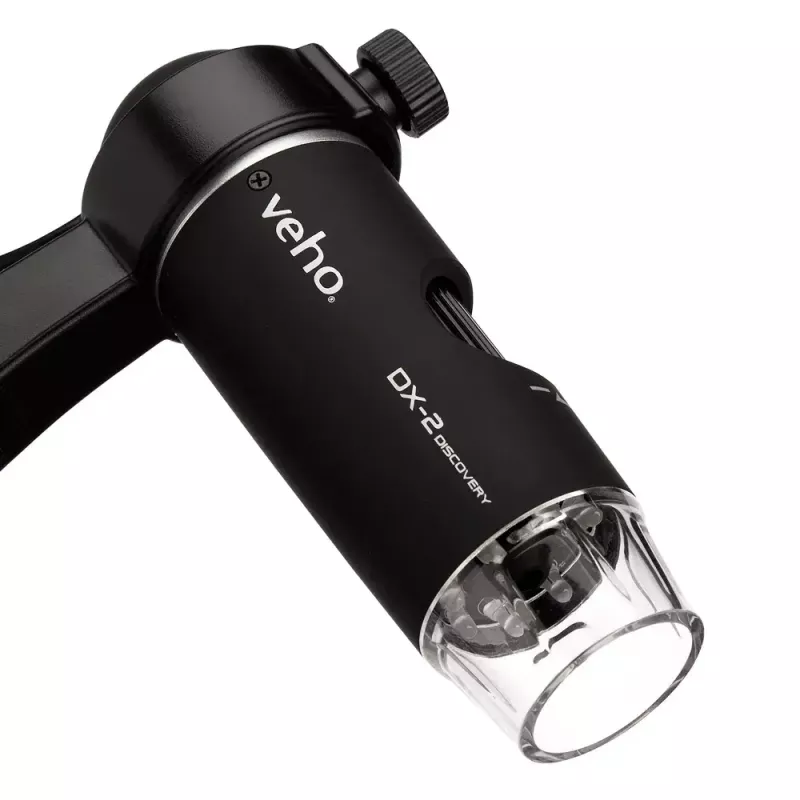

Digital Microscope Veho DX-2 USB 5MP

The Veho DX-2 USB 5MP digital microscope provides magnification from 10x up to 300x and captures images at 5 megapixel resolution (2592 × 1944). Equipped with adjustable LED illumination and a height-adjustable stand, the DX-2 is a compact USB-powered microscope suitable for detailed observation, image capture and AVI video recording in both home and professional settings.

Advantages

The microscope combines a high-resolution 5 MP sensor with a 5G optical lens to deliver clear, detailed images at various magnifications. USB power and connection simplify setup and portability. The included height-adjustable stand and calibration software improve stability and measurement accuracy, while integrated LED lighting ensures consistent illumination of specimens.

Suitable for

• Industrial inspection and quality control
• Inspection of computer components and electronics
• Laboratory research and scientific teaching
• Medical analysis and sample examination
• Plant dissection and botanical study
• Jewellery and printing inspection

Key specifications

• Model: Veho DX-2 USB 5MP (VMS-007-DX2)
• Sensor resolution: 5 MP (2592 × 1944 pixels)
• Magnification range: 10× – 300×
• Lens: 5G optical lens
• Illumination: Built-in LED light
• Video format: AVI
• Power and connection: USB
• Dimensions: 120 × 170 × 167 mm (W × D × H)
• EAN: 5060594760273

How to use

Connect the microscope to a computer via the USB cable and install the supplied calibration software if required. Place the sample on the stand and adjust the stand height and focus to obtain the desired magnification between 10× and 300×. Use the built-in LED illumination to improve visibility and capture images or AVI video through the software interface.

Recommendations

For stable imaging, mount specimens securely on the stand and adjust illumination to avoid reflections. Use the calibration software for accurate measurements and ensure the USB connection remains secure during long recordings.
