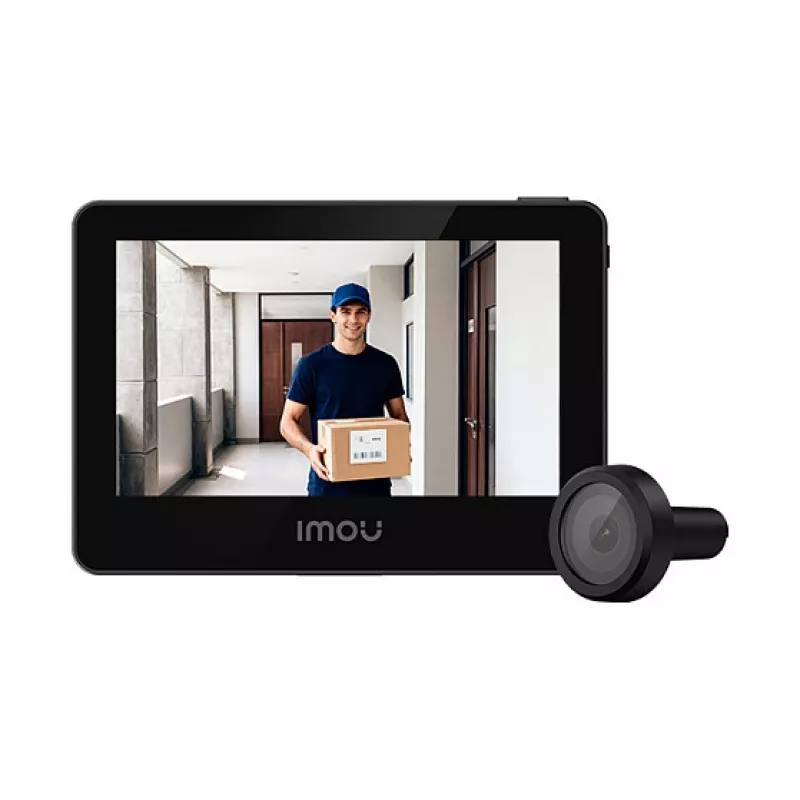

Digital door viewer IMOU VD1-5M0S — 5 MP CMOS, 125° view, 4.3 inch display, SD card, Wi‑Fi

IMOU VD1-5M0S is a digital door viewer designed for residential and apartment entry monitoring. It incorporates a 5 MP CMOS sensor and a wide 125° horizontal field of view to capture visitors at the door. The device features a 4.3" (10.9 cm) color display for clear live preview, supports microSD storage for local recording, and connects via Wi‑Fi (802.11b/g/n) for basic wireless operation. The unit has a plastic black housing and operates from a 5 V DC supply with typical power consumption of 2 W.

Advantages

The IMOU VD1-5M0S provides a high-resolution image from the 5 MP CMOS sensor combined with a 125° viewing angle that reduces blind spots at the entrance. The integrated 4.3" display allows on-site identification without the need for an external monitor. Local microSD storage support lets users keep video or snapshots on the device without mandatory cloud services. Wireless connectivity simplifies installation in locations where running Ethernet is impractical, and the low power consumption supports continuous standby use.

Suitable for

• Monitoring apartment or house entrance doors
• Identifying visitors before opening the door
• Recording short events or snapshots to local microSD storage
• Use in locations where simple wireless connectivity is preferred

Key specifications

• Image sensor: 5 MP CMOS
• Horizontal field of view: 125°
• Display: 4.3" (10.9 cm) color screen
• Wireless: Wi‑Fi 802.11b/g/n
• Power: 5 V DC, typical consumption 2 W
• Storage: microSD card support, up to 512 GB
• Housing material and color: plastic, black

How to use

Install the IMOU VD1-5M0S in the door viewer hole according to the product's mechanical dimensions and mounting instructions. Insert a compatible microSD card for local recording if required, connect the unit to a 5 V DC power supply, and complete the Wi‑Fi setup following the on-screen prompts. Use the built-in 4.3" display to view live video and recorded footage directly at the door. Adjust the unit position to ensure the desired field of view and check the image on the display before finalizing installation.

Recommendations

For reliable local recording, choose a high-endurance microSD card rated for continuous video use and format it in the device after insertion. Place the viewer at a height and angle that captures visitors’ faces within the 125° field of view. Ensure the Wi‑Fi network provides sufficient signal strength at the door location if you intend to use wireless features. Regularly check firmware updates and follow manufacturer instructions for cleaning and maintenance of the lens and display.
