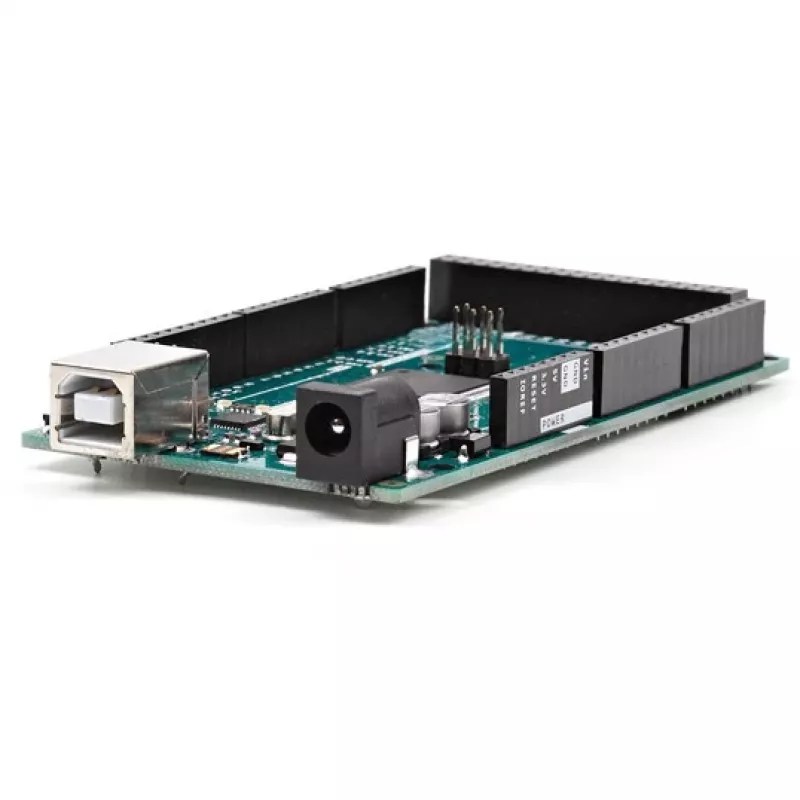

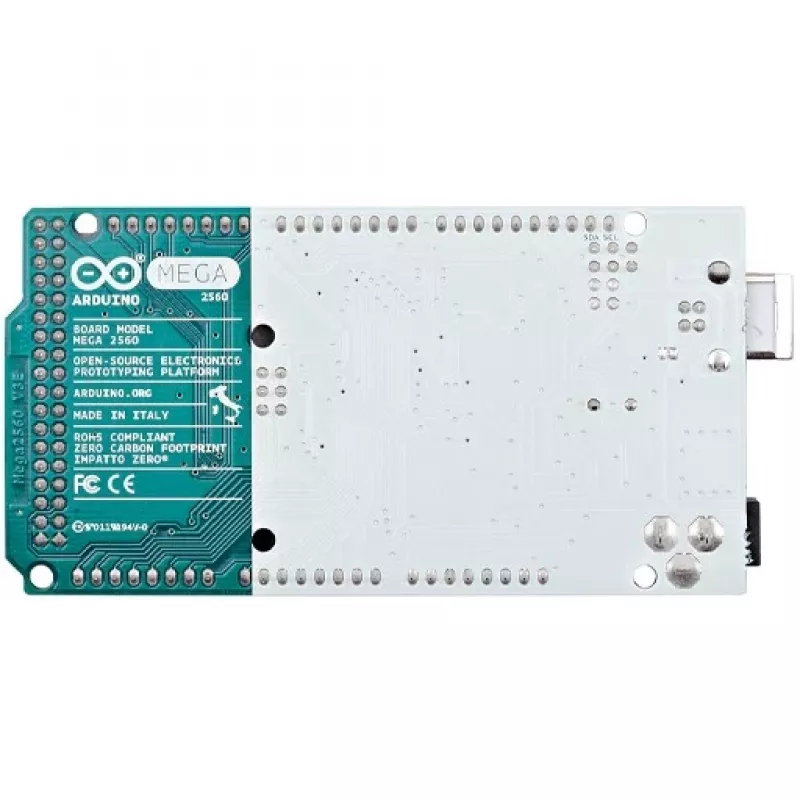

Development Board Arduino ATmega2560 16 MHz

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It provides 54 digital input/output pins (15 of which can be used as PWM outputs), 16 analog inputs, 4 hardware serial ports (UARTs), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header and a reset button. The board includes the necessary circuitry to support the microcontroller and can be powered via USB, an AC-to-DC adapter or a battery. The Mega 2560 is compatible with most shields designed for earlier Arduino boards such as the Duemilanove or Diecimila.

Advantages

The Mega 2560 offers a large number of digital and analog I/O pins suitable for complex projects, multiple hardware serial ports for simultaneous serial communication, and broad shield compatibility. It uses an ATmega16U2 USB-to-serial converter (earlier revisions used ATmega8U2), improving USB interfacing and providing easier firmware updates. Revision 3 adds additional SDA and SCL pins near AREF, IOREF and a reserved pin near RESET for better shield voltage compatibility, and a stronger reset circuit.

Key specifications

• Microcontroller: ATmega2560
• Digital I/O pins: 54 (15 PWM outputs)
• Analog inputs: 16
• Hardware serial ports: 4 (UART)
• Clock speed: 16 MHz
• USB interface: ATmega16U2 (earlier revisions: ATmega8U2)
• Power options: USB, AC-to-DC adapter, battery
• Headers and connectors: power jack, ICSP header, reset button
• Compatibility: shields for Arduino Duemilanove/Diecimila; improved pinout (SDA, SCL, IOREF) on R3

How to use

Connect the Mega 2560 to a computer via a USB cable to program and power the board, or supply power using an appropriate AC-to-DC adapter or battery. Install the Arduino IDE or compatible software on your computer, select the Arduino Mega 2560 board type and the correct serial port, then upload sketches through the USB connection. Use the digital and analog pins according to your circuit needs, taking note of PWM-capable pins and the available UART ports for serial devices. When using shields, verify voltage compatibility and the presence of SDA/SCL or IOREF pins if required by the shield.

Recommendations

For reliable operation, use a stable 5V power source and ensure shields are compatible with the Mega 2560 pinout (R3 features SDA, SCL and IOREF). Keep USB drivers and the Arduino IDE up to date and follow the microcontroller datasheet limits for voltage and current on I/O pins.
