Desktop Zotac ZBOX edge CI343 N100 3.4 GHz 16 GB SSD

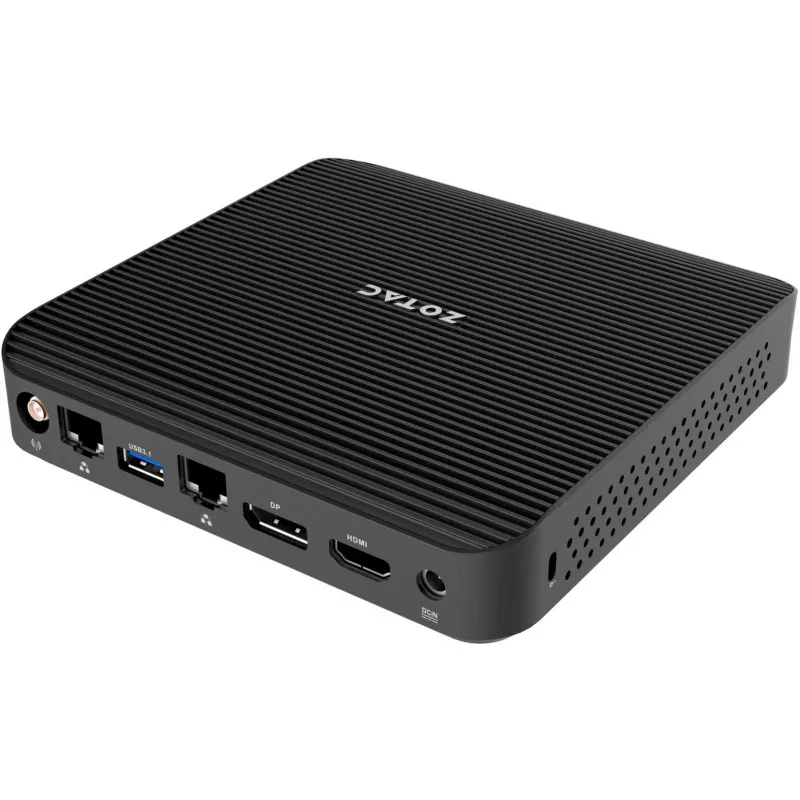

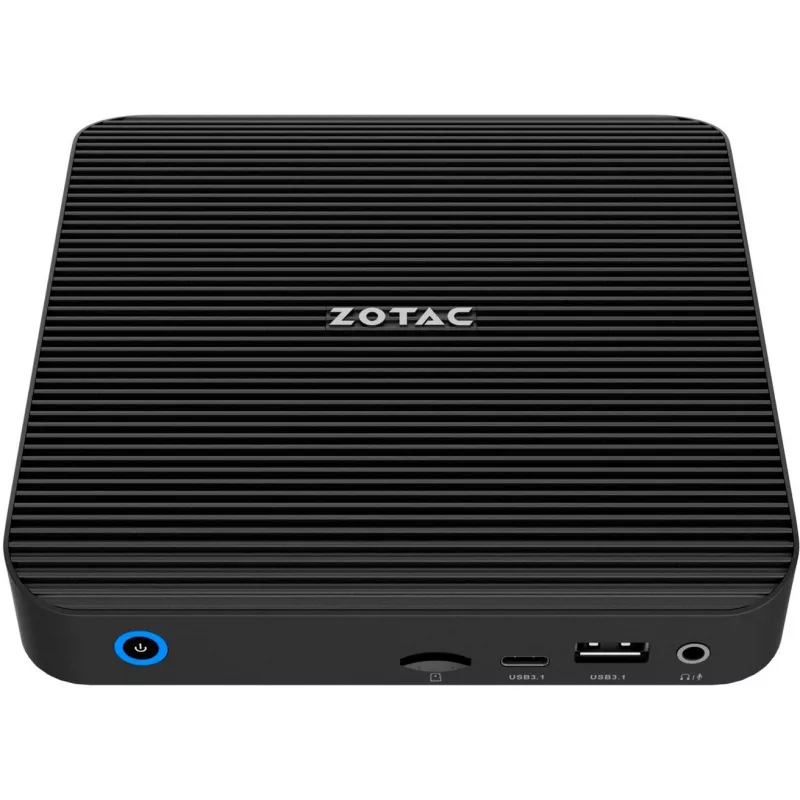

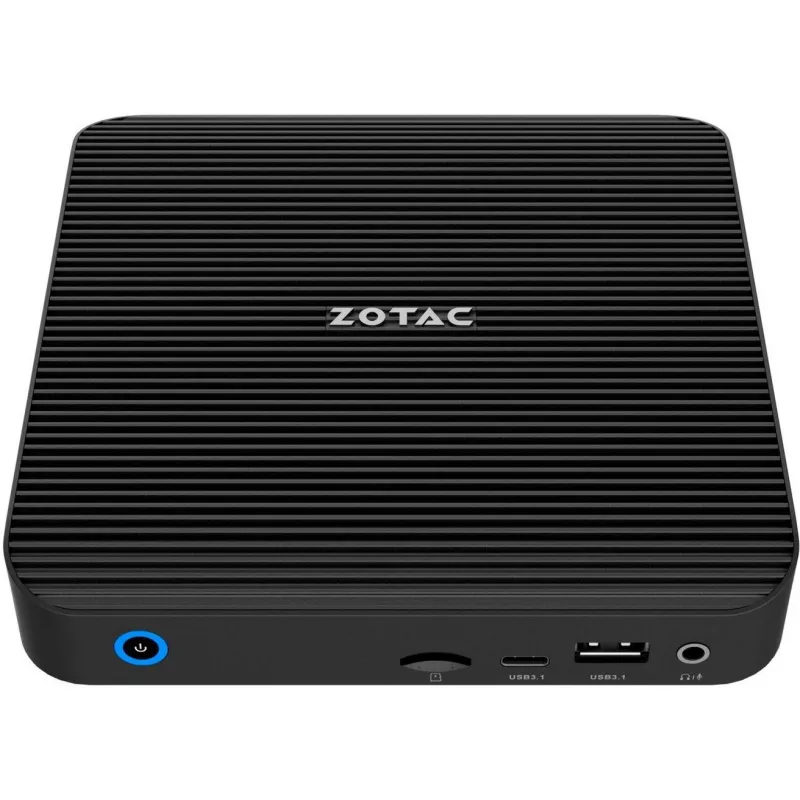

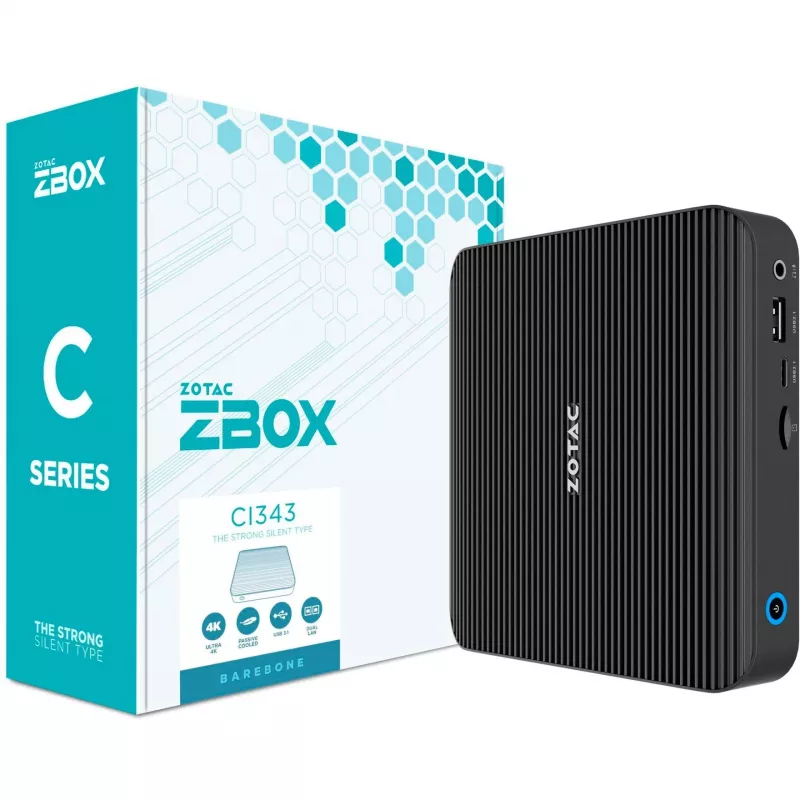

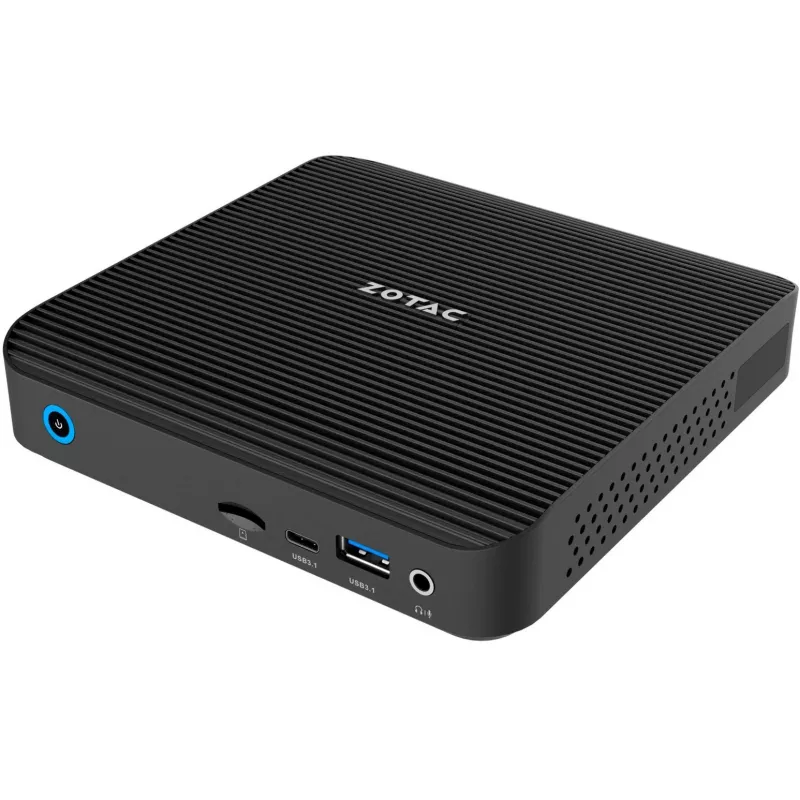

The ZOTAC ZBOX edge CI343 is an ultra-thin, fanless mini PC designed for quiet, energy-efficient operation. Built around an Intel N100 processor (up to 3.4 GHz) and passive cooling, the CI343 provides multiple display outputs, a wide range of I/O ports and both wired and wireless networking options while maintaining a low-profile 32 mm chassis.

Advantages

The fanless design eliminates moving parts for silent operation and improved reliability. Its slim 32 mm form factor allows flexible installation or mounting in tight spaces. Integrated Intel UHD Graphics support up to three displays at 4K@60Hz via HDMI 2.0b, DisplayPort 1.4 and DP over USB-C. Connectivity includes dual Gigabit Ethernet, Wi‑Fi 6 and Bluetooth 5.2. The system supports upgradable memory (up to 16 GB DDR5) and M.2 SSD storage while keeping low power consumption.

Suitable for

• Edge computing and digital signage (multi-display 4K)
• Quiet office workstations and compact desktop setups
• IoT gateways and remote connectivity platforms
• Home media playback and everyday computing tasks

Key specifications

• Processor: Intel N100, up to 3.4 GHz
• Memory support: up to 16 GB DDR5 (2 slots)
• Storage: M.2 SSD support; PCIe and SATA interfaces
• Graphics: Intel UHD Graphics; HDMI 2.0b, DisplayPort 1.4, DP via USB-C
• Networking: Dual Gigabit Ethernet, Wi‑Fi 6 (802.11ax), Bluetooth 5.2
• Cooling: Fanless passive cooling; chassis height 32 mm
• Power supply: low power design (40 W external adapter)
• Color: Black

How to use

Install DDR5 SO-DIMM modules and an M.2 SSD by removing the access panel to reach internal slots. Connect displays using HDMI, DisplayPort or USB-C with DP. For wired networks use one of the Gigabit Ethernet ports; enable Wi‑Fi 6 and Bluetooth 5.2 for wireless connectivity. Use the included mount to attach the unit under a desk or behind a monitor for a compact setup. After hardware installation, connect the external power adapter and install your preferred operating system and drivers.

Recommendations

For best thermal reliability and silent operation, keep ventilation openings unobstructed. Use SSD storage to preserve the fanless design benefits and select memory configurations within the supported 16 GB limit. For multi-display setups, verify cable and adapter compatibility with HDMI 2.0b and DisplayPort 1.4 specifications.
