DELTA BRU-1 Pole Mount Bracket for Antennas and Cameras

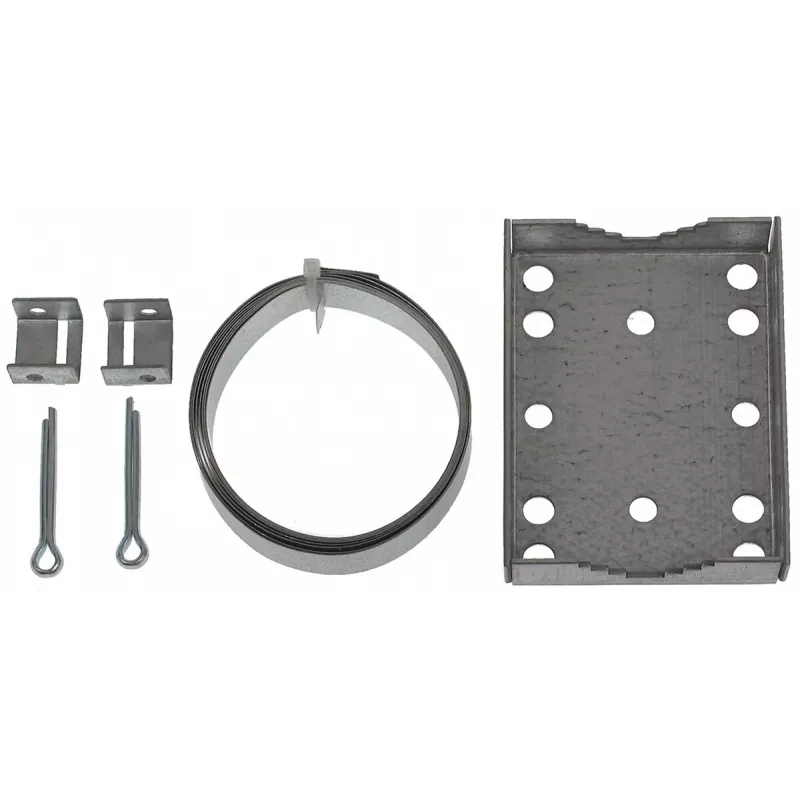

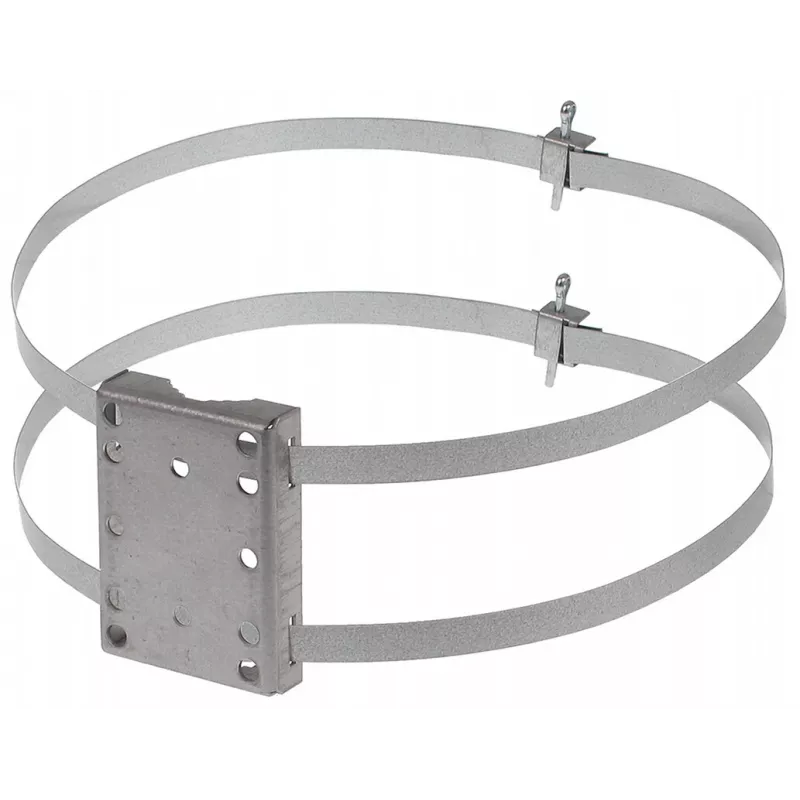

The DELTA BRU-1 Pole Mount Bracket is a robust and versatile mounting solution designed to securely attach devices such as antennas, cameras, sensors, and lighting fixtures to vertical or horizontal poles. Manufactured from electro-galvanized steel, this bracket offers excellent corrosion resistance and durability for outdoor use. The package includes two U-bolts, four M6 nuts, and four M6 washers, providing all necessary hardware for a reliable installation. With a compatible pole diameter range of 30 to 60 mm and a mounting plate measuring approximately 120 x 60 mm, the BRU-1 ensures a stable and secure fit for a wide variety of equipment.

Advantages

The DELTA BRU-1 Pole Mount Bracket is engineered for strength and longevity. Its electro-galvanized steel construction provides superior weather resistance, making it ideal for outdoor environments. The included U-bolts and hardware simplify installation, while the adjustable design accommodates poles of different diameters. The bracket's compact size and multiple mounting holes offer flexibility for different device configurations.

Suitable for

• Mounting antennas on poles
• Securing surveillance cameras to poles
• Attaching sensors and lighting fixtures
• Outdoor installations requiring weather-resistant hardware

Key specifications

• Material: Galvanized Steel (Electro-galvanized)
• Mounting Type: Pole Clamp (U-Bolt)
• Compatible Pole Diameter: 30 – 60 mm
• Number of U-Bolts Included: 2
• U-Bolt Thread Size: M6
• Device Mounting Holes: 4 (6.5 mm diameter)
• Mounting Plate Dimensions: Approx. 120 x 60 mm
• Hole Spacing for U-Bolts (Center-to-Center): Approx. 60 mm
• Hole Spacing for Device Mounting (Center-to-Center): Approx. 40 x 40 mm
• Color: Metallic Silver
• Application Environment: Outdoor
• Included Hardware: 2x U-bolts, 4x M6 Nuts, 4x M6 Washers

Recommendations

For optimal performance, ensure the pole diameter is within the specified range and that all bolts are tightened securely. The bracket is designed for both vertical and horizontal pole orientations. Regularly inspect the hardware for signs of corrosion or loosening, especially in harsh environments.
