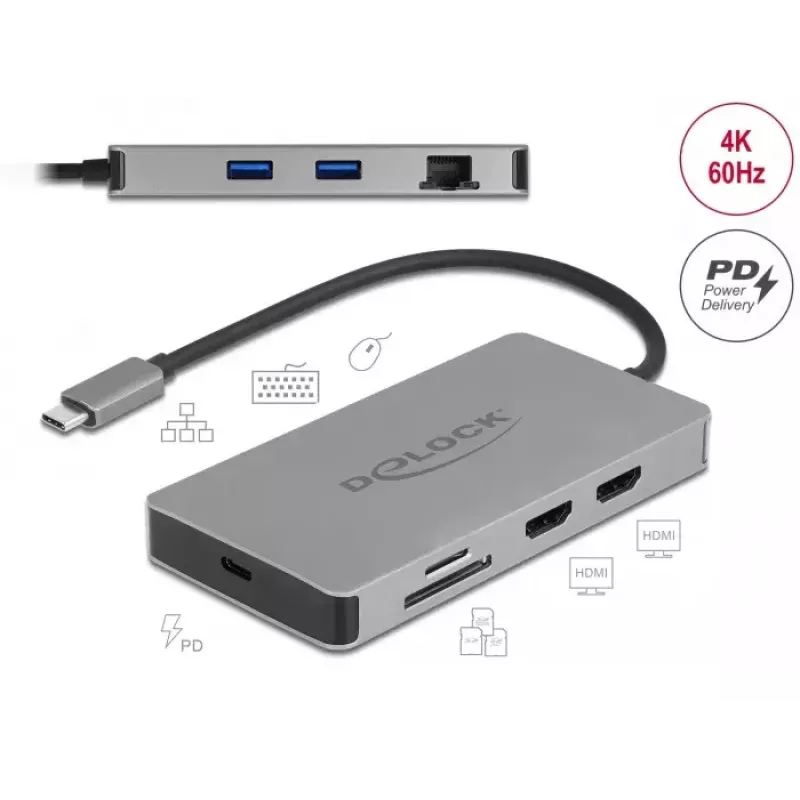

DeLOCK USB Type-C Docking Station 4K Dual HDMI MST USB 3.2 SD LAN PD 3.0

This Delock USB Type-C docking station connects to a computer via a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and expands connectivity with dual HDMI outputs, two USB Type-A 3.2 ports, Gigabit Ethernet and SD / microSD card readers. It supports Multi-Stream Transport (MST) for extended desktop configurations and can deliver up to 85 W via USB Power Delivery (PD 3.0) to charge a connected laptop or tablet. The compact, robust housing makes it suitable for mobile use.

Advantages

The docking station supports two simultaneous HDMI displays with MST, each up to 4K at 60 Hz where the host GPU and connection allow, while also providing high-speed USB 3.2 Gen 1 ports for peripherals and a Gigabit LAN port for stable wired networking. Integrated SD and microSD card readers simplify file transfers. USB Power Delivery up to 85 W enables charging of compatible laptops or tablets through the Type-C PD port. Its small, sturdy grey enclosure is convenient for travel and everyday workspace expansion.

Suitable for

• Expanding a laptop or tablet workspace with two external monitors
• Connecting USB peripherals such as keyboard, mouse and external drives
• Stable wired network access via Gigabit Ethernet
• Transferring photos and files from SD or microSD cards
• Charging a compatible laptop or tablet with USB PD (up to 85 W)

Key specifications

• Brand: DELOCK, Model: 87004 (EAN: 4043619870042)
• Host interface: USB-C with DisplayPort Alt Mode or Thunderbolt 3

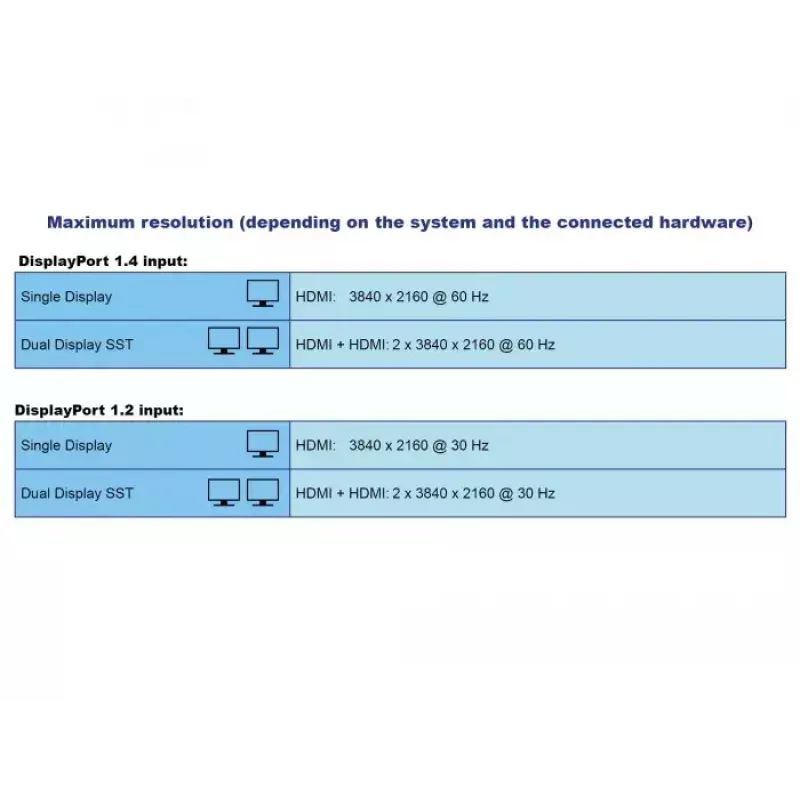

• Display outputs: 2 × HDMI (MST hub, up to 4K 60 Hz per monitor depending on host)
• USB ports: 2 × USB 3.2 Gen 1 Type-A
• Card readers: SD and microSD
• Network: 1 × Gigabit Ethernet (RJ-45)
• Power Delivery: USB PD 3.0 up to 85 W (via USB-C PD port)
• Colour: Grey; Form factor: compact, sturdy housing

How to use

Connect the docking station to a compatible laptop or tablet using the host USB-C / Thunderbolt port that supports DisplayPort Alt Mode. Attach up to two HDMI monitors to the HDMI outputs and configure the display mode on your computer (extended desktop using MST). Plug peripherals into the USB 3.2 Type-A ports, insert SD or microSD cards into the card slots, and connect an Ethernet cable for wired network access. If required, connect a suitable USB-C power adapter to the PD port to charge the host device and provide power to the docking station.

Recommendations

For optimal dual-display performance at 4K 60 Hz per monitor, use a host system with Thunderbolt 3 or a USB-C port with sufficient DisplayPort lanes and ensure the connected power adapter and cables support the required bandwidth and power delivery.
